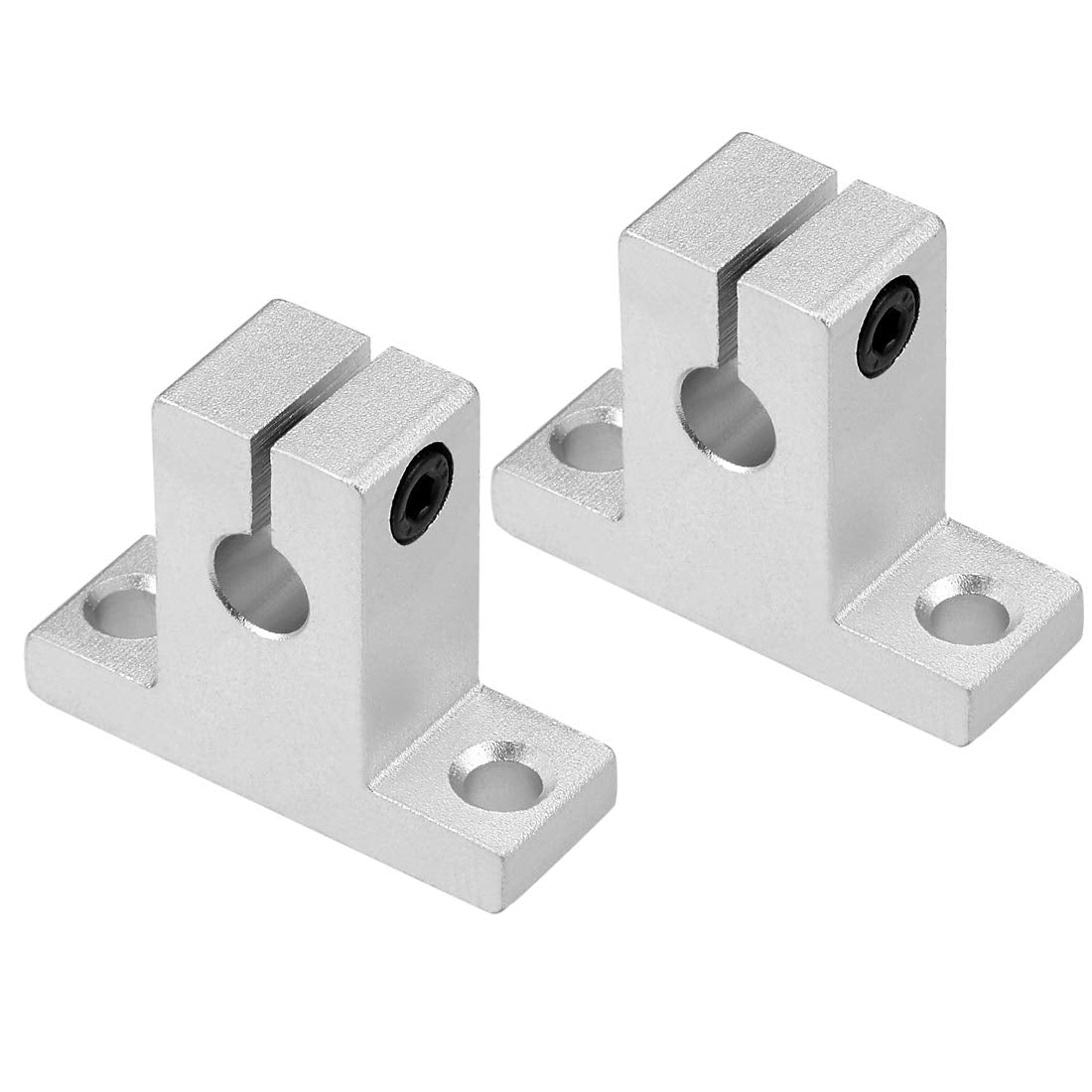

8mm Shaft Support SK8 Linear Motion Slide Rail Guide Blocks for CNC 3D Printer (Pack of 2)

Key Features

• Model SK8. Fits for 8mm Diameter Shaft
• These lightweight shaft supports are easy installing and quick aligning
• Suitable for kinds of electronic equipment/guide bar, and pillar
• Smooth moving, low friction, high rigidity and long working life
• An Suitable solution when used with linear motion rods

Product Description

Description

-Shaft support blocks are used for end or intermittent support where loads are light and slight shaft deflection is not a concern.-Shaft support blocks enable clamping of shafts, remove the need for bolts to maintain shaft position.-Shaft guides are an economic and widely used linear guide system for many applications. -Widely used for digital 3D coordinate measuring equipment such as precision equipment or special machinery industry. Specification:Model: SK8Material: Aluminum AlloyFit Shaft Diameter: 8mmMounting Hole Diameter: 5.5mm / 0.22"Mounting Hole Distance: 32mm / 1.26"Screw Size: M4Overall Size: 42 x 14 x 32.8mm / 1.65" x 0.55" x 1.29" (L*W*H)

Package Content

2 x Shaft Support Blocks
