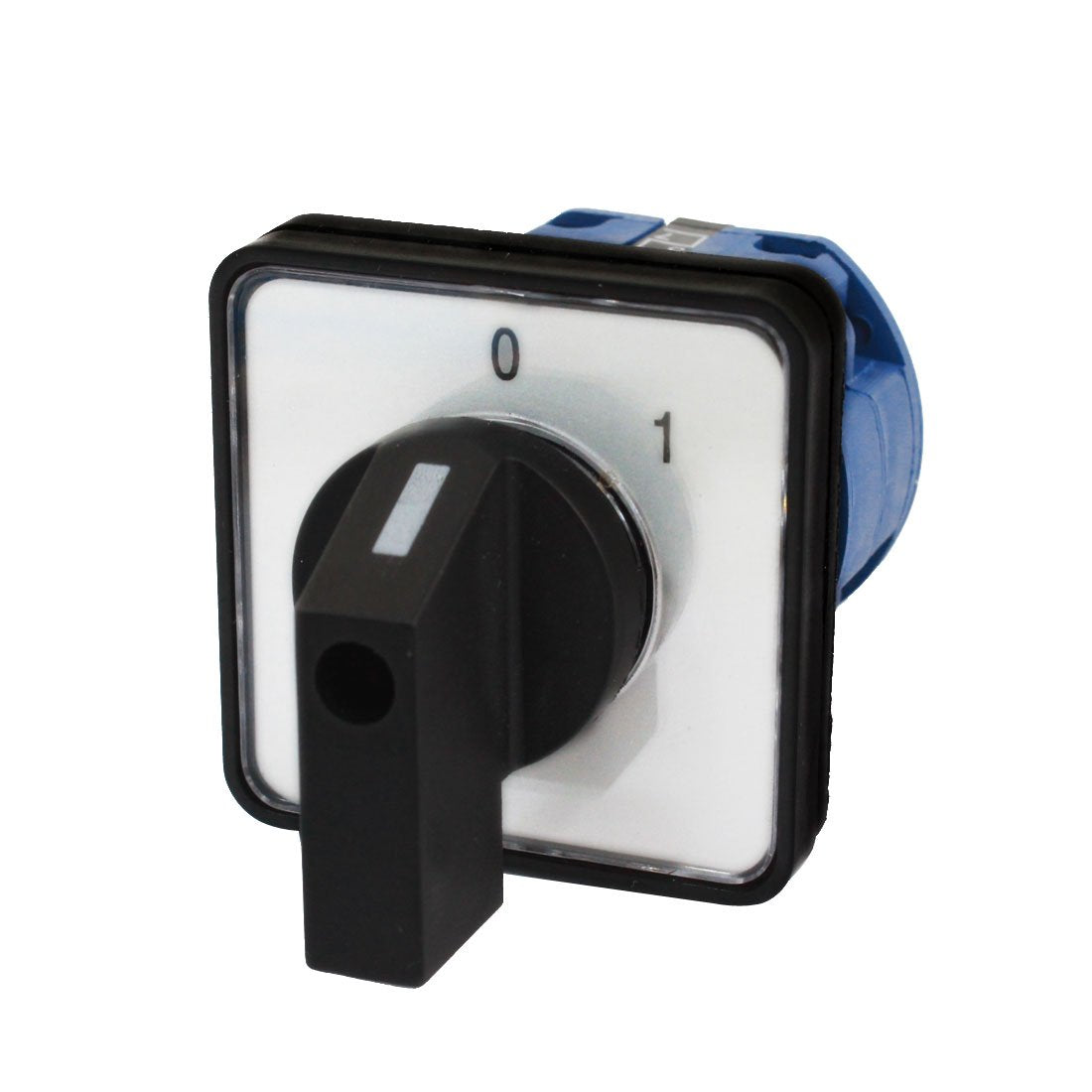

8 Terminal 2 Position Rotary Cam Changeover Switch AC660V 20A

Key Features

• Product Name Universal Changeover Switch;Model No. HZ25D-20;Ui AC 660V
• Ith 20A;Rated IEC VDE AC23-KW AC3-KW AC11 AC21 BS 3Ph 1Ph 3Ph 1Ph A 1th220-240V 3.7 2.5 3 2.2 12 380-440V 7.5 3.7 5.5 3 4 20A 660V 7.5 4 5.5 3 2;Positions 2 Position(0-1)
• Terminal Number 8 Screw Terminals;Panel Size 50 x 50 x 10mm/2" x 2" x 0.4"(L*W*T)
• Overall Size 50 x 50 x 65mm / 2" x 2" x 2.5"(L*W*H);External Material Plastic
• Net Weight 88g;Package Content 1 x Universal Changeover Switch

Product Description

Features

2;positions control and 8 terminals design, the plate and rotary switch cover is detachable. Rotary selector design switch is easy to control, square plate for easily mount. Combination switch mainly suitable for electrical wiring in the power switch and mouse cage Type asynchronous motor start-up, reversing, speed switches, also can make the conversion of the control circuit.

Specifications
