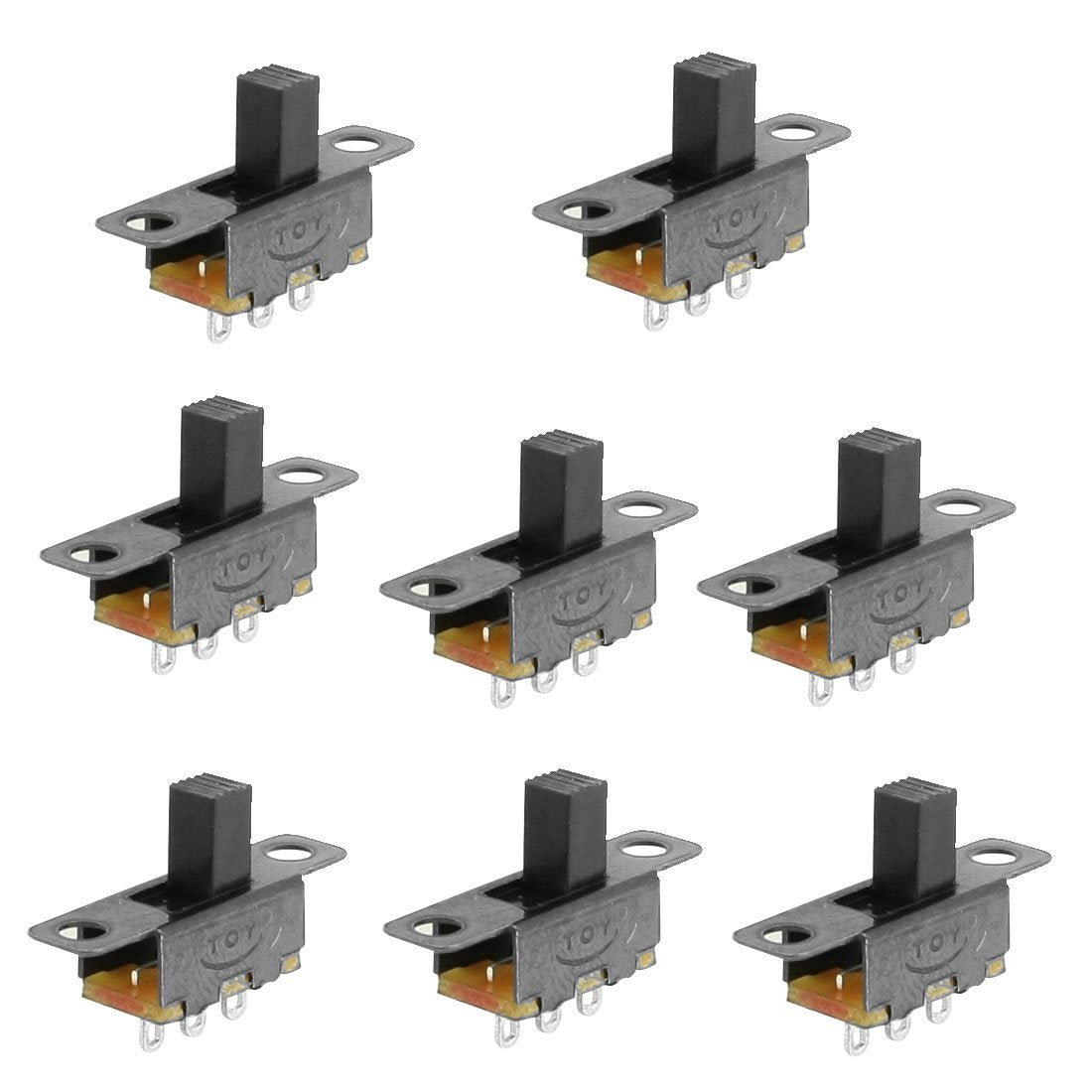

8 Pcs 2 Position SPDT 1P2T Panel Mount Vertical Slide Switch 3 Solder Lug Pin

Key Features

• Product Name Slide Switch;Model SS-12F15G6;Action Type SPDT
• Power DC 50V 0.5A;Terminal Quantity 3;Terminal Length 2mm/ 0.08"
• Contact Resistance 30mΩ Max;Insulation Resistance 100mΩ Min at 500V DC;Withstand Voltage AC 500V for 1 min
• Overall Size 19 x 6 x 13mm/ 0.75" x 0.24" x 0.51"(L*W*H);Knob Size 3 x 3 x 6mm / 0.12" x 0.12" x 0.24"(L*W*H);Material(External) Plastic, Metal
• Main Color Silver Tone, Black;Weight 7g;Package Content 8 Pcs x Slide Switch

Product Description

Features

Easy Structure, Mini Body, 3 Terminal, Single Pole Double Throw, Sliding Knob Actuator.Slide Switch is for changing the circuit by sliding the mini handle of the switch to control the circuit.Widely used to control operation of many small power electronic projects, including volume and other controls for dimmer controls for lights. etc.For use in low power applications.
