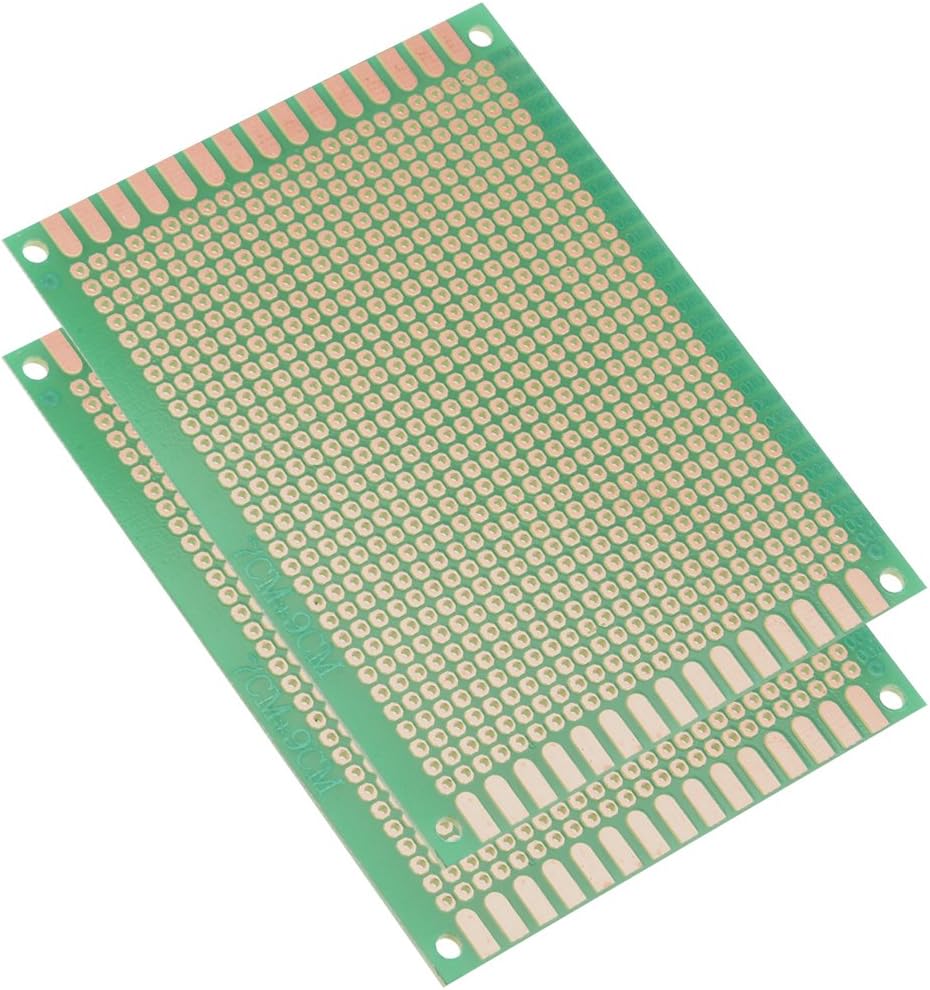

7x9cm Single Sided Universal Printed Circuit Board for DIY Soldering 2pcs

Key Features

• PRODUCT - FR4 Glass Fiber DIY Single-Sided Prototype Board.
• PARAMETERS - ThicknessApprox.1.6mm ; Hole PitchApprox.2.54mm ; Hole DiameterApprox.1.0mm ; DimensionApprox. 7x9 cm / 2.7x3.5 inch (W x L); Hole (row x column) 30 x 24.
• FEATURES - The proto boards are thick and single sided. The plated holes are pre-coppered and very solid which make them very easy to solder components on.
• APPLICATION - Solderable PCB enables you to transfer your circuit and wires from a plug-in breadboard without recutting wires or changing your layout.Suitable for point to point DIY soldering.
• PACKAGE CONTENT - 2pcs x Universal PCB Board

Product Description

SpecificationsDimension : 7x9 cm / 2.7x3.5 inch (W x L)Hole ( row x column ) : 30 x 24Material : glass fiber FR4Thickness : approx. 1.6mmHole Pitch : approx. 2.54 mmHole Diameter : approx. 1 mmMounting Hole Diameter : approx. 3 mmColor : green basic,Brown tone

Package content

2 pcs x Universal PCB Board
