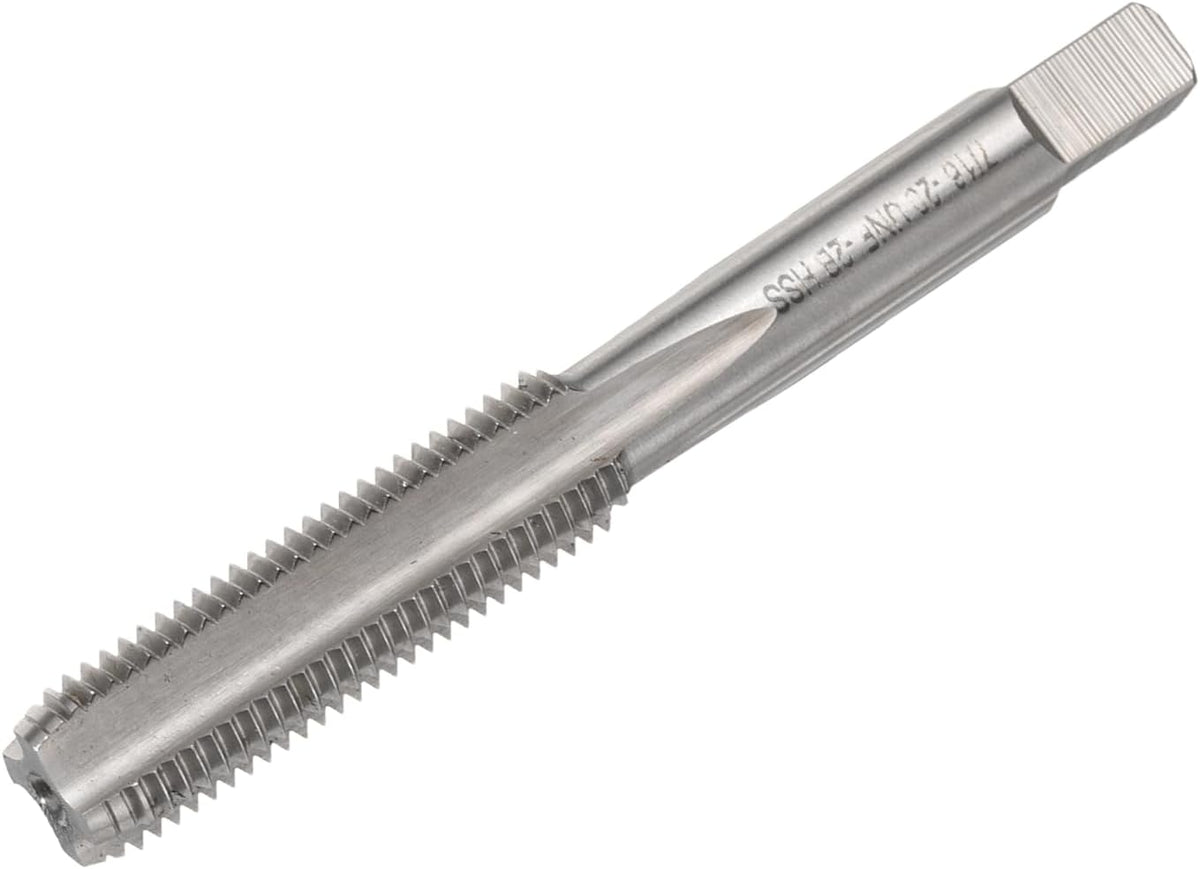

7/16-20 UNF B2 Spiral Point Thread Tap, Screw Tap Threading Tapping Tool, High Speed Steel Machine Taps Tapping Bit

Key Features

• Spiral Point Tap Size Thread Size 7/16-20 UNF, Shank Side Width 6mm / 0.24 inch, Thread Length 26mm / 1.02 inch, Total Length 80.5mm / 3.2 inch, Accuracy B2
• 6542 (M2) High Speed Steel Made of high-speed steel, the tapping bit has high hardness, toughness and wear resistance, and can stably remove chips during cutting. Uncoated taps only have a base substrate, which is very suitable for a wide range of applications.
• Features Thread tapping bit features spiral point, plug chamfer and right hand thread cutting. Straight groove taps can remove chips downward, with clear threads and sharp cutting edges, ensuring fast and accurate tapping. The grooves on the tap facilitate the removal of chips and debris from the hole.
• Applications Screw tap can be used for drilling and tapping of stainless steel, aluminum, cast iron, alloy steel, ordinary steel, non-ferrous metals, hard plastics, etc. Suitable for drilling machines, tapping machines, CNC machine tools and milling machines. Use with tapping oil to improve processing accuracy and reduce the probability of breakage.
• Tips It is recommended to use a machine tap with a tap chuck with overload protection function. The tapping angle should be 90 degrees vertical and stable, and the tapping depth should not exceed 1.5 times the tap diameter.

Product Description

Description

Made of high-speed steel, the tapping bit has high hardness, toughness and wear resistance, and can stably remove chips during cutting. Uncoated taps only have a base substrate, which is very suitable for a wide range of applications.Thread tapping bit features spiral point, plug chamfer and right hand thread cutting. Straight groove taps can remove chips downward, with clear threads and sharp cutting edges, ensuring fast and accurate tapping.Screw tap can be used for drilling and tapping of stainless steel, aluminum, cast iron, alloy steel, ordinary steel, non-ferrous metals, hard plastics, etc. The grooves on the tap facilitate the removal of chips and debris from the hole.Suitable for drilling machines, tapping machines, CNC machine tools and milling machines. The speed is controlled according to the hardness of the material. The higher the hardness, the slower the speed. Use with tapping oil to improve processing accuracy and reduce the probability of breakage.It is recommended to use a machine tap with a tap chuck with overload protection function. The tapping angle should be 90 degrees vertical and stable, and the tapping depth should not exceed 1.5 times the tap diameter.Specification:Thread Size: 7/16-20 UNFShank Side Width: 6mm / 0.24 inchThread Length: 26mm / 1.02 inchTotal Length: 80.5mm / 3.2 inchAccuracy: B2Material: HSS 6542 (High Speed Steel 6542)Finish: Uncoated

Package Content

1pcs x Spiral Point Thread Tap
