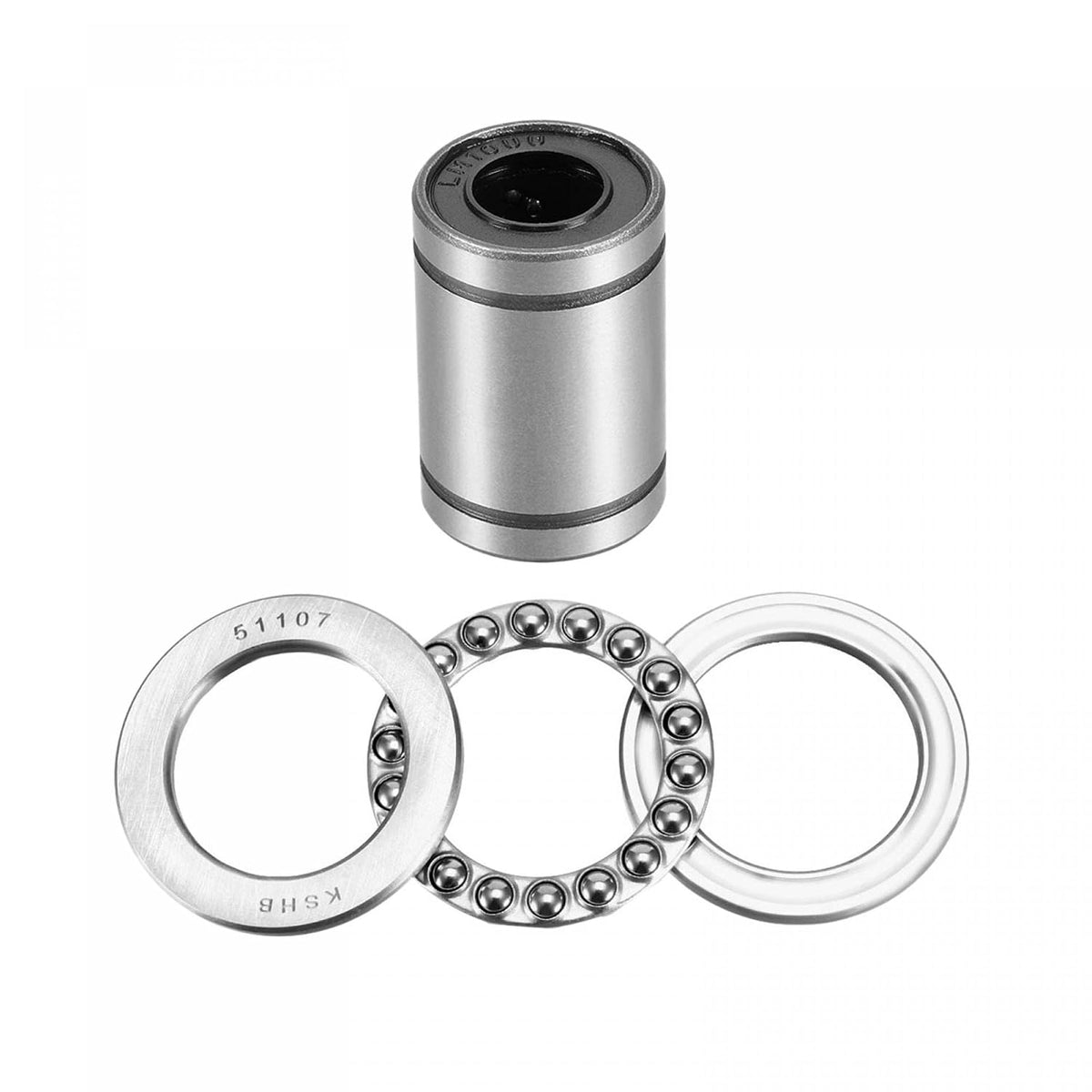

6pcs 51107 Single Direction Thrust Ball Bearings LM10UU Linear Ball Bearings

Key Features

• Size - 51107 (Bore Diameter=35mm, Outer Diameter=52mm, Thickness=12mm); LM10UU (Bore Diameter=10mm, Outer Diameter=19mm, Thickness=29mm)
• Material - Made of Chrome Steel(AISI 52100), have great wear-resistant, high temperature resistance and high hardness; Steel cage
• Capability - 51107 (Dynamic Load Rating (Cr) 20.4kN; Static Load Rating (Cor) 44.7kN; Limiting Speed (Grease) 3900rpm, designed for low speed operation and axial loads only); LM10UU (Static Load Capacity (Cor) 373N, Dynamic Load Capacity (Cr) 549N, Recommended load is 80% of rated load, not to exceed rated load.)
• Features - The separable components of thrust ball bearings are interchangeable. Low noise and long service life, easy to maintain. Keep the bearing working environment clean and bearing lubricated in time
• Package Content - 2pcs x Thrust Ball Bearings, 4pcs x Linear Ball Bearings

Product Description

Description

The separable components of thrust ball bearings are interchangeable.Thrust Ball Bearings consist of a shaft washer, a housing washer and a ball and cage assembly.They are designed to accommodate locate a shaft axially, in one direction only.Chromium Steel (GCr15) Shaft and Housing Washer provide high and uniform hardness, good wear resistance.Linear bearings are widely used in electronic equipment, tensile testing machines and digital three-dimensional coordinate measuring equipment and other precision equipment, as well as multi-axis machine tools, punch presses, tool grinding machines, printers and other industrial machinery sliding.Specification:Thrust Ball Bearings:Model: 51107Shaft/Housing Washer Material: Chromium Steel (GCr15) Bearing Ball Material: Chromium Steel (GCr15)Cage Material: Stamping SteelBore Diameter: 35 mmOuter Diameter: 52 mmThickness (B): 12 mmDynamic Load Rating (Cr): 20.4kNStatic Load Rating (Cor): 44.7kNLimiting Speed (Grease): 3900rpmLimiting Speed (Oil): 6000rpmAccuracy Class: P5Linear Ball Bearings:Model: LM10UUBearing Ball Material: Chrome SteelHousing Material: Chrome SteelCage Material: NylonInner Diameter: 10mmOuter Diameter: 19mmTotal Length: 29mmBall Circuit: 4Static Load Capacity (Cor): 373NDynamic Load Capacity (Cr): 549N

Package Content

2pcs x Thrust Ball Bearings4pcs x Linear Ball Bearings
