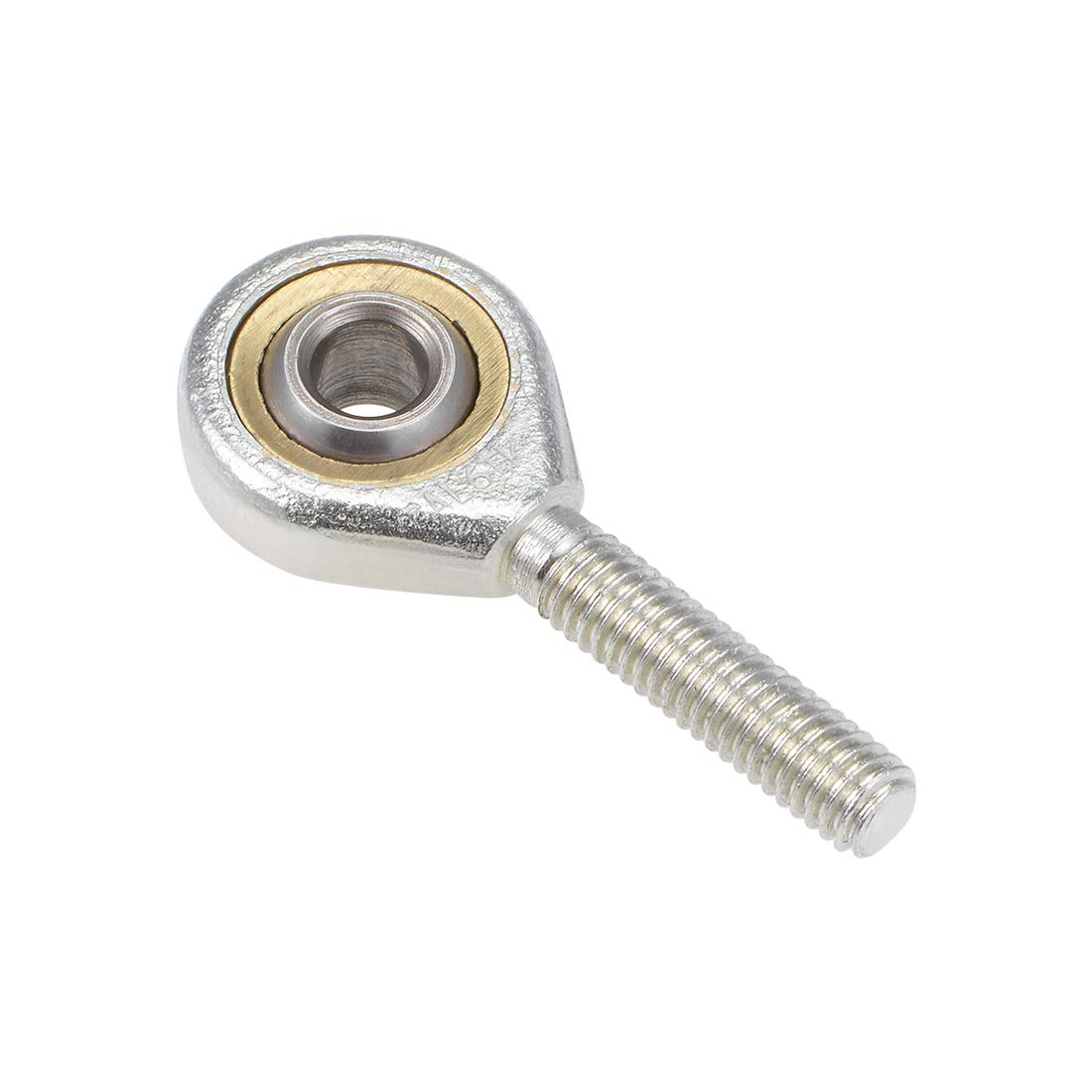

6mm Rod End Bearing M6x1.0 Rod Ends Ball Joint Male Left Hand Thread

Key Features

• SAL6T/K 6mm Bore x M6x1.0mm External Left-Hand Threads
• Spherical rod end bearing for transferring motion between widely separated points, Widely used in engineering hydraulic cylinders, forging machine tools, automation equipment, and so on
• Machined carbon steel housing and male shank with left hand threads
• Bronze race and hardened, chrome-plated steel ball for strength and resistance to wear and corrosion
• Self-aligning, large load rating, low noise, anti-corrosion, tough and durable. The bearing steel ball and the copper ring are locked and squeezed so that they will not fall off.

Product Description

Description

-Rod end bearing, is used on the ends of control rods, steering links, tie rods, or anywhere a precision articulating joint is required.-A ball swivel with an opening through which a bolt or other attaching hardware may pass is pressed into a circular casing with a threaded shaft attached.-The housing is made of machined low carbon steel that is plated for corrosion resistance.-Rod end bearings are used on the ends of cylinders or linkages to take up misalignment between two connected parts Specification:Bearing No.: SAL6T/KMaterial: Carbon Steel, Chrome SteelThread Type: Male (External) Thread, Left HandThread Size: M6x1.0mmBore Diameter: 6mmThrough Bore Length: 9mmDynamic Load Ratings: 7.2kNStatic Load Ratings: 7.65kN

Package Content

1Pack
