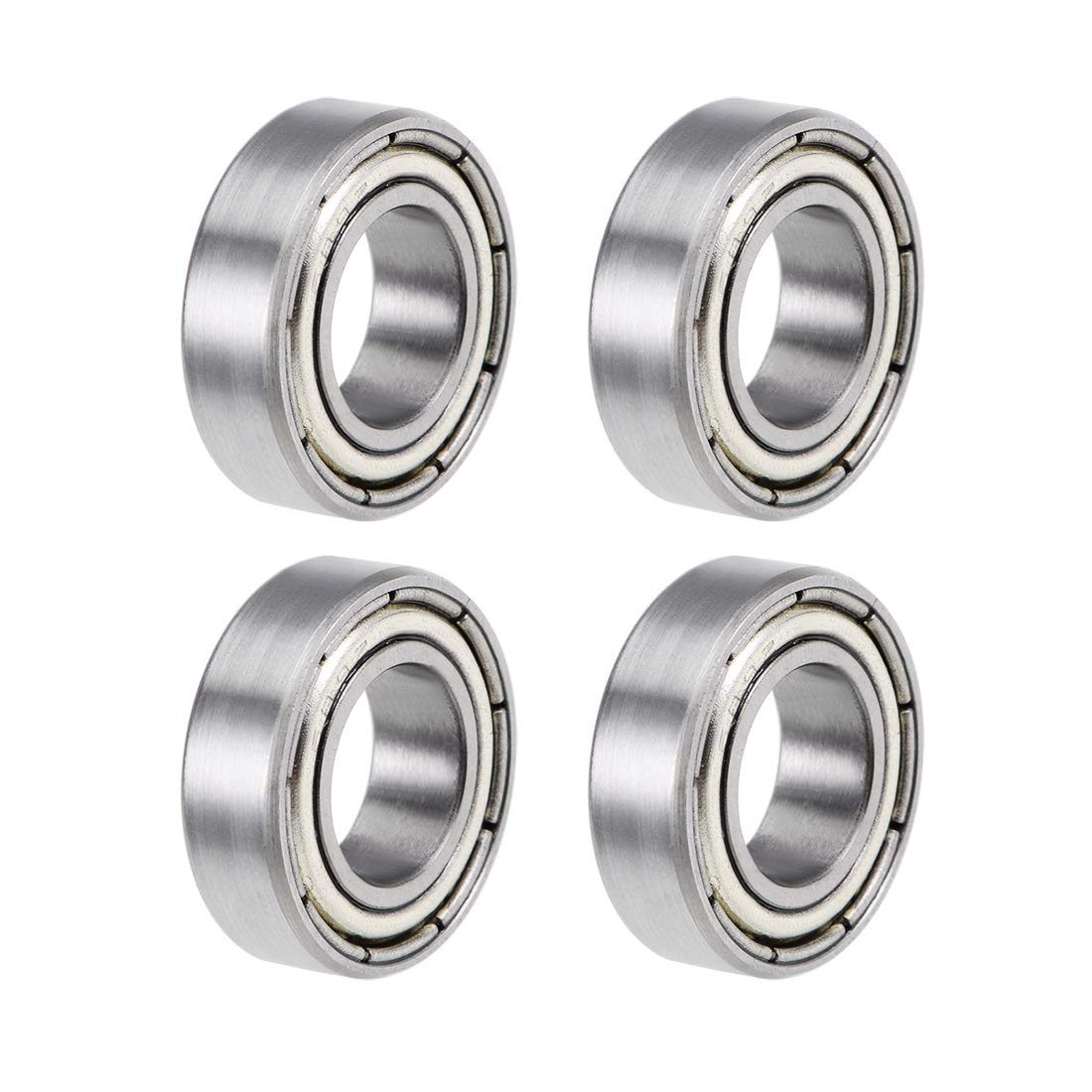

689ZZ Deep Groove Ball Bearings Z2, 9mm x 17mm x 5mm Double Shielded Carbon Steel 4pcs

Key Features

• 689ZZ (I.D.=9mm, O.D.=17mm, Thickness=5mm)
• 689-2Z bearings are shielded on BOTH SIDES to keep lubricant in
• Made from Carbon Steel, durability and resistance to deformity under heavy loads
• ABEC Tolerance 1 (P0), Z2 Noise Level for most general use
• Static load rating of 534 newtons and dynamic load rating of 1128 newtons

Product Description

NOTE：Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.

Description

Single-row, pre-lubricated, normal accuracy.Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.Carbon Steel bearings are better in toughness than chrome steel bearings after quenching. These cost-effective bearings are widely used in areas with low requirements for Mohs hardness.Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on. Selecting Guide:Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced NBR (oil- and liquid-resistant). Lower limit speed than Shield Bearings. Specification:Model: 689ZZSeal Type: Double ShieldedInner Race/Outer Race Material: Carbon SteelCage Material: Stamping SteelInner Diameter (d): 9mmOuter Diameter (D): 17mmThickness (B): 5mmDynamic Load Rating (Cr): 1128NStatic Load Rating (Cor): 534NAccuracy Class: P0 (ABEC-1)Noise Level: Z2Number of Pack: 4 Pcs
