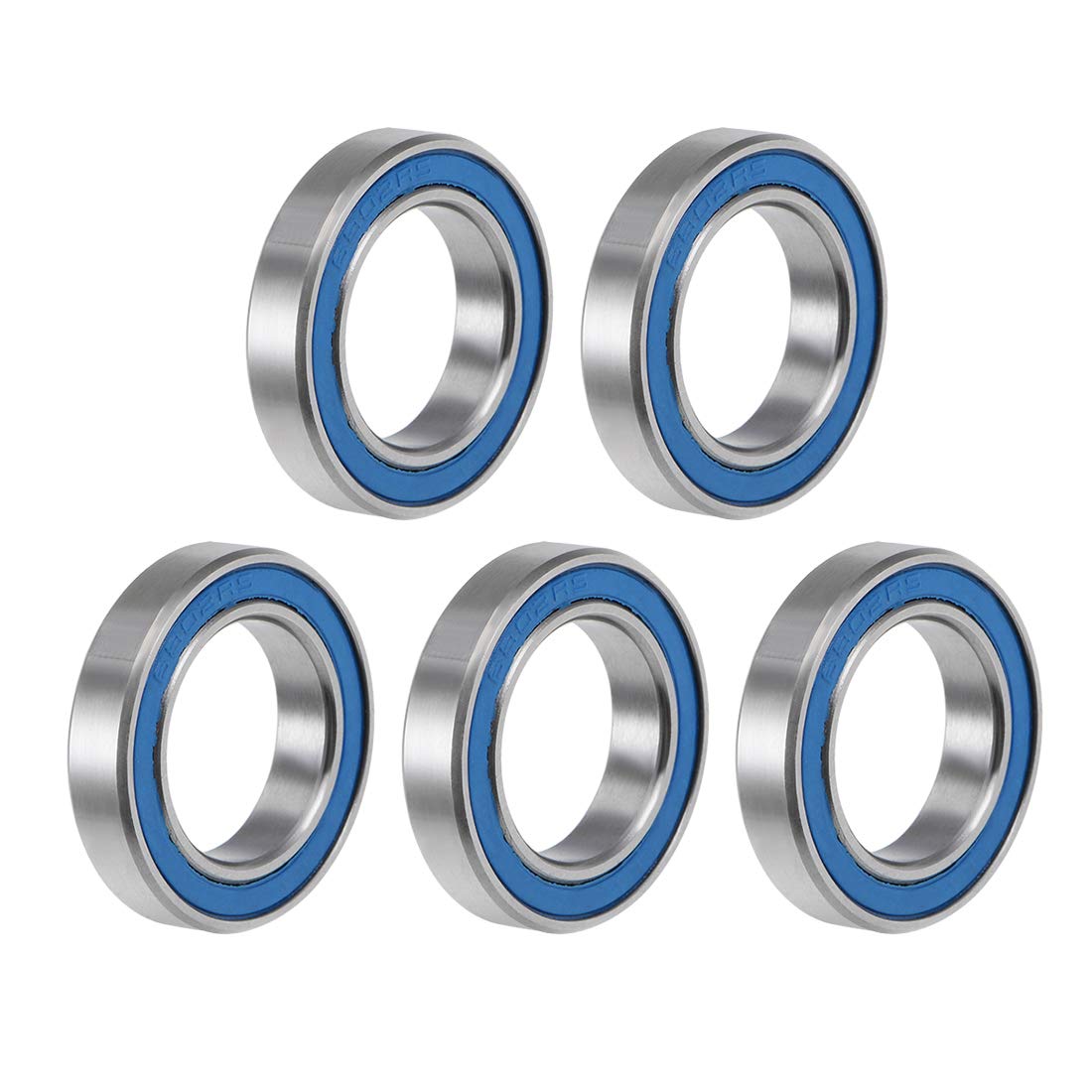

6802-2RS Deep Groove Ball Bearing 15x24x5mm Double Sealed ABEC-3 Bearings 5-Pack

Key Features

• 6802-2RS (I.D.=15mm, O.D.=24mm, Thickness=5mm)
• 6802rs bearings are sealed on BOTH SIDES to keep lubricant in
• Chromium Steel long-life bearings, smooth and low noise
• ABEC Tolerance 3 (P6), Z1 Noise Level for most general use
• Static load rating of 1300 newtons and dynamic load rating of 2100 newtons

Product Description

NOTE：Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.

Description

Single-row, pre-lubricated, normal accuracy.Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance.Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.Selecting Guide:Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.Specification:Model: 6802-2RSSealed Type: Double SealedInner Race/Outer Race Material: Chrome Steel (GCr15)Cage Material: Stamping SteelInner Diameter (d): 15mmOuter Diameter (D): 24mmThickness (B): 5mmDynamic Load Rating (Cr): 2.1kNStatic Load Rating (Cor): 1.3kNAccuracy Class: P6 (ABEC-3)Noise Level: Z1Number of Pack: 5 Pcs

Specifications
