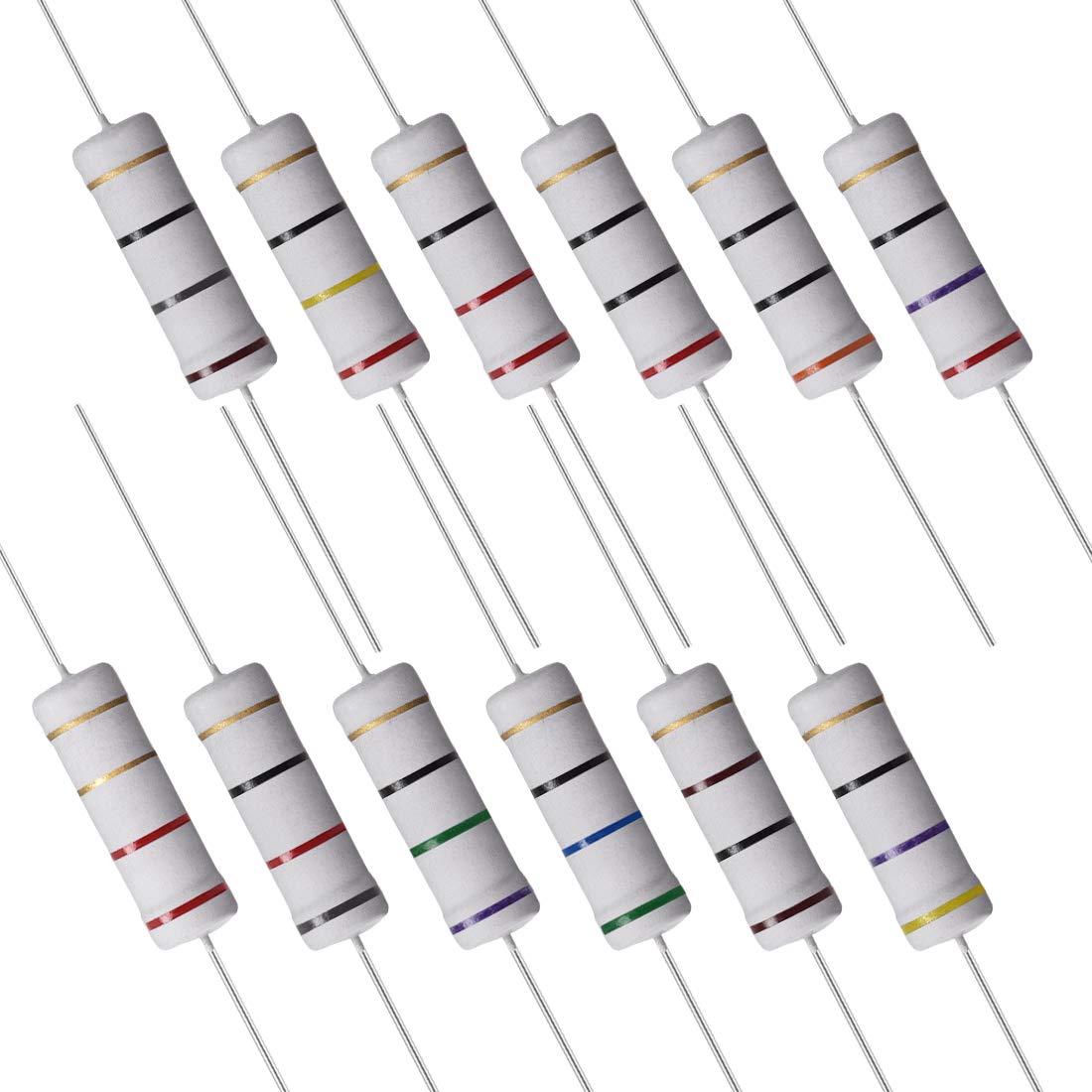

60 Pcs 5W Metal Oxide Film Resistor 18R,20R,22R,24R,56R,75R,82R,100R Ohm +/-5%

Key Features

• Metal oxide film resistors exceed the performance of metal film and carbon film for the following properties operate at higher temperatures; produce low noise; small size; high stability; high reliability.
• The metal oxide film resistors have 5% tolerance. The temperature coefficient is around -55℃～155℃.
• The metal oxide film resistor is made by coating the ceramic core with metal oxide The antimony oxide is added to the tin oxide to increase its resistivity.
• Rated Power5 W;Maximum working voltage500V;Maximum overload voltage1000V;Maximum pulse voltage1500V;Dielectric withstanding voltage700V;Operating temperature range-55℃～155℃;Resistance Tolerance (%)5%;
• NotedDifferent Resistance on this listing, please check what you need correctly before purchasing.

Product Description

Features

Metal oxide film resistors exceed the performance of metal film and carbon film for the following properties: power rating, voltage rating, overload capabilities, surges and high temperatures.The metal oxide film resistors have 5% tolerance. The temperature coefficient is around -55℃～155℃.The resistance material for metal oxide resistors is tin oxide that is contaminated with oxide, this is to increase the resistivity. Metal oxide resistors can withstand higher temperatures than carbon or metal film resistors.Noted:Different Resistance on this listing, please check what you need correctly before purchasing. Specification： Rated Power:5 W;Maximum working voltage:500V;Maximum overload voltage:1000V;Maximum pulse voltage:1500V;Dielectric withstanding voltage:700VOperating temperature range:-55℃～155℃;Resistance Values (Ohm):18R,20R,22R,24R,27R,30R,39R,47R,56R,75R,82R,100R;Resistance Tolerance (%):5%;Packaging:Axial;Body Size:24.5±2.0 mm x 8.0±1.0 mm（LxD)Total Length:86.5±5.0mm;Lead Wire Size:31±5mm x 0.7±0.1mm(LxD) Package Content： 60 Pcs x Metal Oxide Film Resistor
