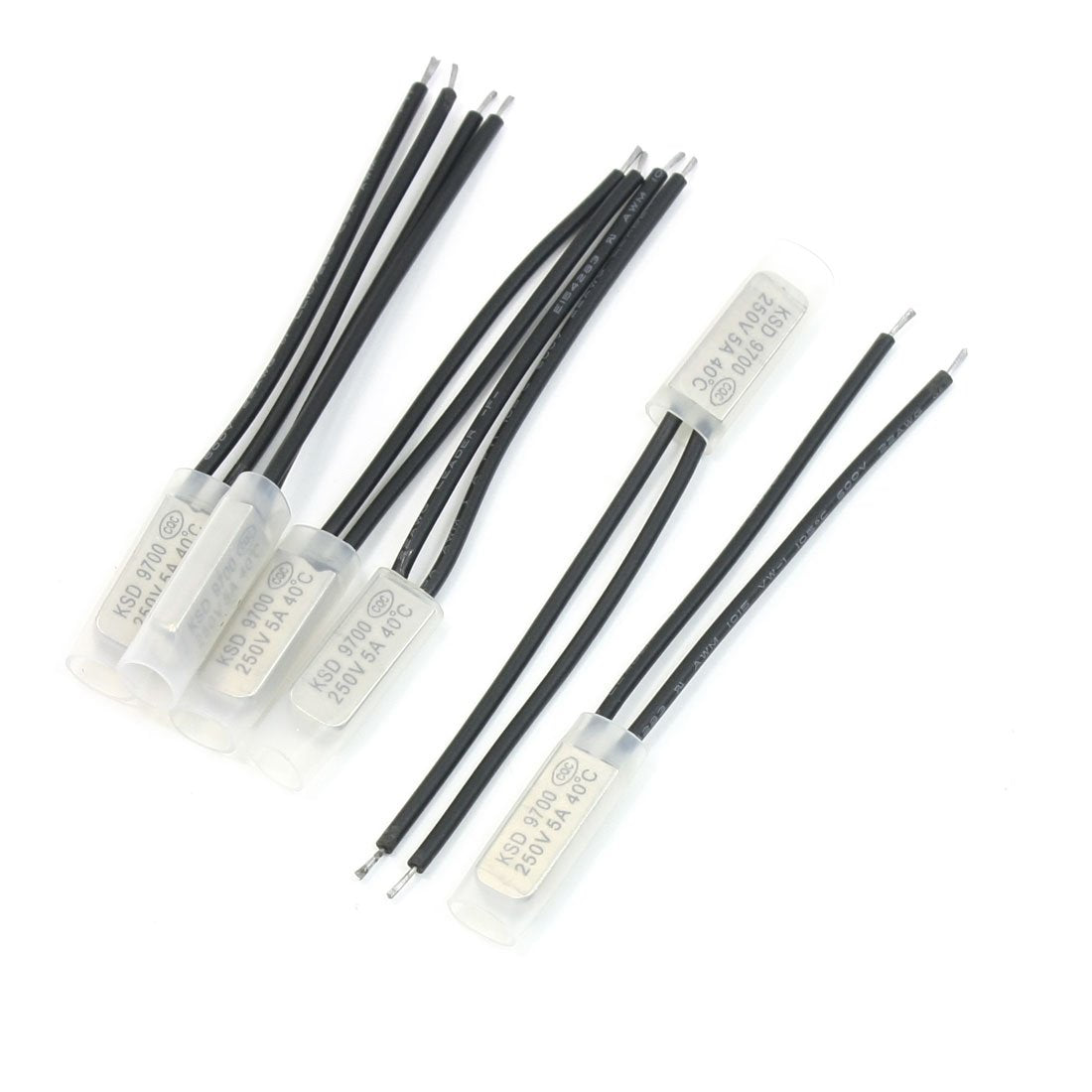

6 x Bimetal Temperature Switch Thermostat 40 Degree Celsius NC KSD 9700

Key Features

• Product Name Temperature Switch;Model.No KSD9700
• Material Bimetal ,Plastic,Stainless Steel;Contact NC,(Normally Closed)
• Rated Power 250V 5A;Active Temperature 40°C
• Lead Wire Length 7cm / 2.8";Head Dimension 20 x 8 x 3mm/0.78" x 0.31" x 0.12"(L*W*T)
• Net Weight 22g;Package Content 6 x Temperature Switch

Product Description

KSD9700 product is a kind of thermostat which adopt the bimetal head as the temperature sensing element. The bimetal head is in free state and the contacts are closed when the electrical appliance is working in normal condition.Widly used in home appliance's motor and electrical equipment, such as air conditioner motor, transformer, thermal appliances, etc. Precautions : 1. Never collapse or deform the plastic or metal shell so as not to affect the performance. 2.It is not suitable for air temperature sensing, only applies to contact sensing. 3. Metal shell case is conductive which needs to be used with the insulating sleeve. The insulating sleeve is aim to electrically isolated and protect from electrical leakage so please keep the insulating sleeve stay in place. 4. When installation, the Thermostat shall be clingy with the equipment surface to avoid inaccurate temperature sensing.
