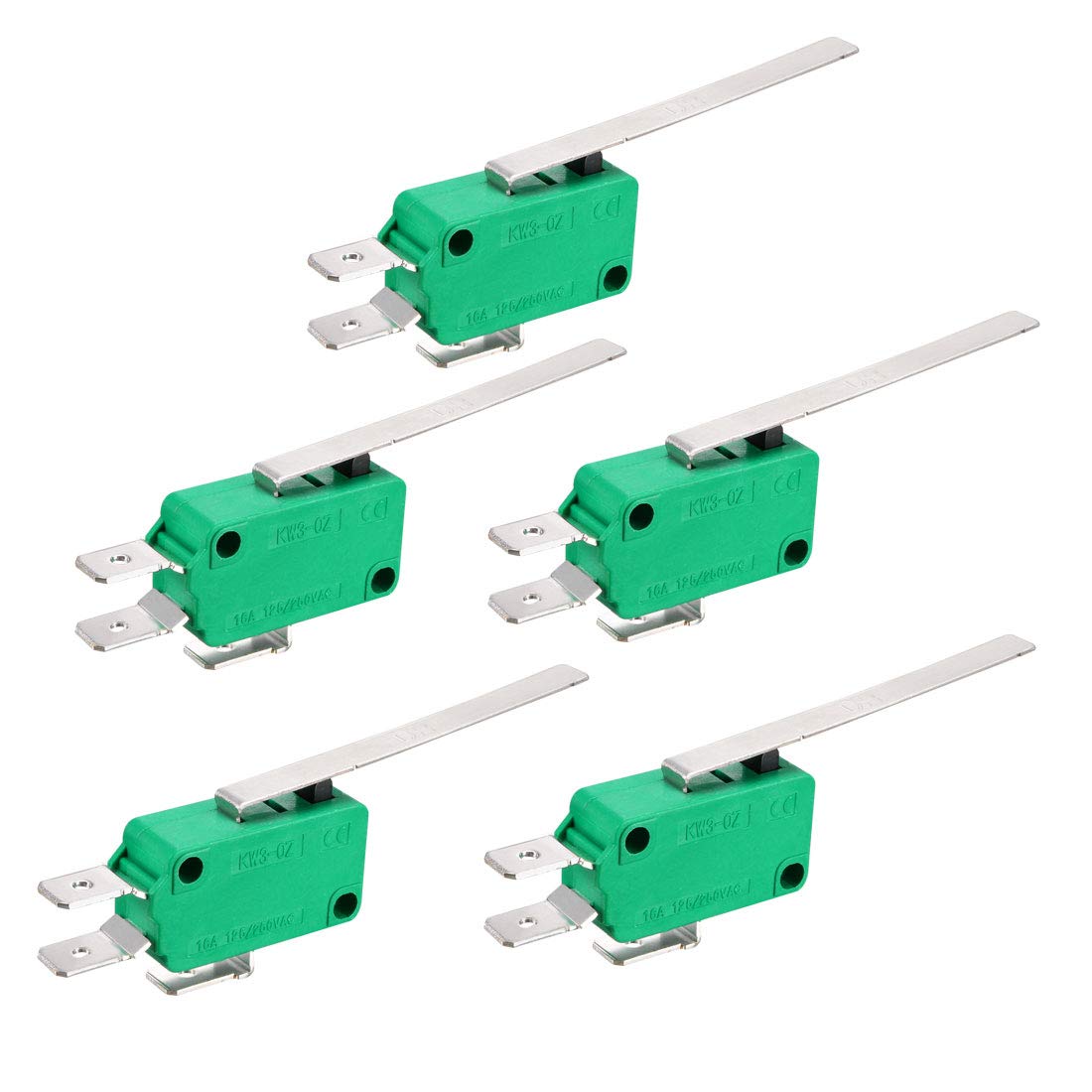

5PCS KW3-OZ 16A 125/250VAC Long Straight Hinge Lever Type SPDT NO NC Micro Limit Switches
Key Features
- Rating Load 16A 125/250VAC. And the contact type is SPDT NO+NC
- 3 pins, applicable to AC DC control circuits.Reliable for years
- High precision design, use easily.Designed to control the movement of a mechanical part.
- IP 40 Protection Degree. Which means this switch is available to tools & small wires (>1mm)
- Widely used in appliances, electronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool, etc.
Product Description
FeaturesOffers long service and operations life.Small contact gap, snap action, high sensitivity, and small operating travelWidely used in appliances, electronic equipment, automatic machine, communication equipment, electric, apparatus and instrument, electro motion tool, etc. SpecificationRating Load: 16A 125/250VACOperation speed: 0.1mm-1m/sContact resistance: 15m Ohm max. (initial)Insulation resistance: 100m Ohm min. (at DC500V)Dielectric strength: 1,000 VAC 50/60 Hz for 1minuteLife: 100,000 operations min. full load (Electrical); 10,000,000 operations min.(Mechanical)Operating temperature: -25~+80°CContact Form: SPDT NO+NCPin number: 3Overall size: 76x22x10mm/2.99x0.87x0.39inch(L*W*H)Total weight: 43g Package Content5 x Micro switch
Specifications
| Product Dimensions | 2.76 x 1.57 x 1.57 inches |
