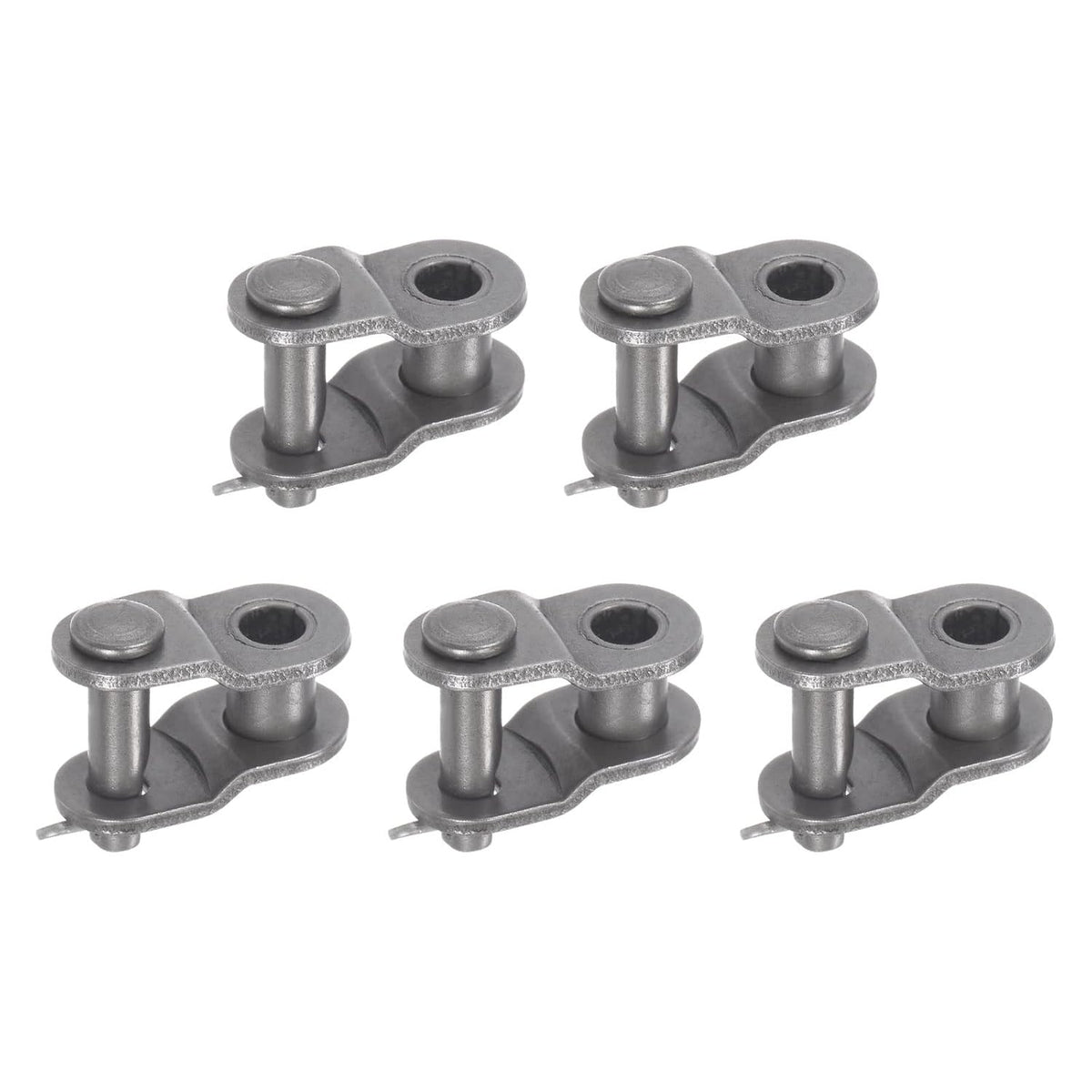

5Pcs #35 Chain Offset Half Link Roller, 3/8" Pitch Carbon Steel, Standard Chain End Connector Split Links for 06C Chain

Key Features

• Specifications Chain No. 06C(#35); Total Length 17.5mm / 0.69-inch; Roller Diameter 5.08mm / 0.2-inch; Pin Length 13.1mm / 0.52-inch; Pin Diameter 3.58mm / 0.14-inch; Inner Plate Depth 8.7mm / 0.34-inch; Pitch 3/8-inch / 9.525mm; Width Between Inner Plates 4.77mm / 0.19-inch; Average Tensile Strenght10.8kN; 5 x Connector Offset Half Link Roller
• Material Made of carbon steel materials, finely processing, precision processing, strong, anti-oxidation, and durable.
• Appliance This chain link roller connector is Easy for drive chains. Regular cleaning and lubrication can extend service life.
• How to Use You can use appropriately sized circlip pliers to take apart the old chain link roller and remove it from the chain. To install the new chain joint, insert the pin first, then snap the spring clip in. Wear gloves carefully for safety.
• Note Please pay attention to the size and model before ordering.

Product Description

Specifications

Chain No.: 06C(#35); Total Length: 17.5mm / 0.69-inch; Roller Diameter: 5.08mm / 0.2-inch; Pin Length: 13.1mm / 0.52-inch; Pin Diameter: 3.58mm / 0.14-inch; Inner Plate Depth: 8.7mm / 0.34-inch; Pitch: 3/8-inch / 9.525mm; Width Between Inner Plates: 4.77mm / 0.19-inch; Average Tensile Strenght:10.8kN; 5 x Connector Offset Half Link Roller Material: Made of carbon steel materials, finely processing, precision processing, strong, anti-oxidation, and durable. Appliance: This chain link roller connector is Easy for drive chains. Regular cleaning and lubrication can extend service life.

How to Use

You can use appropriately sized circlip pliers to take apart the old chain link roller and remove it from the chain. To install the new chain joint, insert the pin first, then snap the spring clip in. Wear gloves carefully for safety.

Note

Please pay attention to the size and model before ordering. ›
