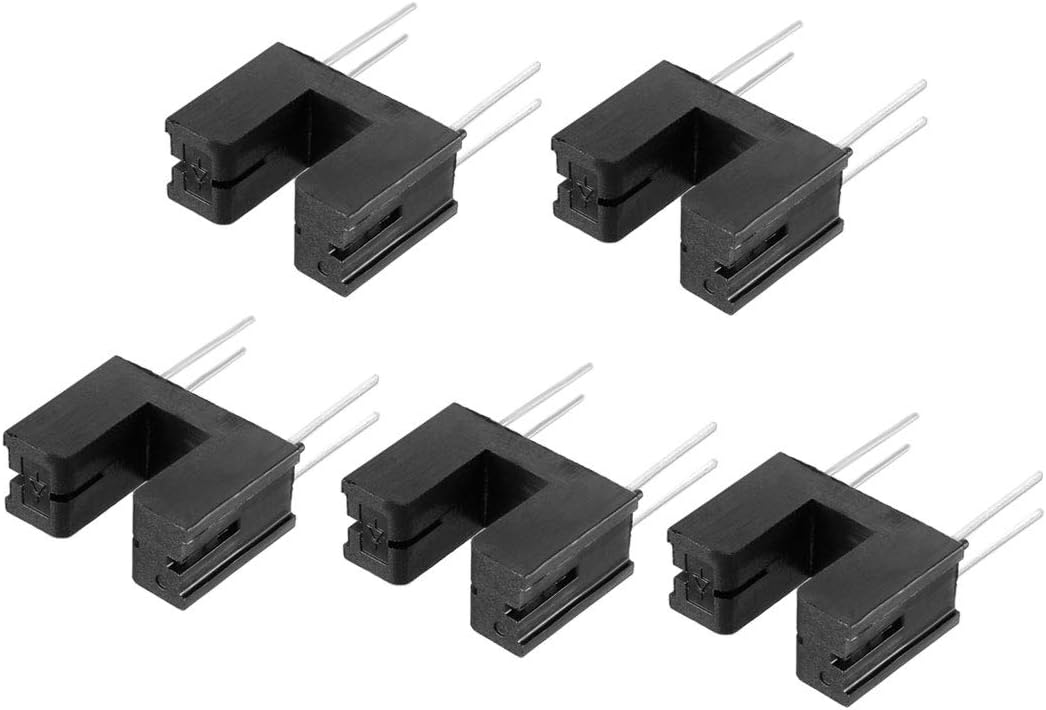

5Pcs 13/64" DIP-4 Groove Type Optical Coupling Reflective Infrared Photoelectric Sensor

Key Features

• Model ITR9606
• Detection distance 5mm
• Package Content 5pcs x Photoelectric Switch
• Black Head Size 13 x 10 x 6mm/0.51" x 0.4" x 0.24(L*W*T)
• The transmitter is a gallium arsenide infrared light emitting diode, and receiver is a high sensitivity, silicon plane photoelectric triode.

Product Description

Description

ITR9606 is a kind of integration reflection type photoelectric detector.Mainly used in the game, copy machines and office automation, equipment.The transmitter is a gallium arsenide infrared light emitting diode, and receiver is a high sensitivity, silicon plane photoelectric triode. Specification:Product Name:Photoelectric SensorModel: ITR9606Net Weight :5gColor : BlackMaterial : Plastic, MetalDetection Distance：5mmWorking Voltage:DC 5V(Max)Output Type: Photo TransistorOutput: 20mA(Max)Number of Pins: 4Pin Length: 10.6mm/0.41"Groove Width: 5mm/0.2"Total Length :20mm/0.79''Black Head Size: 13 x 10 x 6mm/0.51" x 0.4" x 0.24(L*W*T)

Package Content

5pcs x Photoelectric SensorDetection distance is not adjustableDetection distance: 5mmDetection object ：opaque objects
