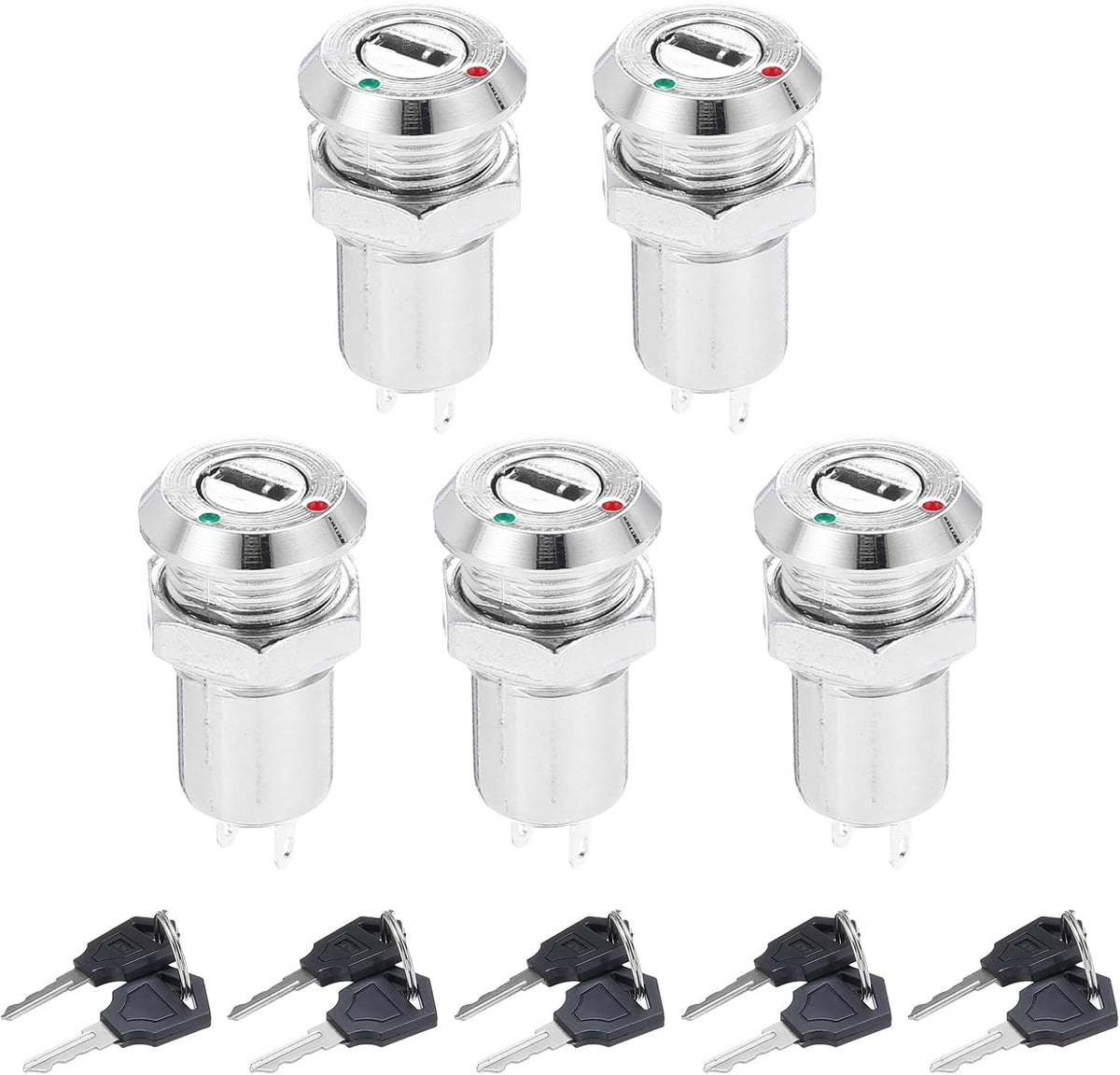

5Pcs 11.5mm 2 Positions NO NC Electric Key Lock Push Button Switch S1203

Key Features

• 1.Material Plastic,Metal; Net Weight 15g; Package Content 5 x Key Push Button Switch / 10 x Keys / 5 x Screw Nut
• 2.Main Color Silver; Overall Size(Approx) 23.6 x 14.2mm / 0.93" x 0.56" (L*W); (Rated) Voltage & Current AC 250V/0.5A
• 3.Operation Type Locking; Contact Type 1NO 1NC; Light Voltage no light include;Model s1203 ; 2 positions can pull out the key
• 4.Mounting Hole Dia 11.5mm / 0.45"; Position 2; Terminals Quantity 2
• 5.Installation Method Welding; Country of Manufacture CHINA

Product Description

Description

Keys can be taken off when the switch stays on or off position.Miniature key lock switch for simple locking and switching tasks.

Note

This KEY design is not for security reasons, it is just a design to prevent unintentional switching--to actuate the switch you have to insert a key into the switch instead of push a button which anybody could do by mistake, in some cases one key lock switch may be open by the key of another set,if you buy more than one set , please note we can not ensure every key lock has its unique keys.

Specifications
