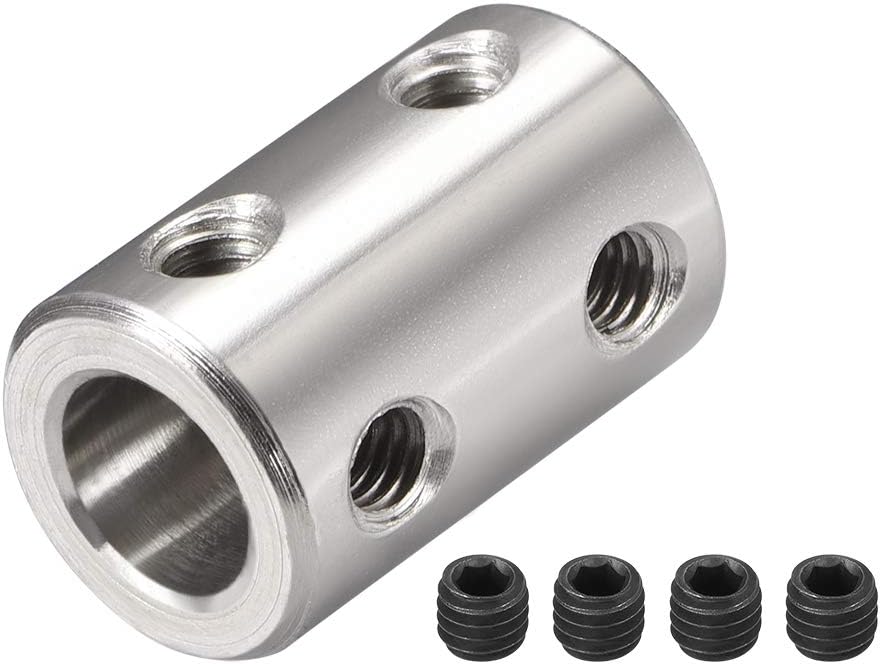

5mm to 8mm Bore Rigid Coupling Set Screw L22XD14 Stainless Steel,Shaft Coupler Connector,Motor Accessories

Key Features

• Connection Diameter 5mm to 8mm, Total Length 22mm /0.87 inch, Outside Diameter 14mm/ 0.55 inch
• Widely used in blowers,3D printer,DIY robots,CNC machine,stepper motors,etc. Similar to rigid clamp couplings, shaft couplers are used to hold bearings and sprockets tightly on the shaft, and are used in motor and gearbox assemblies.
• Top tight type rigid coupling with 2/4 screws to hold the shaft tightly; high torque with rigidity, low inertia and excellent sensitivity.
• NOTE The rigid type basically does not allow eccentricity, and it must be fully adjusted during use.
• Single piece set screw clamp design makes it easy to set up the items on the shaft and control the holding capacity of the coupling.

Product Description

Specification:4 pcs screws designThread Size: M4Color: Silver ToneMaterial: SteelConnection Diameter: 5mm to 8mmTotal Length: 22mm /0.87 inchOutside Diameter : 14mm/ 0.55 inchThrough Angle: 90 Degree Package List:1 Pcs x Rigid Shaft Coupler4 Pcs x M4 Screws

Description

Made from Steel material to reduce inertiaRigid coupling,high torque with rigidity,low inertia and excellent sensitivityNo rotation gap, elastic action can make up for symmetrical angular misalignmentMaintenance-free, oil proof and corrosion resistanceSuitable for model car, model boat, hardware, , mechanical drive situations etc

Note

Please allow 1-3mm differs due to manual measurementDue to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding
