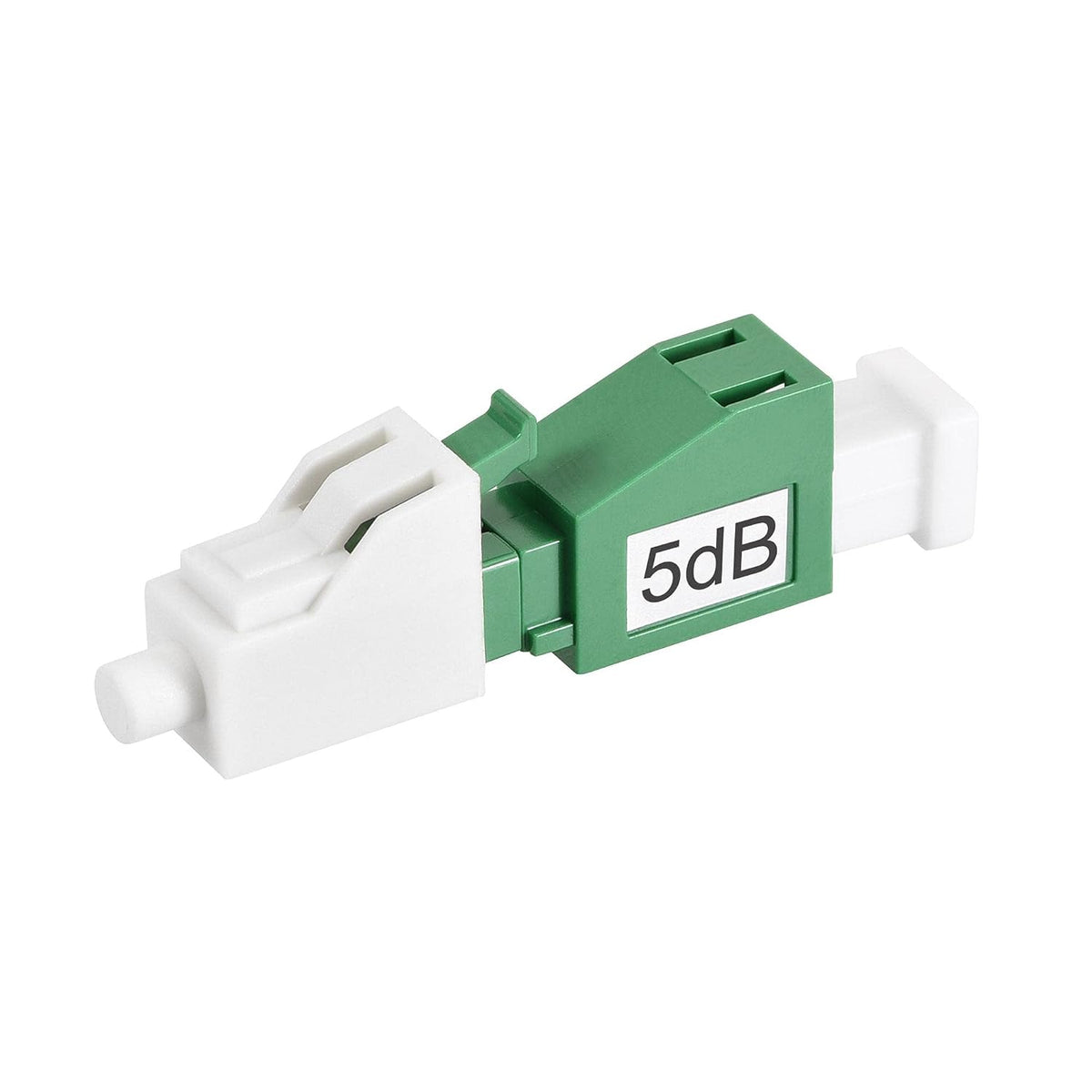

5dB LC Fiber Optic Attenuator, LC Male to LC Female Single Mode 9/125 Adapter

Key Features

• [MAIN PARAMETER] LC Female to LC Male; Single-mode; Attenuation Value 5dB; Attenuation Accuracy ±0.5dB.
• [MATERIAL] The core material of the adapter is ceramics.
• [FEATURE] To ensure the optical power stay in a stable level on its original transmission wave.High attenuation accuracy, low added loss and good stability.
• [SPECIFICATION] Bandwidth 1260nm - 1640nm; Operation Wavelength 1310nm, 1550nm; Loss Value ≥ 60 dB
• [APPLICATION] Widely used in the fiber optic communication system, for example, optical instrument calibration or fiber signal attenuation.

Product Description

Description

1. One end of the adapter is a female connector, and the other end is a male connector-UPC.2. To ensure the optical power stay in a stable level on its original transmission wave.3. The fiber optical attenuator applies to single mode.4. The core material of the adapter is ceramics.5. High attenuation accuracy, low added loss and good stability.6. Widely used in the fiber optic communication system, for example, optical instrument calibration or fiber signal attenuation.Specification:LC: Local ConnectorConnector: LC Male to LC FemaleAttenuation Value: 5dBAttenuation Accuracy: ±0.5dBFiber Mode: Single modeBandwidth: 1260nm - 1640nmOperation Wavelength: 1310nm, 1550nm1310nm Attenuation Value: 4.59dB1550nm Attenuation Value: 5.15dB1310nm Reflectance Value: 62.6dB1550nm Reflectance Value: 62.8dBOperation Temperature: -40 to +75°CMaterial: Metal, Plastic, CeramicColor: Green, WhiteTotal Size: 35x10x6mm / 1.38x0.39x0.24-inchPackage Included: 1 pcs x Fiber Optic Attenuator
