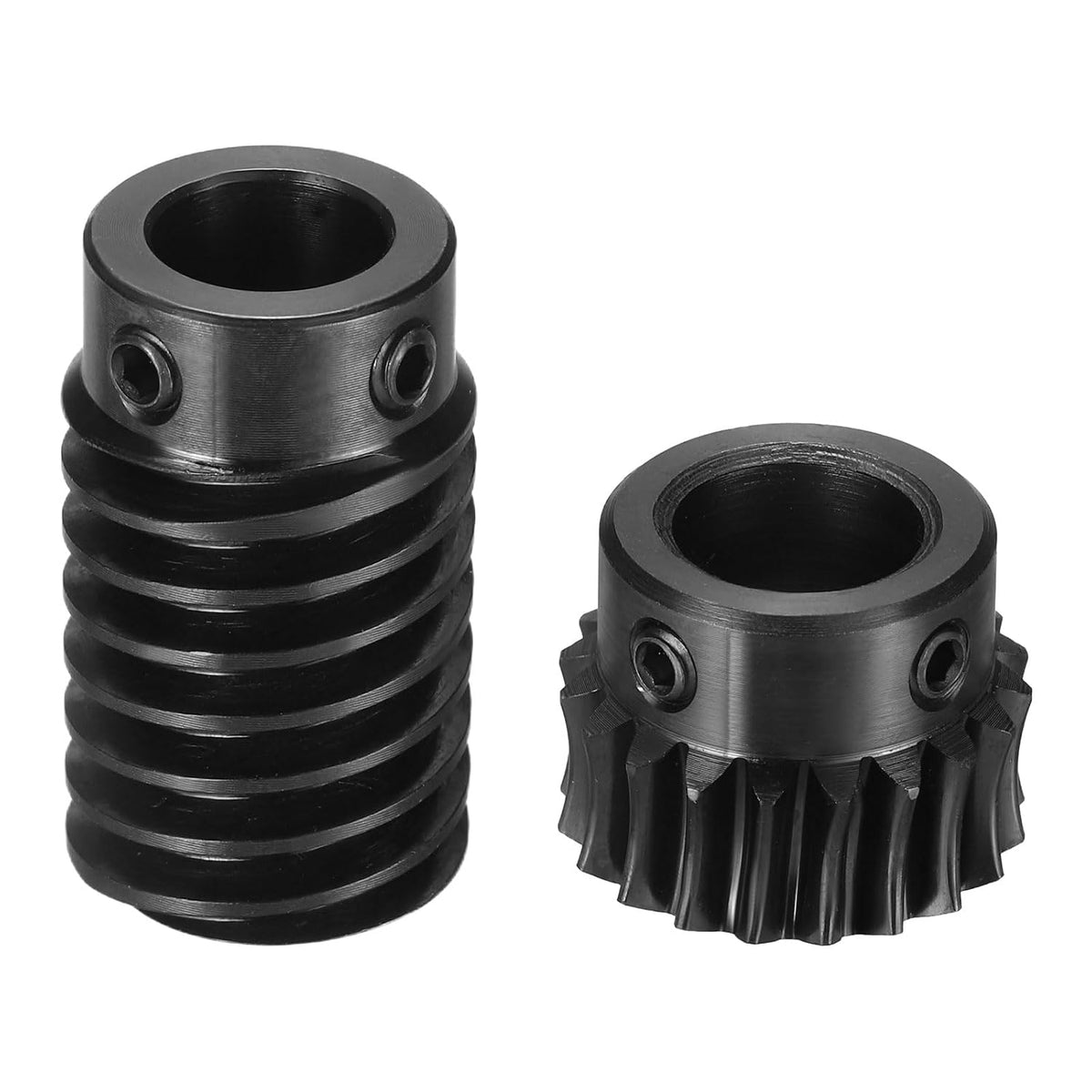

5140 Alloy Steel Worm Gear Set 1 Mod 20T (1:20 Reduction Rate), Right Rotation Drive Gear Box Wheel Reduce Transmission Part (Gear 12mm, Rod 10mm Bore)

Key Features

• Package Includes 1 set alloy steel worm gear set, 120 reduction rate, 1 module 20 teeth, 12mm gear bore, and 10mm rod bore.
• Material - The gears and worm are made of 5140 alloy steel with a blackened oxidized surface, featuring high strength, rust prevention, good toughness, wear and torsion resistance, and strong load-bearing capacity, ensuring stable operation in mechanical transmission systems
• Feature The worm gear set features high-precision transmission with a transmission ratio of 120, ensuring smooth and precise power transmission. The gear has a step design for easy installation and positioning, reducing installation errors
• Installation Align the gear holes and worm with the axis and fix them with fixings (such as keys or pins). Adjust the engagement clearance between the worm and the gear to ensure smooth transmission without over-tightening or over-loosening
• Application Gears and worm gears are widely used in mechanical equipment, industrial automation, home appliances, and the automotive industry for precise power transmission and speed reduction functions

Product Description

Descriptions

Material - The gears and worm are made of 5140 alloy steel with a blackened oxidized surface, featuring high strength, rust prevention, good toughness, wear and torsion resistance, and strong load-bearing capacity, ensuring stable operation in mechanical transmission systems.Feature - The worm gear set features high-precision transmission with a transmission ratio of 1:30, ensuring smooth and precise power transmission. The B-type gear with single-head screw-lock hollow cylindrical worm design provides reliable performance.Installation - Align the gear holes and worm with the axis and fix them with fixings. Adjust the engagement clearance between the worm and the gear to ensure smooth transmission without over-tightening or over-loosening.Application - Gears and worm gears are widely used in mechanical equipment, industrial automation, home appliances, and the automotive industry for precise power transmission and speed reduction functions.

Specifications

Modulus: 1Gear Material: Alloy Steel (ASTM/SAE):5140/(ISO):41Cr4Worm Material: Alloy Steel (ASTM/SAE):5140/(ISO):41Cr4Gear Hole: 12mm (0.47")Worm Hole: 10mm (0.39")Gear Tooth Count: 20 TeethWorm Total Length: 32mm (1.26")Worm Outer Diameter: 18mm (0.71")Gear Thickness: 10mm (0.39")Gear Outer Diameter: 22.8mm (0.9")Center Distance: 18mm (0.71")Rotation: Right

Package Includes

1 Set x Worm Gear Set
