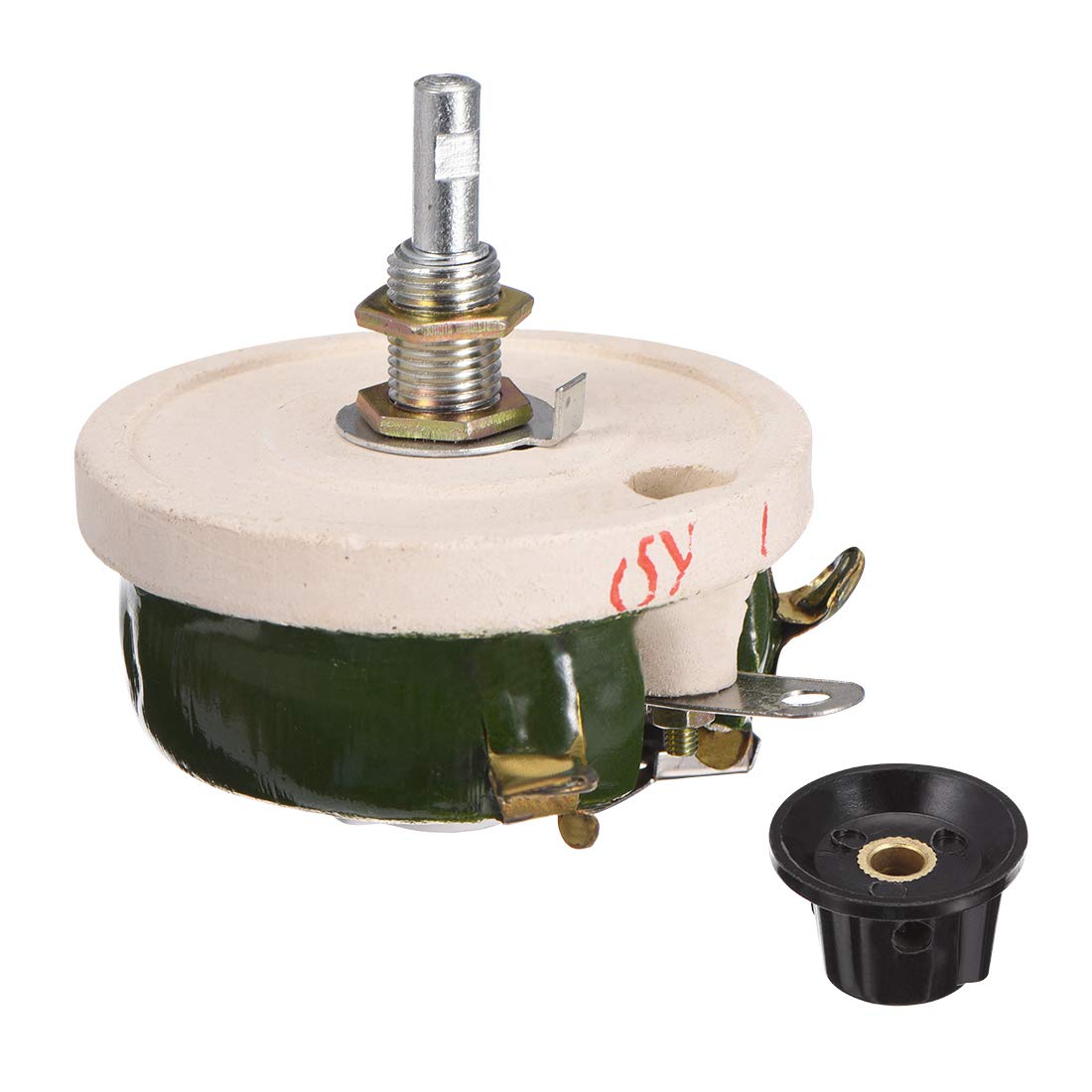

50W 1K Ohm Wirewound Ceramic Potentiometer Variable Rheostat Resistor with Knob

Key Features

• Model Variable Rheostat Wirewound Ceramic Potentiometer，can be used widely as light dimmers and motor speed control, is applicable for arc lamps, pumps, fans and blowers, , model trains or other applications that require high voltage and current.
• Widely used in educational modeling, load simulations, industiral machinery RPM adjustment, voltage and current adjustment, instruments, and automated control installations.
• Resistance Value 1K Ohm , Power：50W, Tolerance+/-5%
• Total Size 63 x 66 mm/ 2.5 x 2.6 inch (D * H)
• The rheostat is consisted of ceramic core and a resistive wire wrapped to form a toroid coil with a wiper axle.

Product Description

Product Name: Wirewound Ceramic Potentiometer Resistance Value: 1K ohmPower：50WTolerance: +/-5%Terminals Number: 3

Features

Round ShaftTotal Size: 63 x 66 mm/ 2.5 x 2.6 inch (D * H)Screw Thread Dia.: 10mm/0.39 inchShaft Diameter: 6mm/0.23 inchShaft Length(do not include the Screw Thread parts): 14.7mm/0.58 inchShaft Total Length：30mm/1.18 inch

Package Content

1 x Wirewound Ceramic Potentiometer Knobs Size: 18.8 x 30mm/ 0.74 x 1.18 inch (H*D)1K Ohm, 3 Terminals, Single Linear, Suits Most Standard Knobs.（this item include Knobs)Material：Ceramic MetalControl the electrical resistance of a circuit without interrupting the flow of current.The rheostat is consisted of ceramic core and a resistive wire wrapped to form a toroid coil with a wiper axle.Can be used widely as light dimmers and motor speed control, is applicable for arc lamps, pumps, fans and blowers, , model trains or other applications that require high voltage and current.Knurled shaft with split design for push-on knob.
