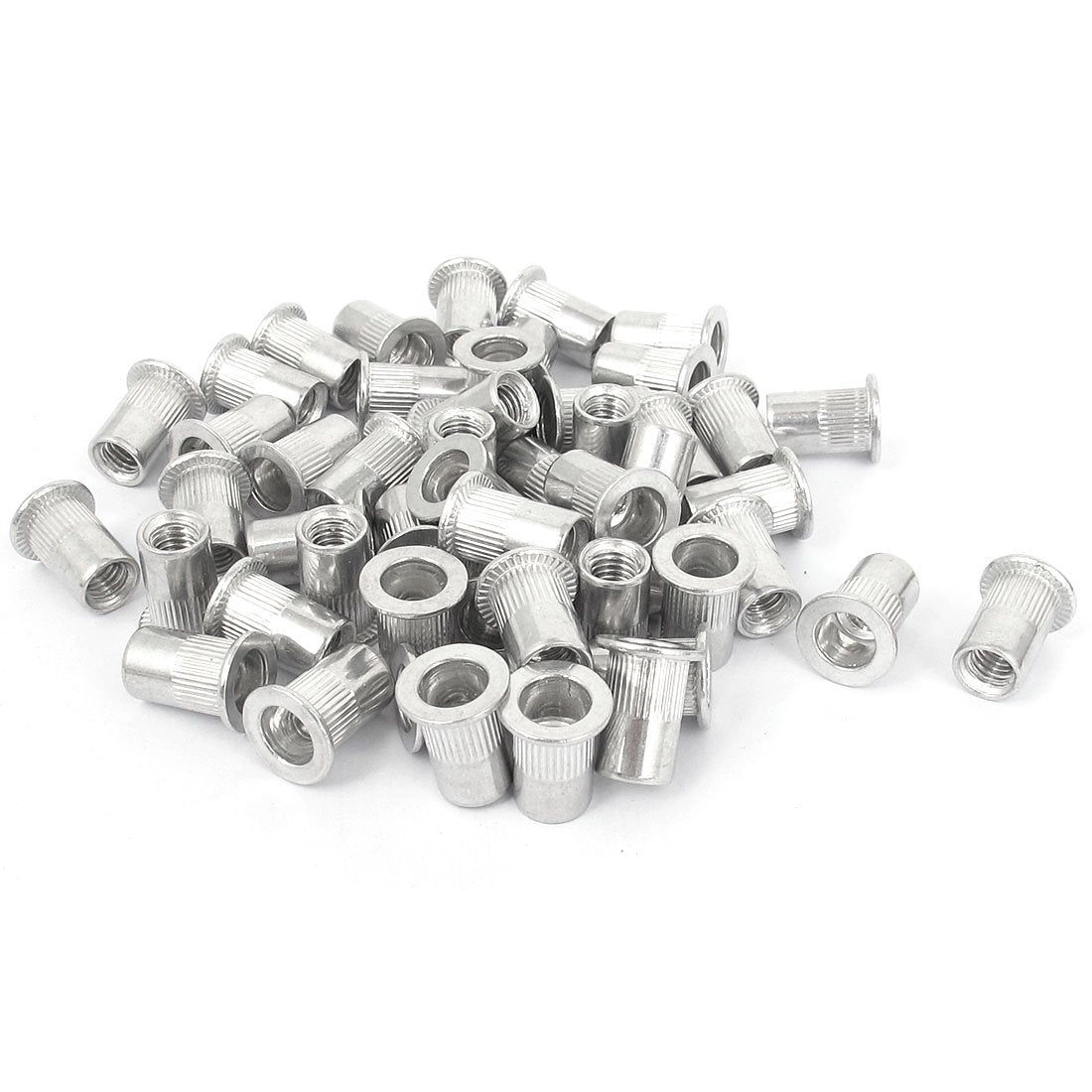

50 Pcs M6x15mm Flat Head Ribbed Body Rivet Nut Insert Nutserts

Key Features

• Thread Size (D) M6/ 0.24"; Product Name Rivet Nut; Material metal
• Weight 101g; Package Content 50 (+/-2%) x Rivet Nut
• Main Color Silver Tone; Total Length (L) 15mm/ 0.6"
• Body Diameter (d) 9mm/ 0.35"; Application Hole Size (d0) 7mm/ 0.28"
• Flange Size (dk*k) 12 x 1.2mm/ 0.47" x 0.047" (D*Thickness); Thread Pitch 1mm

Product Description

Description

Flat head cap screws, M6 female thread diameter, 15mm total length, rivet nut.This Nutsert has a flange to provide increased strength in punched and drilled holes.Knurled body provides a higher resistance to spin out when installed in soft materials.WHAT IS A Rivet Nut?A Rivet Nut fastener is a tubular rivet with internal threads. It can be installed in seconds form one side of thework. Once installed, no finishing work is required on the Rivet Nut fastener. The added benefit of not only being a dependable fastener, they are ready to use with clean threads available for screw attachments.Blind thinsheet materials that are too thin for a tapped thread. Blind Rivet Nuts also areused when an application has little or no access to the backside as they can be installed from the front side of the work piece.
