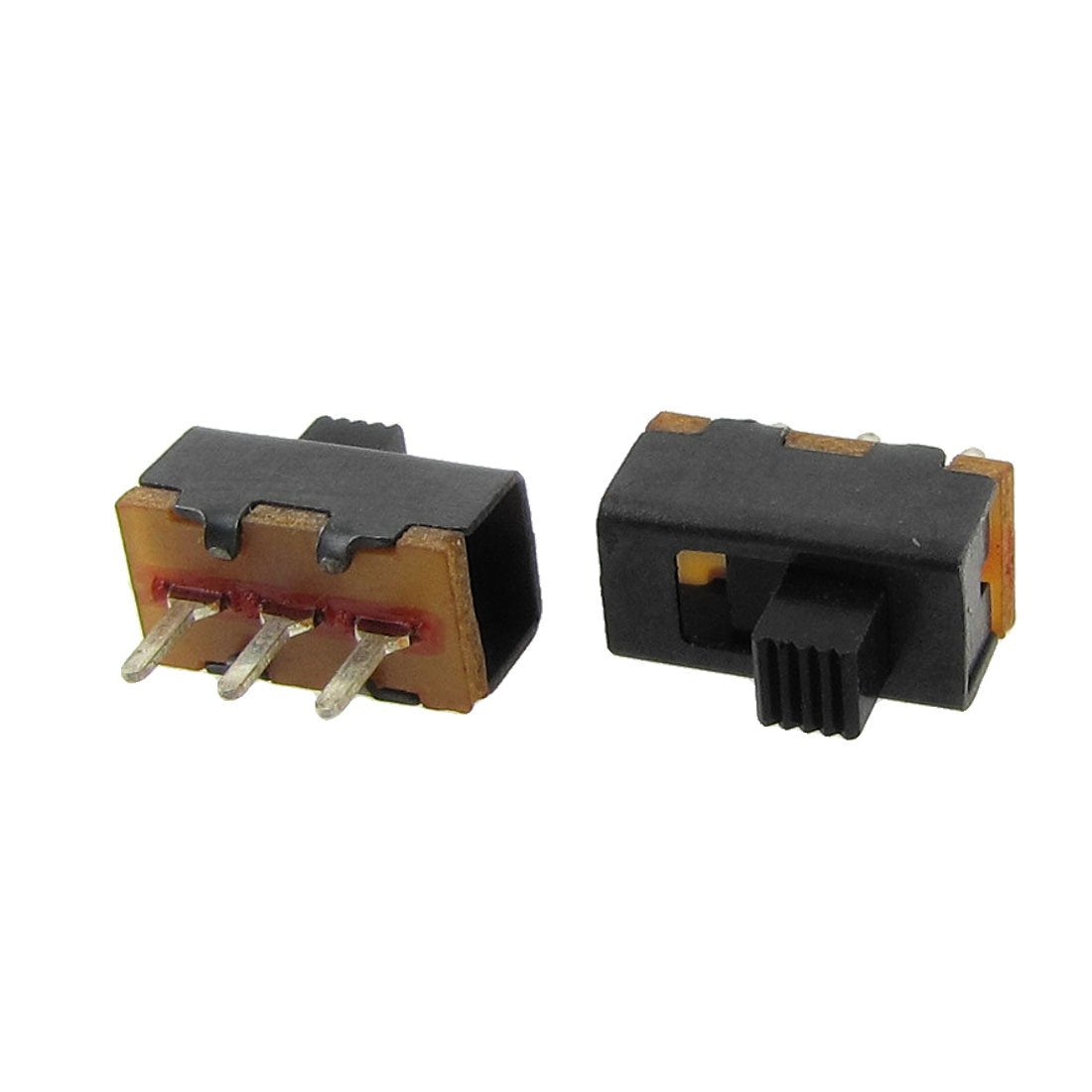

50 Pcs 2 Position 1P2T SPDT PCB Panel Mount Mini Vertical Slide Switch

Key Features

• Product Name Slide Switch;Model SS-12F17G3;Type 1 Pole 2 Throw;Terminal Quantity 3 Pcs
• Working Power 0.5A 50V DC;Contact Resistance 30m Max;Insulation Resistance 100m Min at 500V DC;Withstand Voltage AC 500V for 1 min
• Terminal Length 4mm/ 0.16";Pin Pitch 3mm / 0.118";Main Body Size(not include Pins and Knob) 11 x 6 x 5mm/ 0.43" x 0.24" x 0.2"(L*W*H)
• Switch Total Size 11 x 6 x 12mm/ 0.43" x 0.24" x 0.47"(L*W*H);Knob Size 3 x 3 x 3mm/ 0.12" x 0.12" x 0.12"(L*W*H);Material(External) Plastic, Metal
• Main Color Silver Tone, Black;Weight 33g;Package Content 50 Pcs(+/-2%) x Slide Switch

Product Description

Features Easy Structure, Mini Body, 3 Terminal, Vertical Handle, 1 Pole 2 Throw, Sliding Knob Actuator. Widely used to control operation of many small power electronic projects, including volume and other controls for audio video, dimmer controls for lights. etc. Also a great component for DIY.

Specifications
