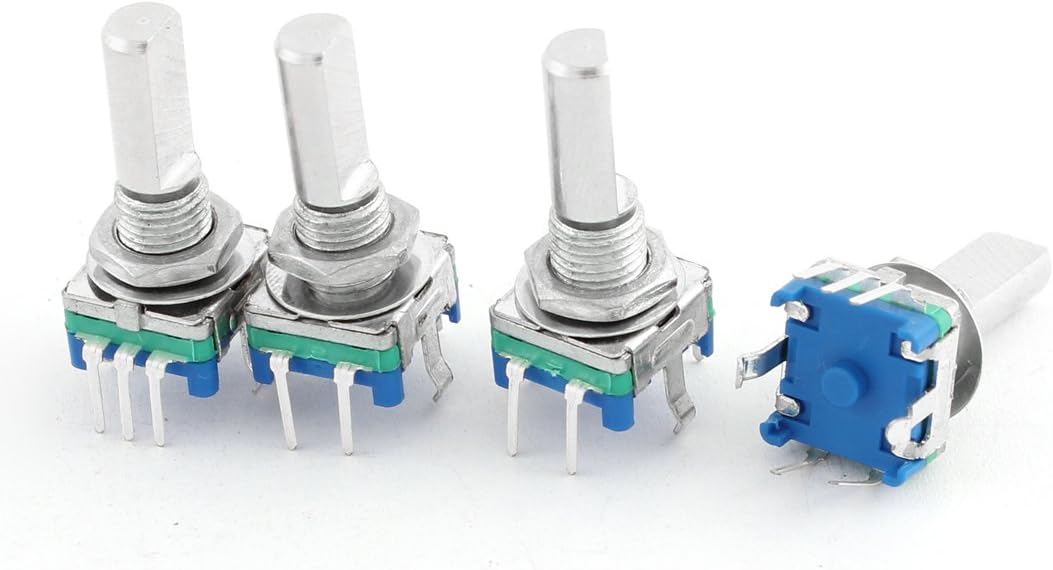

5 Terminals 20 Points 360 Degree Rotary Encoder 4 Pcs

Key Features

• Product Name Rotary Switch / Selector Switch; Country of Manufacture CHINA; Material Plastic, Metal; Net Weight 18g
• Package Content 4 Pcs x Rotary Switch; Main Color Blue, Silver Tone; Action Type Momentary
• Shaft Movement Direction 360 Degree; Detent Points 20; Shaft Diameter 6mm/ 0.24"
• Shaft Length 13mm/ 0.5"; Pin Numbers 5; Mounting Diameter 7mm/ 0.28"
• Features D Shaped Shaft; Base Size(Pin not Included) 13 x 12 x 6mm/ 0.51" x 0.47" x 0.24"(L*W*T); Total Height 30mm/1.18"

Product Description

These are continuous rotary encoder switch with a built in push button switch (push to operate).Can be used for data entry as with modern in CD players, for volume or on/off control or data selection by LED or LCD display... Applications: Industrial control, robots, photographic lenses, computer input devices. circuit board design dimming and sound 3D printer LCD display, etc. ( CD players, for volume & on/off control or data selection by LED or LCD display; ..)

Specifications
