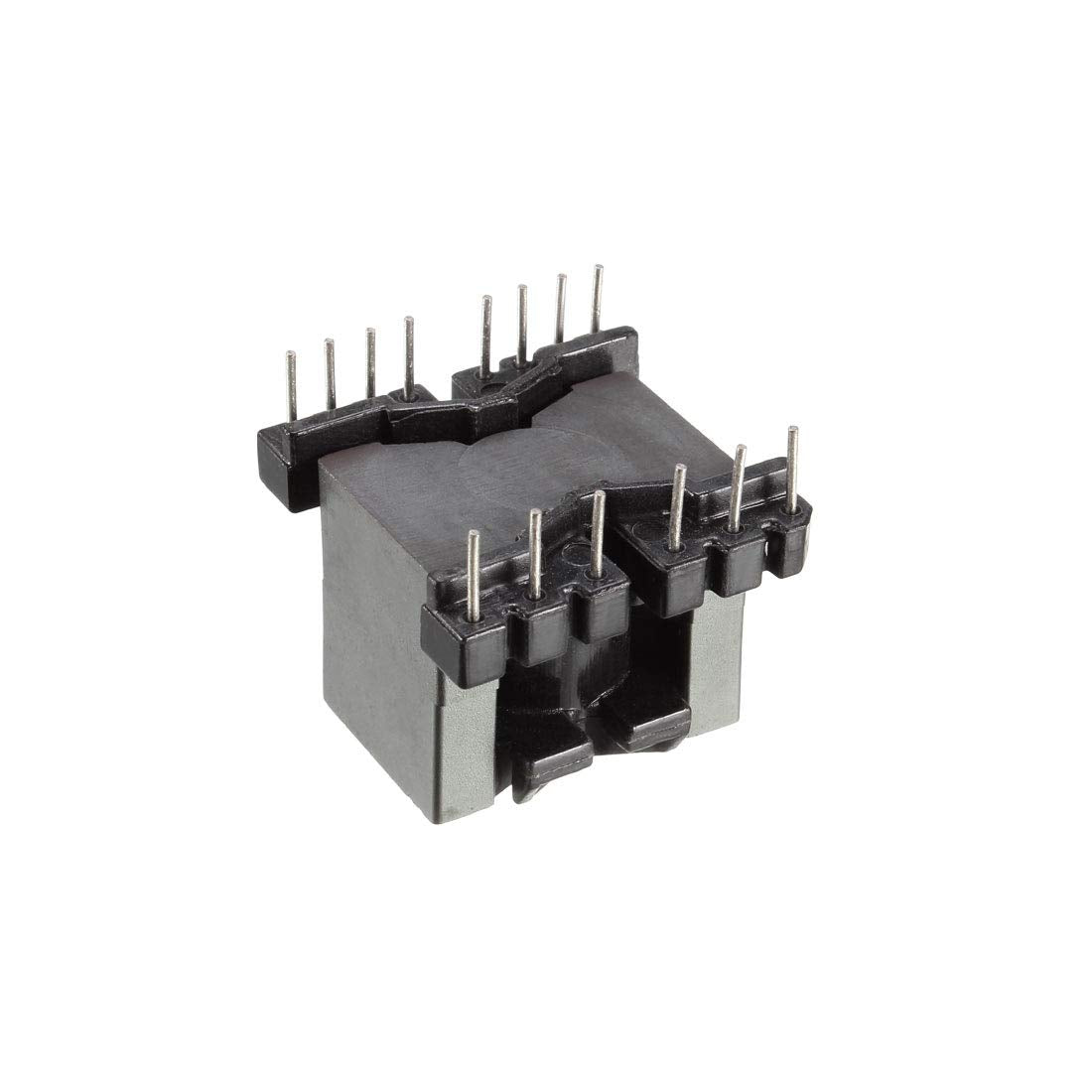

5 Sets PQ20 6 with 8pin Transformer Bobbin PC40 Ferrite Core Vertical 10 Ferrite Halves and 5 Bobbin

Key Features

• Product Name PQ20 Vertical Ferrite Core Transformer Bobbin 6+8 Pin
• Type PQ20 ; Pin spacing 2.5mm/0.1''; Ferrite core Size 20.5 x 14 x 8.6mm/0.8" x 0.5" x 0.3"(L*W*T); Bobbin size 23.5 x 23.5 x 22mm/0.9" x 0.9" x 0.8"(L*W*H).
• Applications switching power supply transformers, choke coils, high frequency transformers, filters.
• Product Range Transformers, filter inductors, coils, bobbins, magnetic cores.
• Widely used in color TV, monitor, electric charger, DVD, switching power supply, UP power supply, DC-DC converter, high frequency transformer, filter, inductor, household appliance, industrial automation, instrumentation, communication, energy saving Lighting and more!

Product Description

Product description Widely used in color TV, monitor, electric charger, DVD, switching power supply, UP power supply, DC-DC converter, high frequency transformer, filter, inductor, household appliance, industrial automation, instrumentation, communication, energy saving Lighting and more! Product Range: Transformers, filter inductors, coils, bobbins, magnetic cores.Type: PQ20Pin spacing: 2.5mm/0.1''Ferrite core Size: 20.5 x 14 x 8.6mm/0.8" x 0.5" x 0.3"(L*W*T)Bobbin size: 23.5 x 23.5 x 22mm/0.9" x 0.9" x 0.8"(L*W*H)Winding frame size: 7 x 10mm/0.3" x 0.4"(L*W)

Package content

5 SET =10 ferrite halves + 5 bobbin
