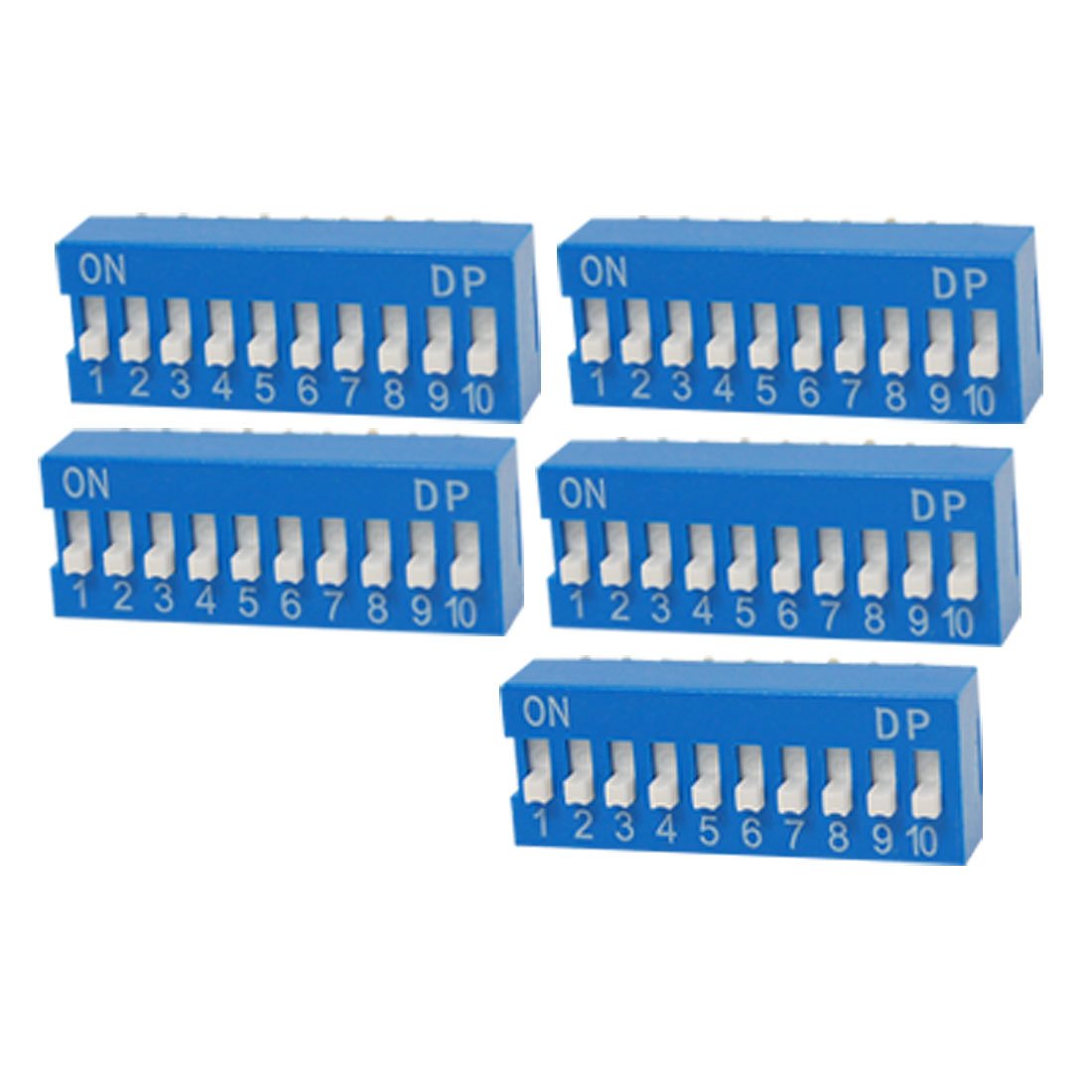

5 Pcs Electronic Components 10 Ways Slide Type DIP Switch Blue

Key Features

• Product Name DIP Switch;Type 10 Way Slide Style;Poles 2 x 10 Pin(2 rows)
• Pitch 2.54mm;Non-Switching Rating 100mA DC 50V;Switching Rating 25mA DC 24V;Net Weight 10g;Package Content 5 x DIP Switch
• Contact resistance 50m Ohm 24VDC/100mA (at initial),100m Ohm typical,24VDC/100mA (after life test);Dimension 2.6 x 1 x 1.2cm/ 1" x 0.4" x 0.5" (L*W*T)
• Made with plastic and brass pin, Good conductivity, corrosion resistance, strong and durable
• Widely used in circuit boards, breadboards and all pcb projects, perfect as a toggle or on off switch for your projects.

Product Description

This DIP switch is designed to be used on a printed circuit board along with other electronic components and is commonly used to customize the behavior of an electronic device for specific situations.Widely used in data processing, communication, remote control and anti-theft alarm system need to manually automatic programming products.Welding modes: 1, Hand Soldering, useing 30W soldering iron, not more than 3 seconds 350 centigrade, 270 centigrade less than 5 seconds. 2, Wave-soldering, 240 centigrade, less than 20 seconds, welding and cleaning process in the switch is disconnected.

Specifications
