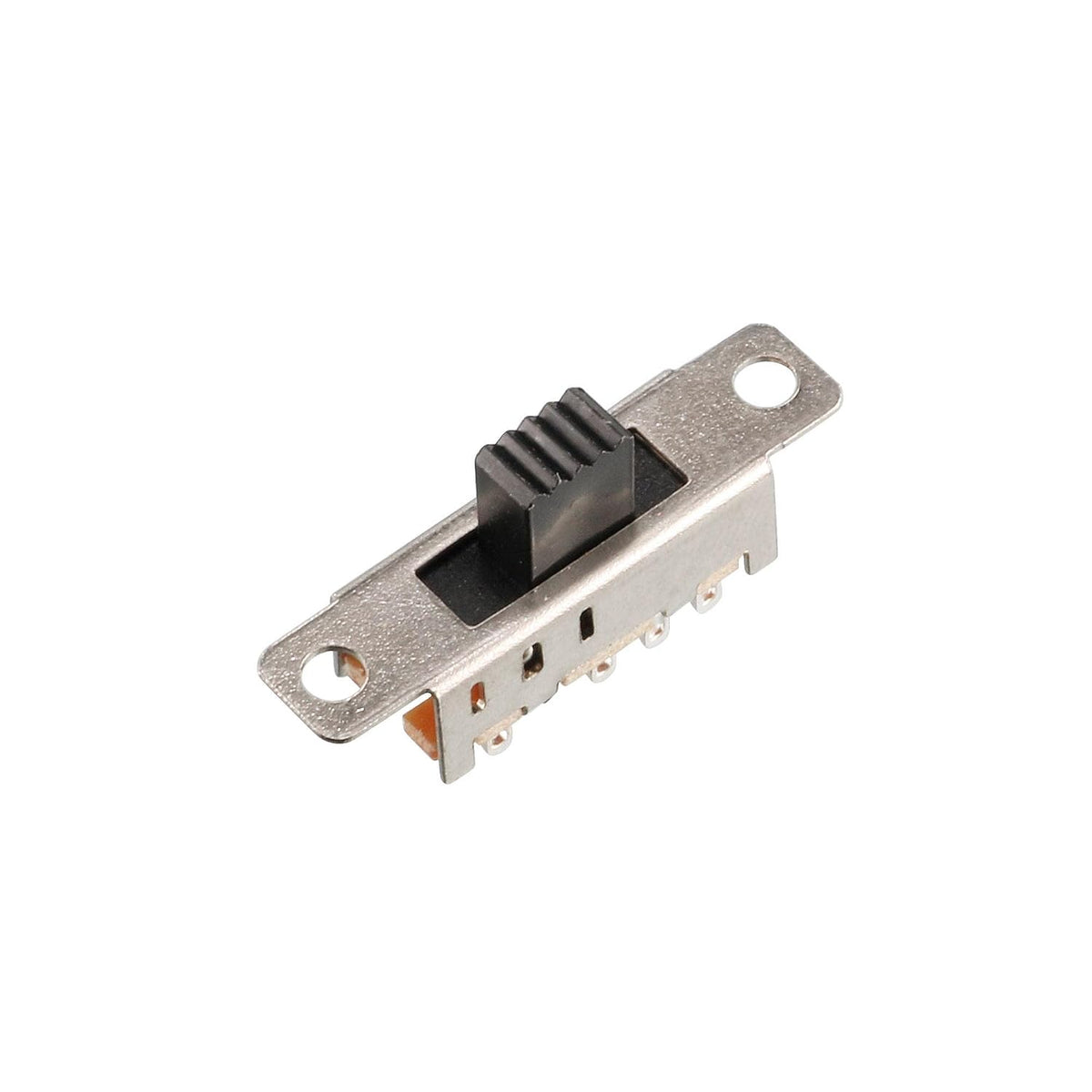

5 Pcs 8 Pin PCB 3 Position On/On/On DP3T 2P3T Panel Mini Slide Switch

5 Pcs 8 Pin PCB 3 Position On/On/On DP3T 2P3T Panel Mini Slide Switch

Brand: LinkMejor

★★★★☆ 60 ratings | 40 answered questions

$5.59

✓ Secure transaction

🚚 Free delivery available

🔄 30-day returns

📦 Ships from linkmejor.com

Key Features

Product Name Slide Switch;Model SS23E04-G5;Type 2P3T;Contact Type 3 Position, On/On/On
Terminal Quantity 8;Working Power 0.5A 50V DC;Contact Resistance 30mΩ Max;Insulation Resistance 100mΩ Min at 500V DC
Withstand Voltage AC 500V for 1 min;Mounting Type Through Hole;Hole Diameter 2.2mm / 0.08";Pin Size 1.7 x 4mm / 0.06" x 0.16"( L * W)
Pin Pitch 1.2mm/ 0.047" & 3.5mm/ 0.14";Switch Total Size 24 x 6.3 x 12mm / 0.94" x 0.25" x 0.47" (L * W* H);Knob Size 5 x 3 x 5mm / 0.2" x 0.12" x 0.2" (L * W * H);Material(External) Plastic, Metal, Electronic Parts
Main Color Silver Tone, Black;Weight 6g;Package Content 5 x Slide Switch

Product Description

Features

Easy Structure, Mini Body, 8 Terminal, Vertical Handle,2 Pole 3 Position, Sliding Knob Actuator.Widely used to control operation of many small power electronic projects, including volume and other controls for dimmer controls for lights. etc.Also a great component for DIY.
