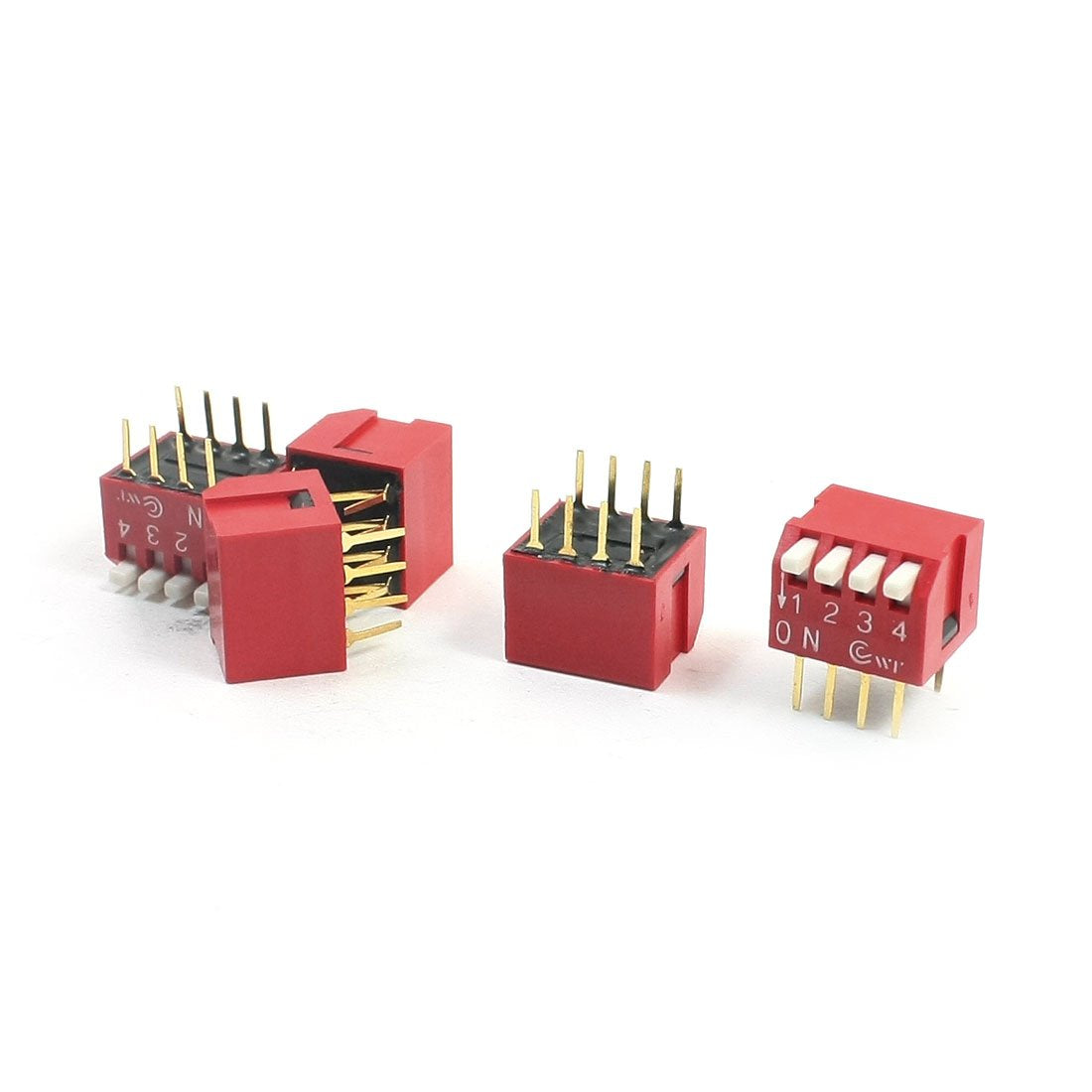

5 Pcs 2.54 mm Pitch 4 Position 4-Bit 8 Pin Slide Type Red Dip Switch

Key Features

• Product name Dip switch;Type slide Type;features 4 positions( 2 row 8 pin)
• Pitch 2.54mm/0.1'';non-switching Rating 100mA DC 50V;switching Rating 100mA DC 24V
• Contact resistance 50m 24Vdc/100mA (at initial)100m typical, 24Vdc/100mA (after life test);total Size 11.5 x 10 x 9 mm / 0.45" x 0.4" x 0.35"(L * W * H)
• Material plastic, electric parts;main color GOLD Tone, red
• Weight 7G;package content 5pcs x Dip switches

Product Description

Features

dip Type, 2.54mm pitch, 4 position, 2 row, 8 pin, dip switch used on a printed circuit board along with other electronic components and is commonly used to customize the behavior of an electronic device for specific situations. Widely used in data processing, communication, remote control and anti-theft alarm system need to manually automatic programming products.
