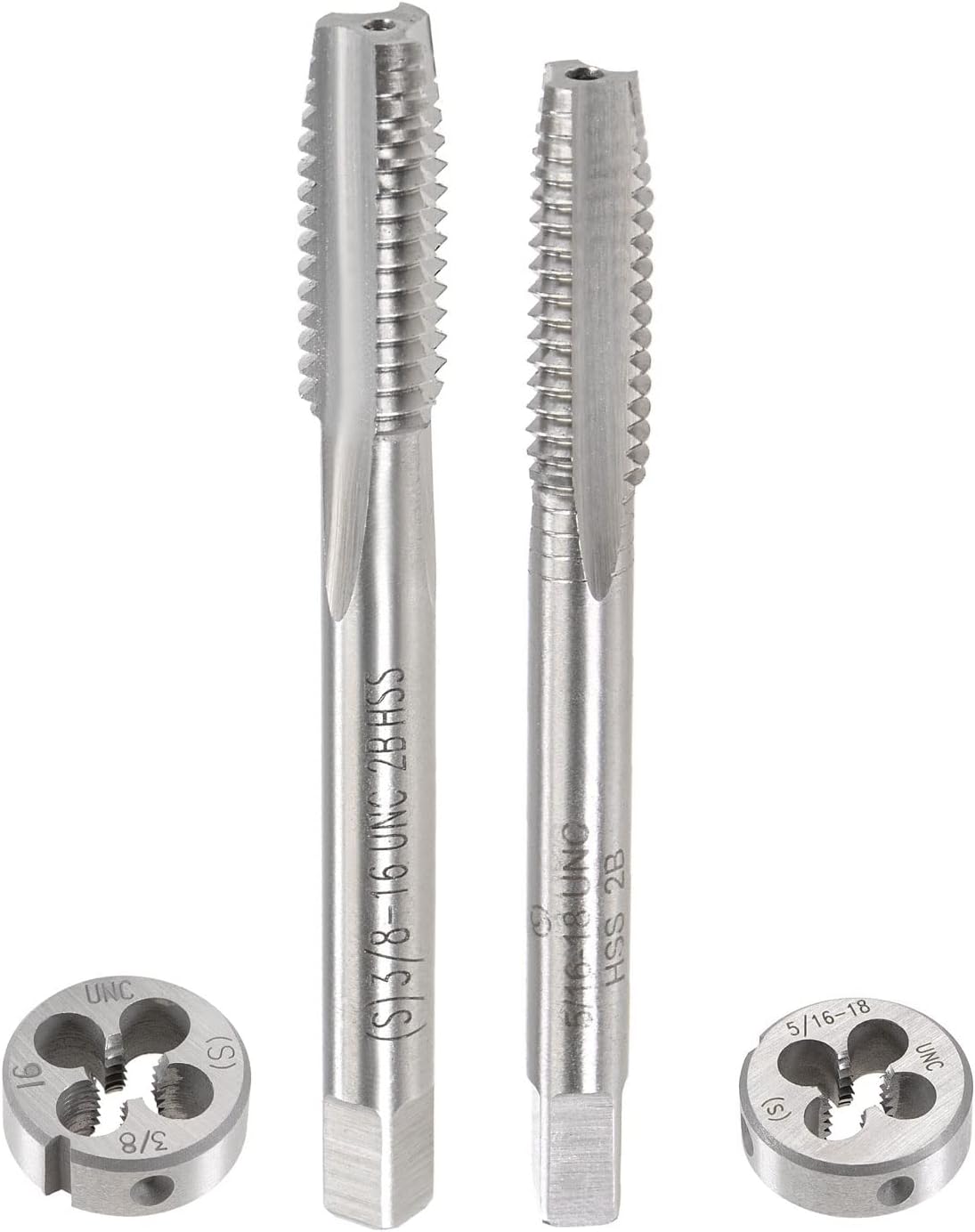

5/16"-18 UNC, 3/8"-16 UNC Tap and Die Set HSS Thread Tap with Round Threading Die Right Hand

Key Features

• Specifications 5/16"-18 UNC, 3/8"-16 UNC tap and die set, right hand, 2B tolerance grade. Suitable for making or repairing male and female threads. Good for general purpose applications.
• Application Used for through hole processing, such as alloy steel, die steel, cast iron, ferrous and non-ferrous materials etc.. Great for maintenance and repair work.
• Features High speed steel (HSS) tool provides high hardness and good wear-resistance. With fine grinding process, tap and die set is sharp and durable, and with clear thread to meet the processing requirements.
• Easy to Use The fastening screw in the middle of the die wrench should be inserted into the slot of the die and tightened. The machine tap is suitable for drill presses, tapping machines, CNC and milling machines.
• Tips Used with tapping oil to get threads and more durable taps. Suitable lubricating oil should be added to the cutting edge of dies and taps when tapping.

Product Description

Tap Size:Thread Size: 5/16"-18 UNC; Thread Length: 25mm / 0.98"; Overall Length: 71mm / 2.8"; Square Shank Size: 5mm / 0.2"; Tolerance Grade: 2B; Material: High Speed Steel (HSS); Type: Machine TapDie Size:Thread Size: 5/16"-18 UNC; Outside Diameter (OD) : 25mm / 0.98"; Thickness: 9mm / 0.35", Material: Alloy Tool Steel; Type: Round DieThread Size: 3/8"-16 UNC; Thread Length: 25mm / 0.98"; Overall Length: 80mm / 3.15"; Square Shank Size: 5.5mm / 0.22"; Tolerance Grade: 2B; Material: High Speed Steel (HSS); Type: Machine TapDie Size:Thread Size: 3/8"-16 UNC; Outside Diameter (OD) : 30mm / 1.18"; Thickness: 11mm / 0.43", Material: Alloy Tool Steel; Type: Round DiePackage Included:2 x Tap and Die Set (2 x Machine Tap, 2 x Round Die)

Descriptions

1. Compatibility: Suitable for making or repairing male and female threads. Good for general purpose applications. Tap and die are both right hand thread.2. Application: Used for through hole processing, such as alloy steel , die steel, cast iron, ferrous and non-ferrous materials etc.. Great for maintenance and repair work.3.

Features

High speed steel (HSS) tool provides high hardness and good wear-resistance. With fine grinding process, tap and die set is sharp and durable, and with clear thread to meet the processing requirements.4. Easy to Use: The fastening screw in the middle of the die wrench should be inserted into the slot of the die and tightened. The machine tap is suitable for drill presses, tapping machines, CNC and milling machines.5. Tips: Used with tapping oil to get threads and more durable taps. Suitable lubricating oil should be added to the cutting edge of dies and taps when tapping.

Specifications
