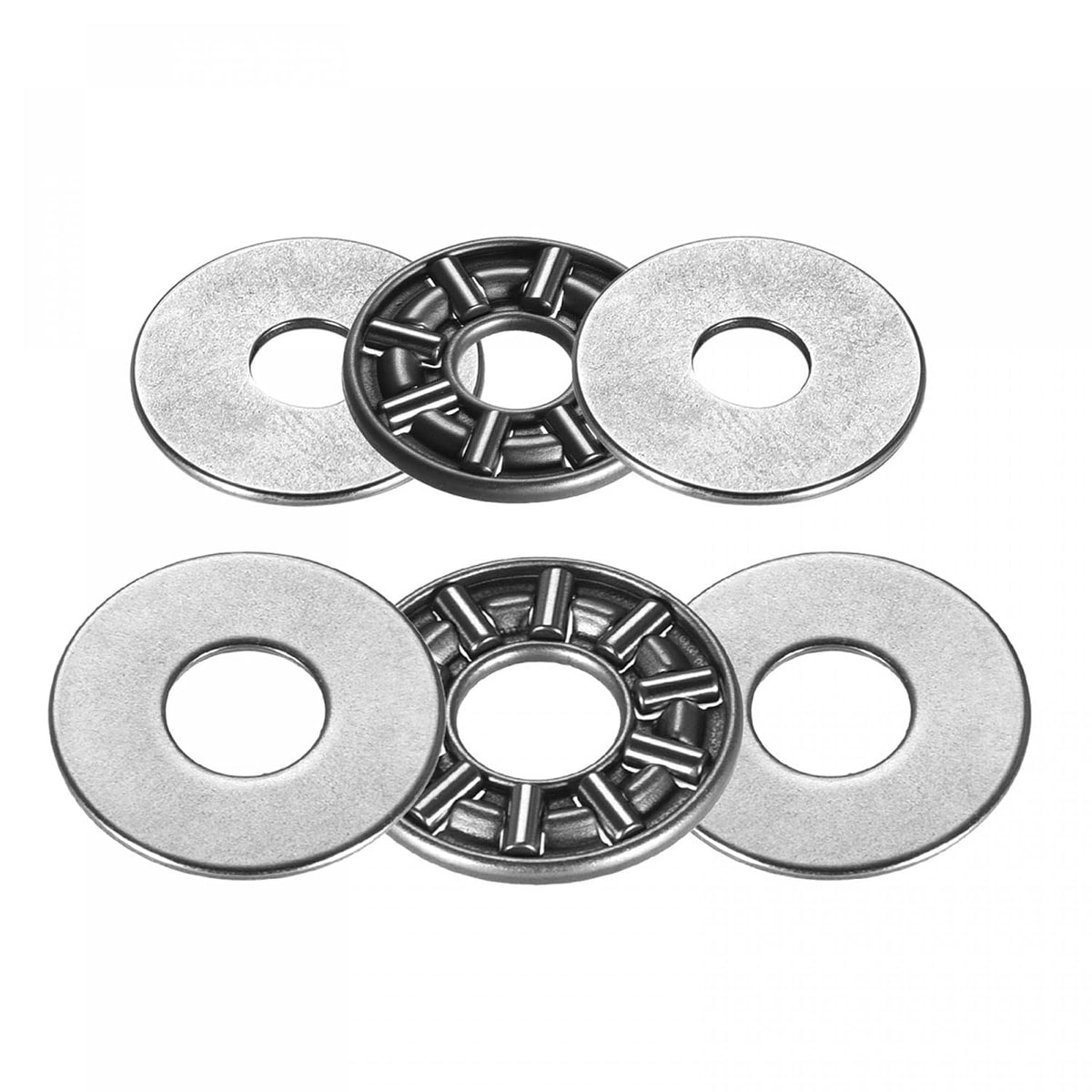

4pcs AXK0619, AXK0821 Thrust Needle Roller Bearings with Washers

Key Features

• Size - Bearing Model AXK0619 (I.D.=6mm, O.D.=19mm, Thickness=2mm), Washer Model AS0619; Bearing Model AXK0821 (I.D.=8mm, O.D.=21mm, Thickness=2mm), Washer Model 0821
• Material - Chromium steel rollers for heat tolerance and durability under heavy loads; Steel cage guides and evenly spaced rollers for reduced friction, vibration, and noise
• Features - Needle Roller Thrust Bearings can accommodate axial loads in one direction only
• Washers - Combined with 2 washers for applications where adjacent machine components cannot serve as raceways
• Package Content 2 x AXK0619, 2 x AXK0821, 8 x Washers(2pcs washers per bearing)

Product Description

Description

These Needle Roller Thrust Bearings provide a high degree of stiffness within a minimum space. It has a smaller cross-section than a standard thrust bearing for use in restricted spaces.These bearings accommodate heavy peak loads due to the small diameter deviation of the rollers within one assembly.Thrust Bearings can be combined with washers in applications where adjacent components cannot serve as raceways.Made of hardened spring steel, both faces of the washers are polished and can be used as raceways.Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.Specification:Bearing No.: AXK0619, AXK0821Bearing Washer No.: AS1528, AS3552Needle Roller Material: Chromium Steel (GCr15)Cage Material: ST13 SteelBearing Washer Material: 65Mn Spring SteelBore Diameter: 6mm, 8mmOutside Diameter: 19mm, 21mmBearing Thickness: 2mm, 2mmWasher Thickness: 1mm, 1mmmTotal Thickness: 4mm, 4mmDynamic Load Capacity (Cr): 11.2kNStatic Load Capacity (Cor): 35.5kNMaximum Rotational Speed (Oil): 11000rpm

Package Content

2 x AXK06192 x AXK08218 x Washers
