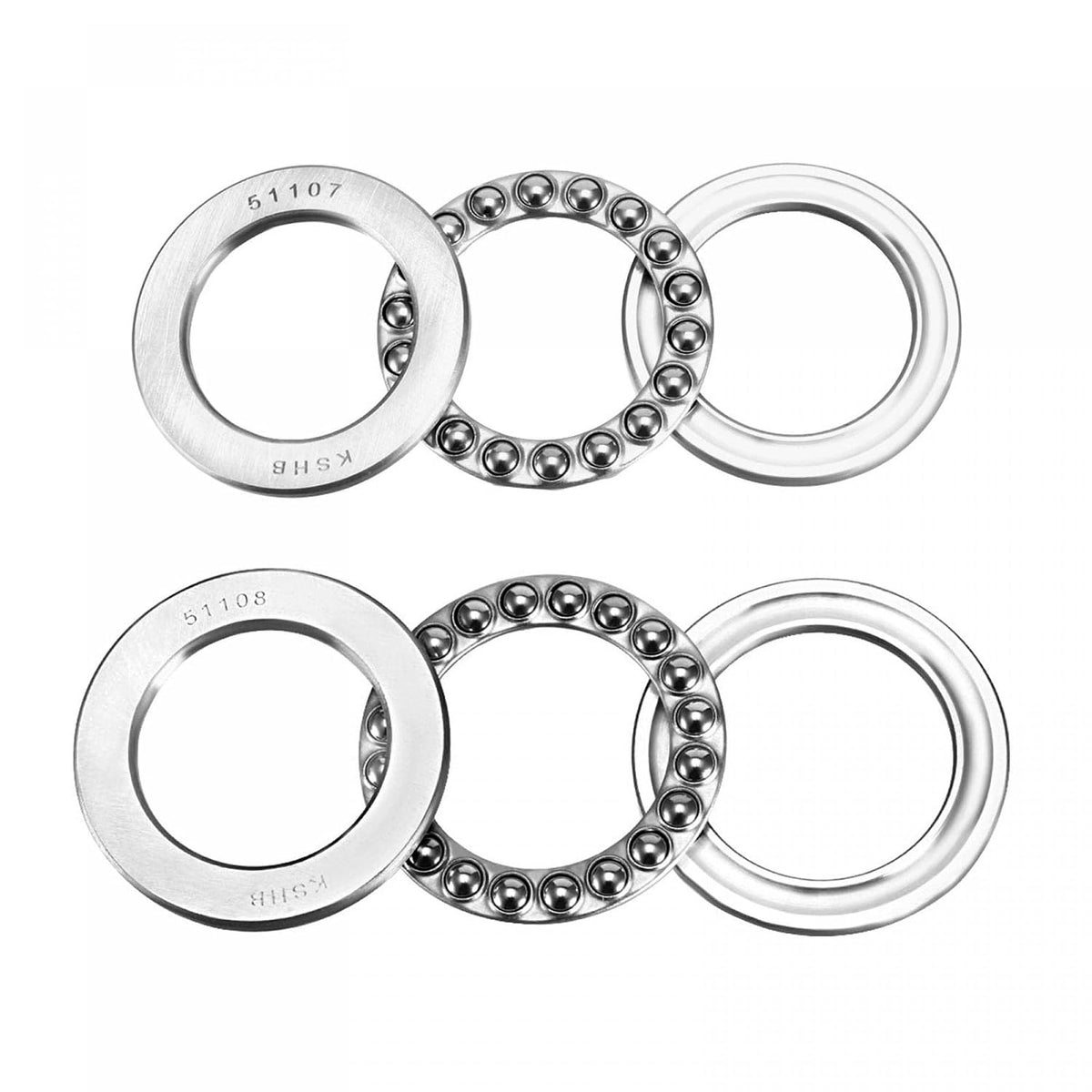

4pcs 51107, 51108 Single Direction Thrust Ball Bearings Chrome Steel

Key Features

• Size - 51107 (Bore Diameter=35mm, Outer Diameter=52mm, Thickness=12mm); 51108 (Bore Diameter=40mm, Outer Diameter=60mm, Thickness=13mm)
• Material - Made of Chrome Steel(AISI 52100), have great wear-resistant, high temperature resistance and high hardness; Steel cage
• Capability - Designed for low speed operation and axial loads only
• Features - The separable components of thrust ball bearings are interchangeable. Low noise and long service life, easy to maintain. Keep the bearing working environment clean and bearing lubricated in time
• Package Content - 2pcs x 51107, 2pcs x 51108

Product Description

Description

The separable components of thrust ball bearings are interchangeable.Thrust Ball Bearings consist of a shaft washer, a housing washer and a ball and cage assembly.They are designed to accommodate axial loads and locate a shaft axially, in one direction only, and must not be subjected to any radial load.Chromium Steel (GCr15) Shaft and Housing Washer provide high and uniform hardness, good wear resistance.Specification:Model: 51107, 51108Shaft/Housing Washer Material: Chromium Steel (GCr15) Bearing Ball Material: Chromium Steel (GCr15)Cage Material: Stamping SteelBore Diameter: 35mm, 40mmOuter Diameter: 52mm, 60mmThickness: 12mm, 13mmDynamic Load Rating (Cr): 20.4kN, 26.9kNStatic Load Rating (Cor): 44.7kN, 62.8kNLimiting Speed (Grease): 3900rpm, 3400rpmLimiting Speed (Oil): 6000rpm, 5300rpmAccuracy Class: P5

Package Content

2pcs x 511072pcs x 51108
