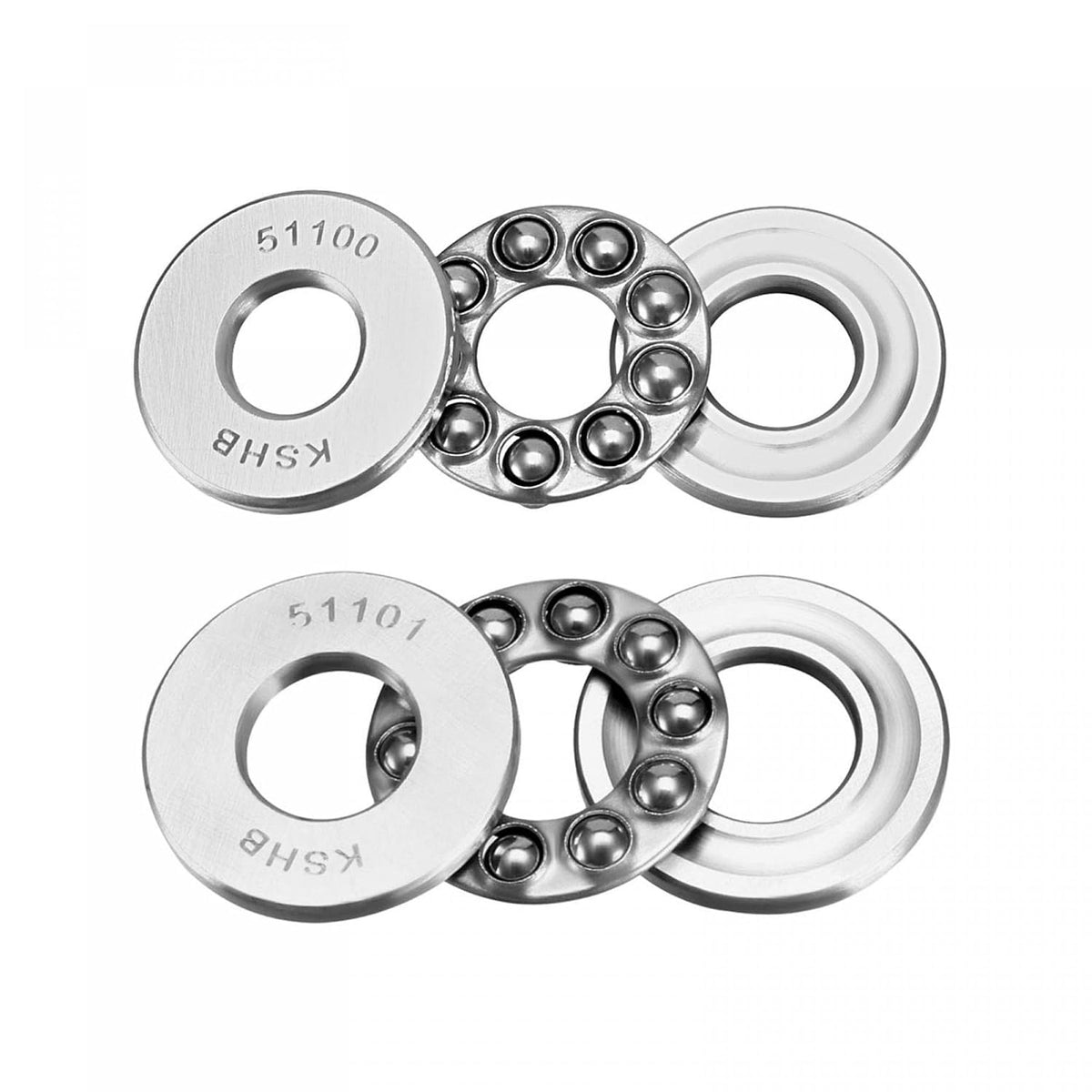

4pcs 51100, 51101 Single Direction Thrust Ball Bearings Chrome Steel

Key Features

• Size - 51100 (Bore Diameter=10mm, Outer Diameter=24mm, Thickness=9mm); 51101 (Bore Diameter=12mm, Outer Diameter=26mm, Thickness=9mm)
• Material - Made of Chrome Steel(AISI 52100), have great wear-resistant, high temperature resistance and high hardness; Steel cage
• Capability - Designed for low speed operation and axial loads only
• Features - The separable components of thrust ball bearings are interchangeable. Low noise and long service life, easy to maintain. Keep the bearing working environment clean and bearing lubricated in time
• Package Content - 2pcs x 51100, 2pcs x 51101

Product Description

Description

The separable components of thrust ball bearings are interchangeable.Thrust Ball Bearings consist of a shaft washer, a housing washer and a ball and cage assembly.They are designed to accommodate axial loads and locate a shaft axially, in one direction only, and must not be subjected to any radial load.Chromium Steel (GCr15) Shaft and Housing Washer provide high and uniform hardness, good wear resistance.Specification:Model: 51100, 51101Shaft/Housing Washer Material: Chromium Steel (GCr15) Bearing Ball Material: Chromium Steel (GCr15)Cage Material: Stamping SteelBore Diameter: 10mm, 12mmOuter Diameter: 24mm, 26mmThickness: 9mm, 9mmDynamic Load Rating (Cr): 10kN, 10.3kNStatic Load Rating (Cor): 14kN, 15.4kNLimiting Speed (Grease): 6500rpmLimiting Speed (Oil): 10000rpmAccuracy Class: P5

Package Content

2pcs x 511002pcs x 51101
