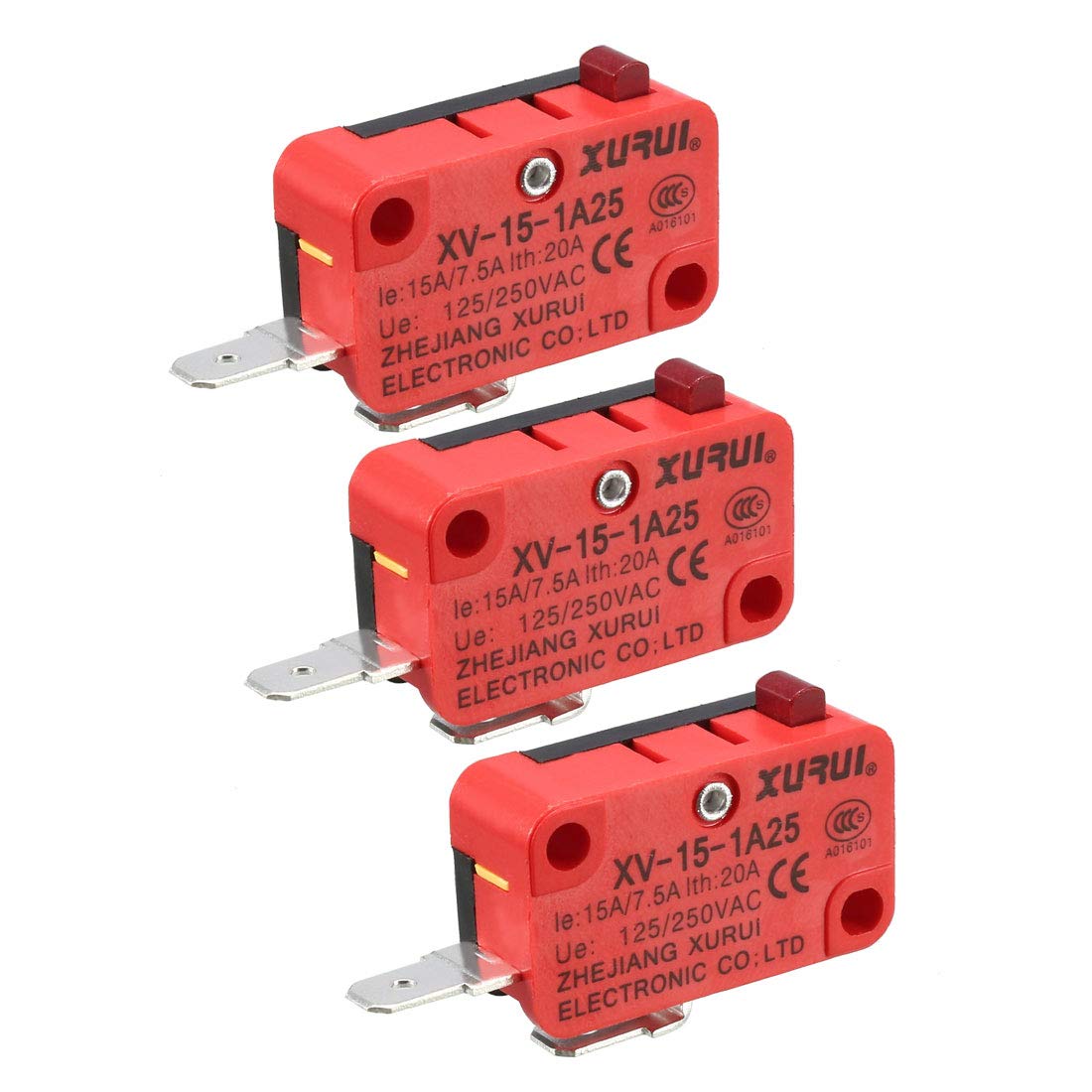

3PCS XV-15-1A25 SPST NO 2 Pole Push Button Action Micro Switches for Microwave Oven Door
Key Features
- Rating Ue AC125/250V, Ie 15A/7.5A, Ith 20A;
- OF max. 200g Force min. 50g PT max. 1.2mm OT min. 0.6mm Movement Differential max. 0.3mm Operating Position 14.7+/-0.5mm
- Contact Form SPST-NO
- Operation speed 0.1mm-1m/s
- Widely used in appliance, electronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool , etc.
Product Description
Widely used in appliance, electronic equipment, automatic machine, communication equipment, electric, apparatus and instrument, electro motion tool , etc. SpecificationRating: Ue: AC125/250V, Ie: 15A/7.5A, Ith: 20A;OF max. 200g Force min. 50gPT max. 1.2mmOT min. 0.6mmMovement Differential max. 0.3mmOP 14.7+/-0.5mmContact Form: SPST-NOPin number: 2Operation speed: 0.1mm-1m/sInsulation resistance: 100m Ohm Above DC500VContact resistance: 25m Ohm initial valueLife: 100000 times above(Electrical); 1000000 times above(Mechanical)Protection degree: IP40Operating temperature: -25~+80°CCertification: UL/CE/Overall size: 38x21x10mm/1.5x0.83x0.39inch(L*W*H)Total weight: 18g Package Content3 x Micro Switch
Specifications
| Product Dimensions | 1.97 x 1.57 x 1.18 inches |
