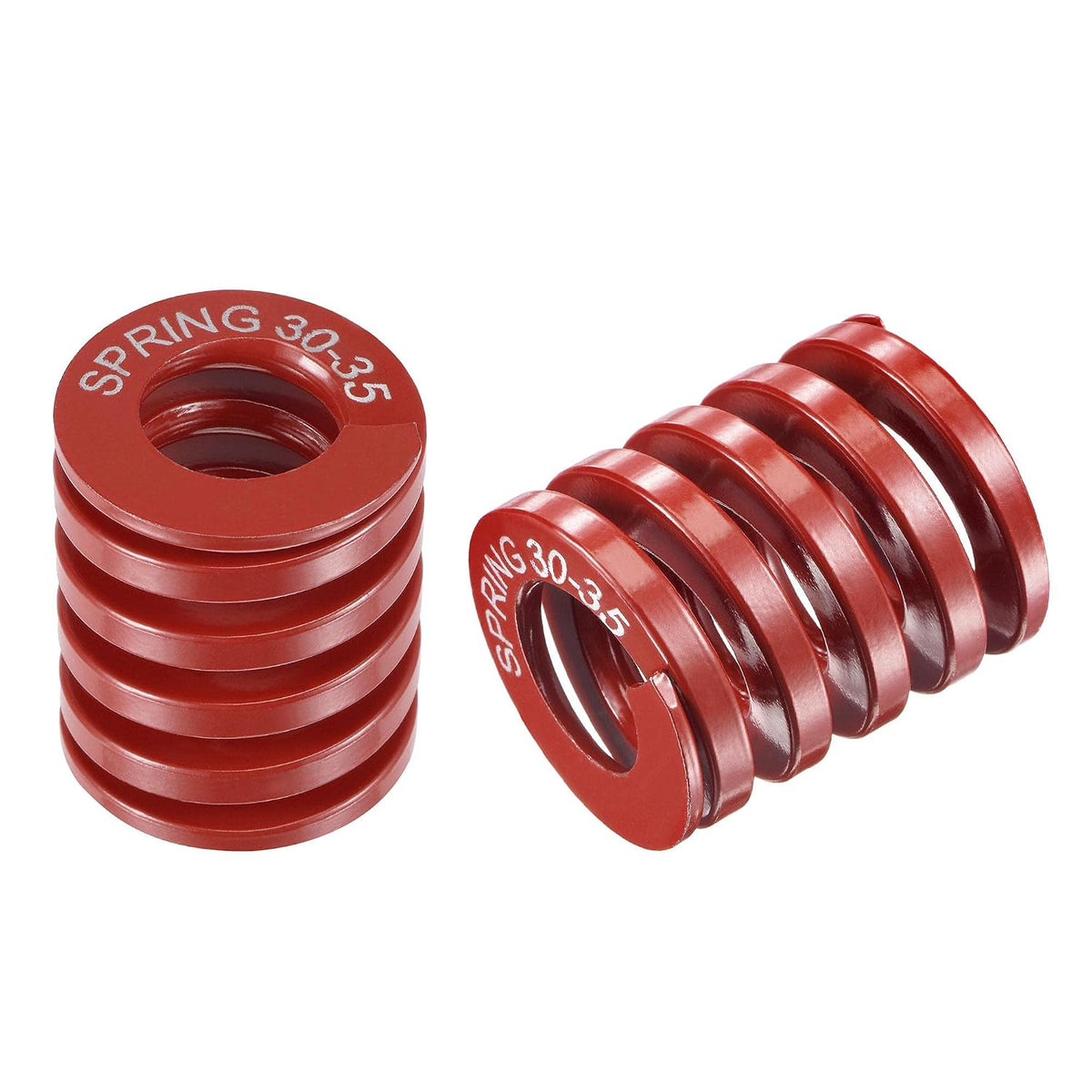

3D Printer Die Spring, 30mm OD 35 mm Free Length 65Mn 1765N Load Capacity Compression Mould Die Springs Red 2pcs

Key Features

• Hole Diameter (OD) 30mm/1.17"; Rod Diameter (Inner Dia) 16mm/0.62"; Free Length 35mm/1.37"
• 23.8mm/0.93" Compressed Length; 1765N Load Capacity; 157.59 N/mm Spring Rate; Color Red
• Material The spring is made of alloy steel 65Mn, which is durable and reusable
• Application Used in maintenance and replacement of various equipment, such as stamping , die machinery, printers and etc.
• How to use Put the spring into the pre-holes or set it into the outside of the support rod, select the right size as needed;

Product Description

Hole Diameter (OD) : 30mm/1.17"; Rod Diameter (Inner Dia) : 16mm/0.62"; Free Length: 35mm/1.37" 23.8mm/0.93" Compressed Length; 1765N Load Capacity; 157.59 N/mm Spring Rate; Color: Red Material: The spring is made of alloy steel 65Mn, which is durable and reusable Application: Used in maintenance and replacement of various equipment, such as stamping , die machinery, printers and etc.

How to use

Put the spring into the pre-holes or set it into the outside of the support rod, select the right size as needed; ›

Specifications
