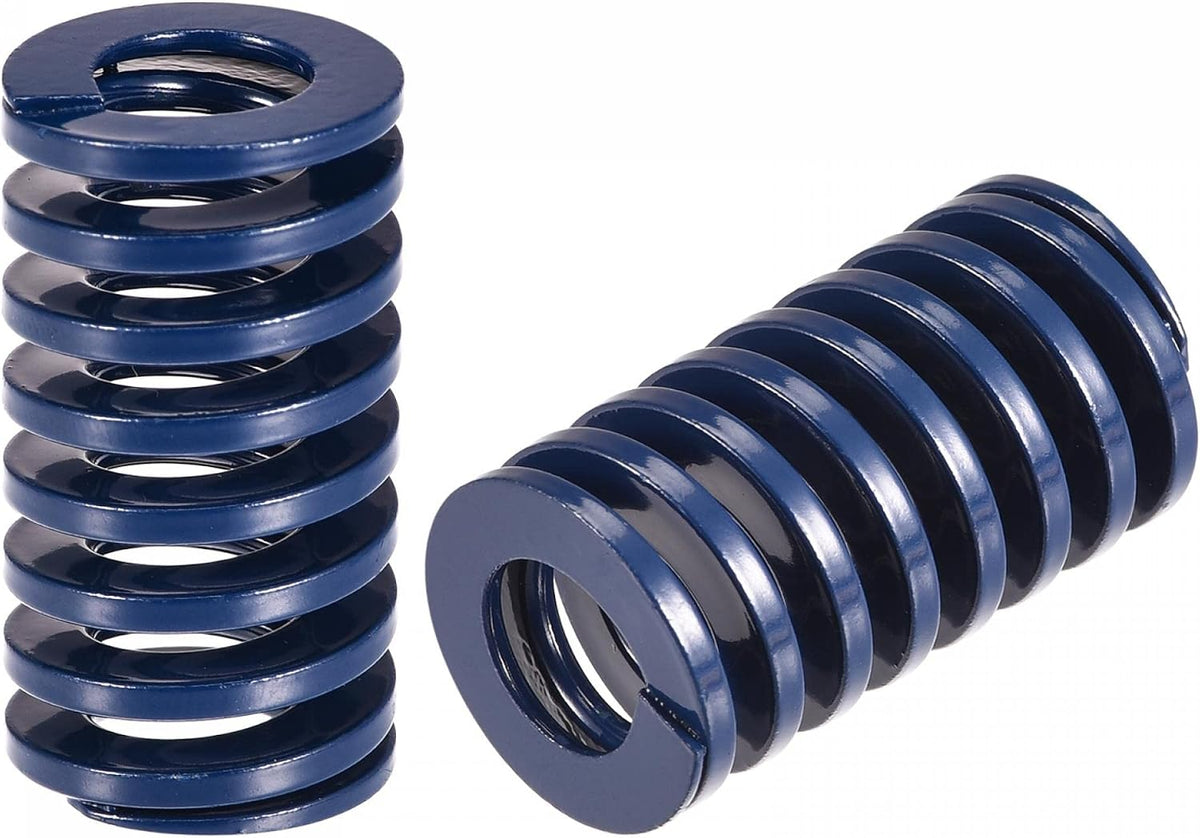

3D Printer Die Spring, 2pcs 20mm OD 35mm Long Spiral Stamping Light Load Compression Mould Die Springs for 3D Printer Electric Part, Blue

Key Features

• Hole Diameter(Outer Diameter) 20mm/0.79"; Inner Diameter (tolerance +0.5mm) 10mm/0.39"; Free Length 35mm/1.38" (+/- 2mm); Max Compression Rate 40%; Maximum Load 530N
• Color Blue; Load Type Light Load; Material Spring Steel; Surface Treatment Spray Paint
• Rectangular section, closed-end design. Die springs are primarily used in die machinery equipment, for plastic injection 3D printer electric part.
• Made of spring steel material, the surface is blue painted, not easy to rust, and more durable.
• Package Content 2pcs x Compression Die Spring

Product Description

Description

1. Rectangular section, closed-end design. Die springs are primarily used in die machinery equipment, for plastic injection 3D printer electric part.2. The loading grade of die springs in various colors (from lightest load to extra heavy load): yellow, blue, red, green, brown.3. Made of spring steel material, the surface is blue painted, not easy to rust, more durable.Specification:Product Name: Compression Die SpringLoad Type: Light LoadColor: BlueHole Diameter(Outer Diameter): 20mm/0.79"Inner Diameter (tolerance +0.5mm): 10mm/0.39"Free Length: 35mm/1.38" (+/- 2mm)Max Compression Rate: 40%Maximum Load: 530NMaterial: Spring SteelSurface Treatment: Spray Paint

Package Content

2pcs x Compression Die Spring
