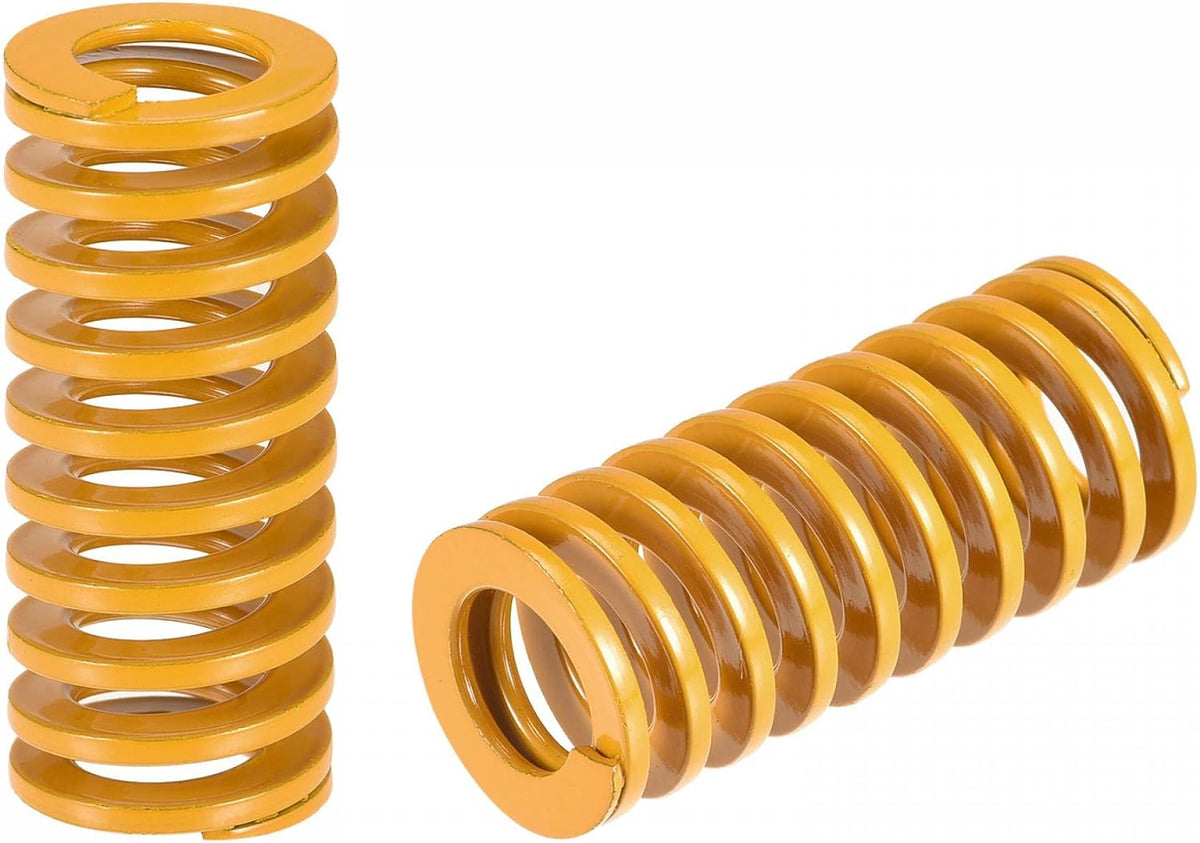

3D Printer Die Spring, 20mm OD 45mm Long 2pcs Spiral Stamping Light Load Compression Mould Die Springs for 3D Printer Electric Part, Yellow

Key Features

• Hole Diameter(Outer Diameter) 20mm/0.79"; Inner Diameter (tolerance +0.5mm) 11mm/0.43"; Free Length 45mm/1.77" (+/- 2mm); Max Compression Rate 50%; Maximum Load 314N
• Color Yellow; Load Type Light Load; Material Spring Steel; Surface Treatment Spray Paint
• Rectangular section, closed-end design. Die springs are primarily used in die machinery equipment, for plastic injection 3D printer electric part.
• Made of spring steel material, the surface is yellow painted, not easy to rust, and more durable.
• Package Content 2pcs x Compression Die Spring

Product Description

Description

1. Rectangular section, closed-end design. Die springs are primarily used in die machinery equipment, for plastic injection 3D printer electric part.2. The loading grade of die springs in various colors (from lightest load to extra heavy load): yellow, blue, red, green, brown.3. Made of spring steel material, the surface is yellow painted, not easy to rust, more durable.Specification:Product Name: Compression Die SpringLoad Type: Light LoadColor: YellowHole Diameter(Outer Diameter): 20mm/0.79"Inner Diameter (tolerance +0.5mm): 11mm/0.43"Free Length: 45mm/1.77" (+/- 2mm)Max Compression Rate: 50%Maximum Load: 314NMaterial: Spring SteelSurface Treatment: Spray Paint

Package Content

2pcs x Compression Die Spring

Specifications
