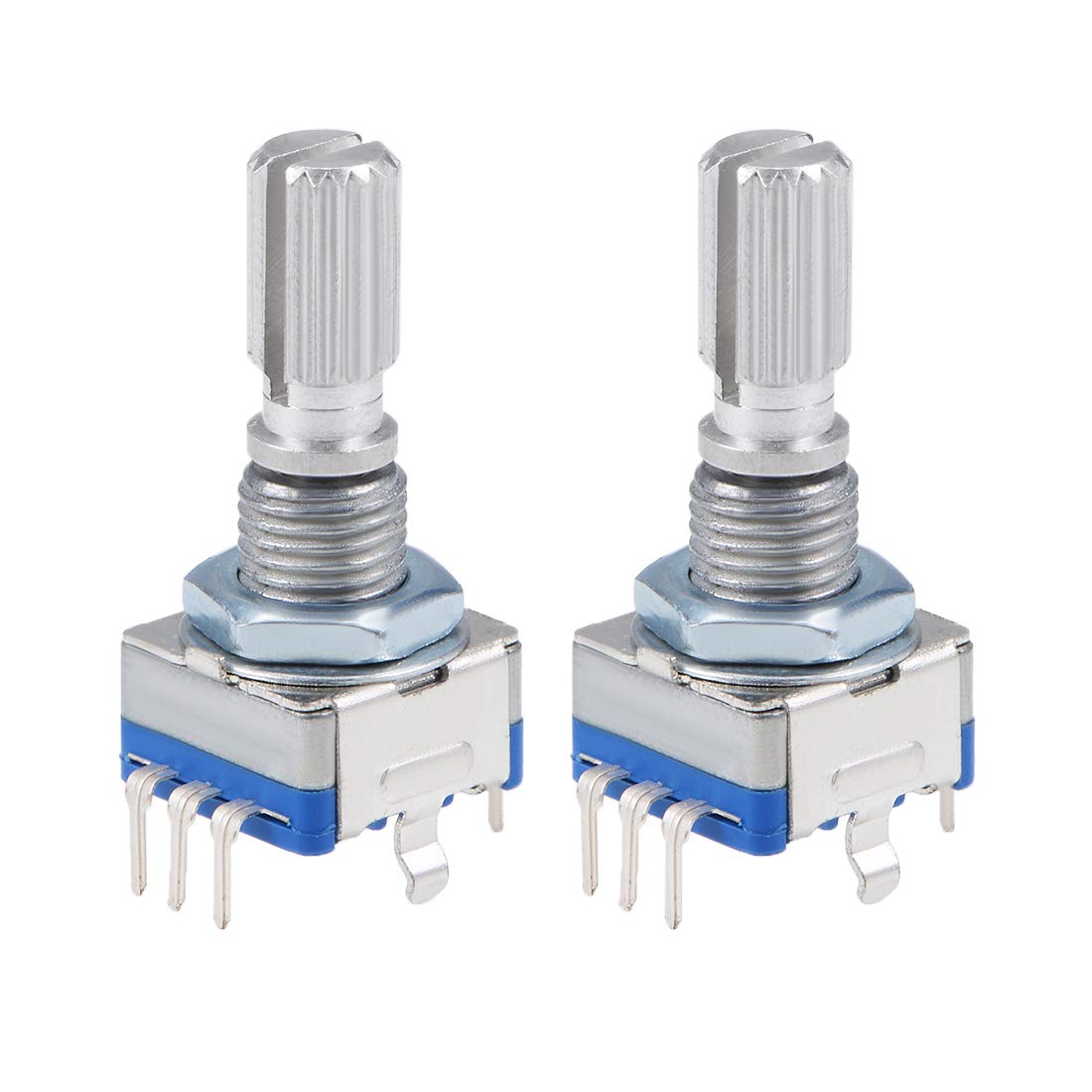

360 Degree Rotary Encoder Code Switch Digital Potentiometer EC11 5 Pins 20mm 2pcs

Key Features

• Type Encoder code with Switch; Adjustment method 360 Degree; Number of pulses 20; Pin Numbers 7(5 working signal pins & 2 mounting pins); Rated Voltage 5 Volt.
• Shaft Diameter 6mm/0.24"; Shaft Height 20mm/0.79"; Thread Diameter 6.8mm/0.27"; Total Dimension 15mm x 12.5mm x 30mm / 0.59" x 0.49" x 1.18"(L*W*H).
• In the forward rotation, the A line phase leads the B line phase; when reversed, the B line phase leads the A line phase. The phase relationship and number of rotations of AB can be identified using a simple digital logic circuit (exclusive OR gate and D flip-flop).
• By rotating the rotary encoder can be counted in the positive direction and the reverse direction during rotation of the output pulse frequency, unlike rotary potentiometer count, this rotation counts are not limited. With the buttons on the rotary encoder can be reset to its initial state, that starts counting from 0.
• Applications Industrial control, robots, photographic lenses, computer input devices. circuit board design dimming and sound 3D printer LCD display, etc. ( CD players, for volume & on/off control or data selection by LED or LCD display; ..)

Product Description

Description

A rotary encoder, also called a shaft encoder, is an electro-mechanical device that converts the angular position or motion of a shaft or axle to digital output signals.Rotary encoders are used in a wide range of applications that require monitoring or control, or both, of mechanical systems, including industrial controls, robotics, photographic lenses, computer input devices.

Specifications

Adjustment method: 360 DegreePin Numbers: 7Number of digits: 20 digitsRated Voltage: 5 VoltShaft Diameter: 6mm/0.24"Shaft Height: 20mm/0.79"Thread Diameter: 6.8mm/0.27"Total Dimension: 15mm x 12.5mm x 30mm / 0.59" x 0.49" x 1.18"(L*W*H)

Note

Avoid storing the products in a place at high temperature and high humidity.
