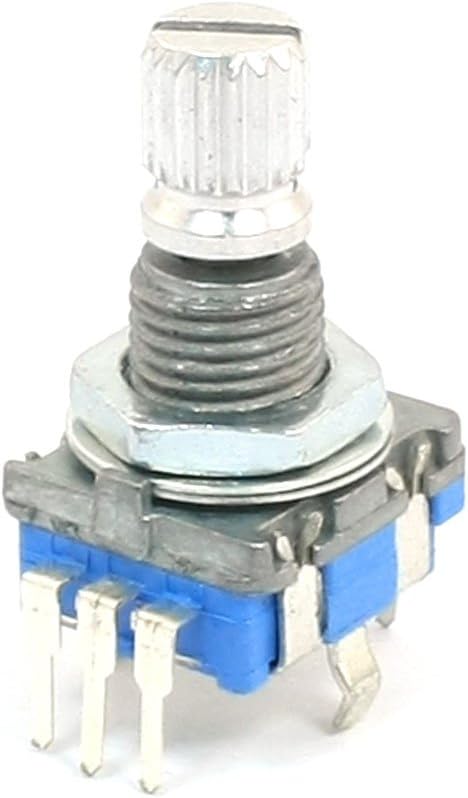

360 Degree 20 Detents 5Pin Digital Rotary Encoder Momentary Switch

Key Features

• Product Name Rotary Encoder w Push Button Switch;Action Type Momentary;ShaftMovementDirection 360 Degree
• Detent Points 20;Shaft Diameter 6mm/ 0.24";Shaft Length 15mm/ 0.59"
• Pin Numbers 5;MountingThreadDiameter 7mm/ 0.28";Features Knurled Shaft
• Base Size(Pin not Included) 14 x 12 x 6mm/ 0.55" x 0.47" x 0.24"(L*W*T);Total Height 26mm/ 1";Material Plastic, Metal
• Color Blue,Silver Tone;Weight 6g;Package Content 1 xRotary Encoder w Push Button Switch

Product Description

These are continuous rotary encoder switch with a built in push button switch (push to operate). Can be used for data entry as with modern in CD players, for volume & on/off control or data selection by LED or LCD display. Applications: Industrial control, robots, photographic lenses, computer input devices.
