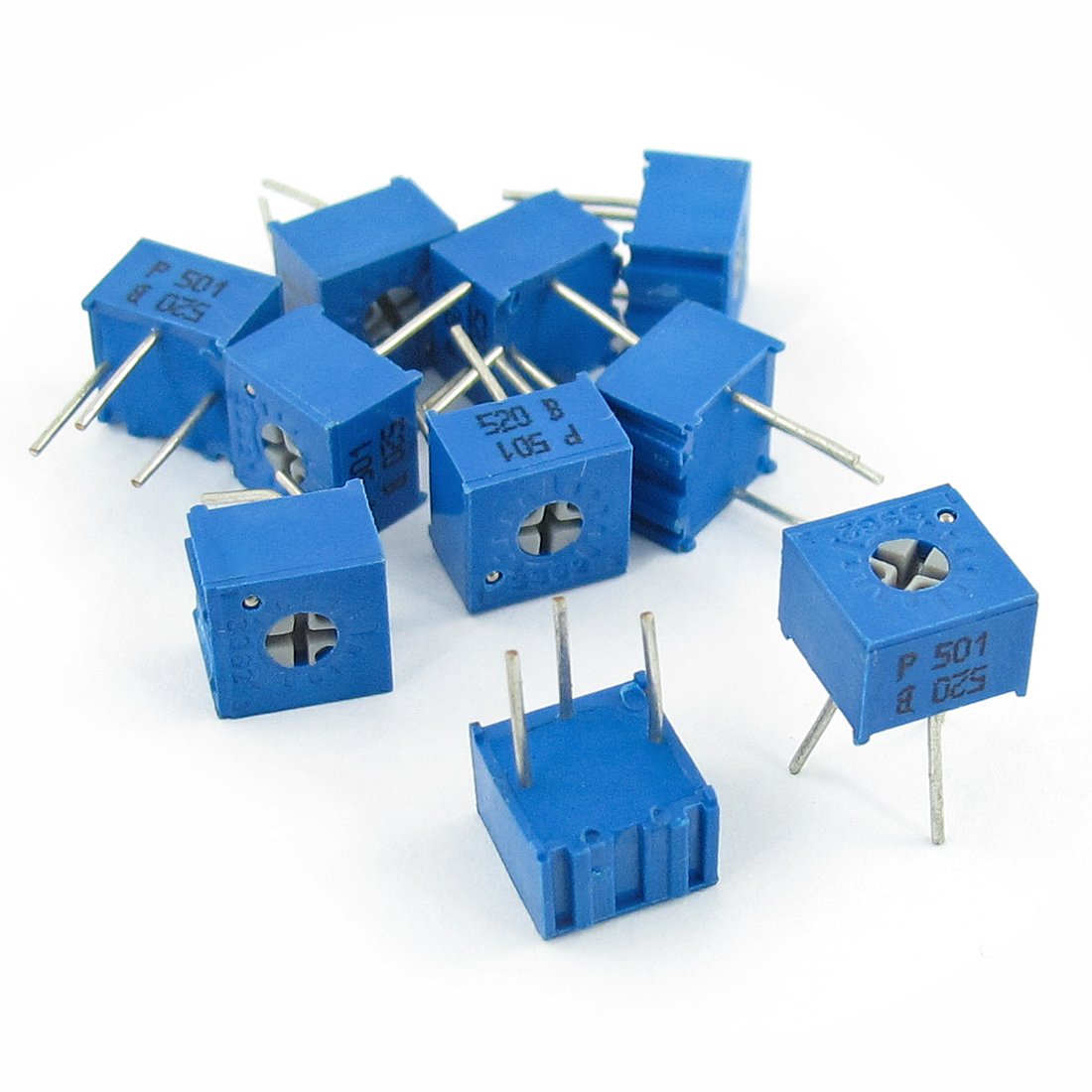

3362P-1-501 500 Ohm 500V Trimmer Variable Resistor Potentiometers 10 Pcs

Key Features

• Product Name Cermet Potentiometer;Model 3362P-1-501;Withstand Voltage 500V;Rated Power 1/2 W
• Resistance Value 500 Ohm;Tolerance ±10%;Adjustment Type Top Adjustment;Mounting Type Through Hole(DIP)
• Turn Number Single;Resistive Material Cermet;Termination Style PC Pin
• Temperature Coefficient ±100ppm/°C;Square Body Size 6.8 x 6.8mm/ 1/4" x 1/4" (L*W);Total Length 11mm/ 7/16"
• Color Blue;Weight 4g;Package Content 10 x Cermet Potentiometer

Product Description

A common element in electronic devices is a three-terminal resistor with a continuously adjustable tapping point controlled by rotation of a shaft or knob.Cermet Resistive Material trimming potentiometer for device interior or Printed circuit boards which adjustable the resistance less.Through hole DIP mounting type.Single turn design cermet potentiometer, squre linear

Specifications
