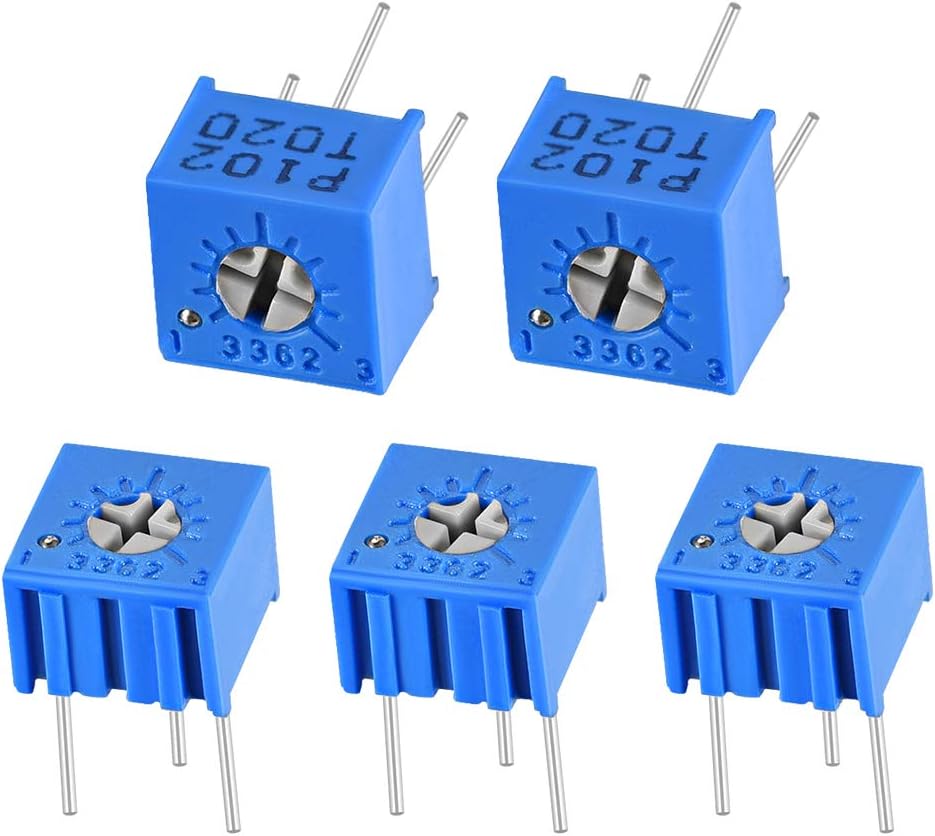

3362 Trimmer Potentiometer 1K Ohm Top Adjustment Horizontal Variable Resistors 5Pcs

Key Features

• 1. Model 3362P-101, Resistance Value 1K Ohm, Tolerance+/-10%
• 2.Top Adjustment,linear change and Size 7 x 7 x 11mm, Mounting TypeThrough Hole(DIP).
• 3. General used in radio, alarm, air conditioning, communication products, security,etc.
• 4. Main used to adjust voltage (including DC voltage and signal voltage) and current, can be used as voltage divider, rheostat, current controller
• 5. ApplicationApply for PCB or DIY. Long life, with soft centering, resistance, linear diversification

Product Description

Description

1.Top Adjustment;linear change2.Application:Apply for PCB or DIY.3.Main used to adjust voltage (including DC voltage and signal voltage) and current, can be used as voltage divider, rheostat, current controller Specification:Product Name: Carbon Film Trimmer PotentiometerModel: 3362P-102Resistance Value: 1K OhmPower Rating: (315 volts max), 0.5W at 70C, 0W at 125CTolerance:+/-10%PIN Mumber:3Size:7 x 7 x 11mmMounting Type:Through Hole(DIP)

Package Content

5 x Trimmer Potentiometer
