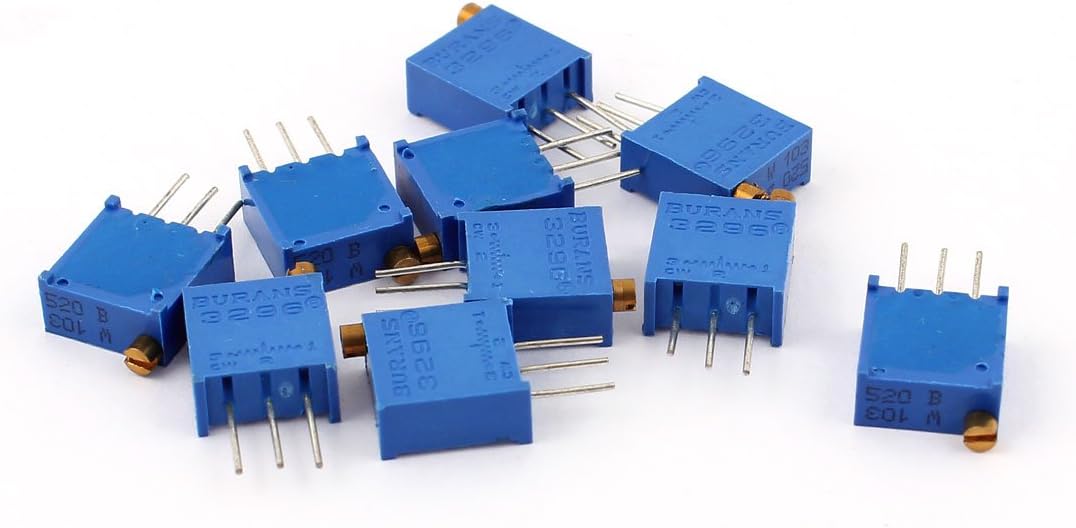

3296W-103 10K Ohm Trim Pot Potentiometer Variable Resistors 10Pcs

Key Features

• Product Name PotentiometerVariable Resistors;Type 3296W-103;Resistance 10K ohm
• Tolerance +10%;Withstand Voltage AC 640V;Power Rating ,315 volts mas 0.5W at 70C, 0W at 125C
• Temperature Range -55C to +125C;Temperature Coefficient +250%ppm/C;Temperature Variation 55C, 30min, +125C
• Vibration 10~500Hz, 0.75mm,6h;Collision 390m/s2, 4000cycles;Total Size 9.5 x 4 x 12mm/0.37" x 0.16" x 0.47"(L*W*H)
• Color Blue;Weight 9g;Package Content 10 xPotentiometerVariable Resistors

Product Description

A common element in electronic devices is a three-terminal resistor with a continuously adjustable tapping point controlled by rotation of a shaft or knob.Cermet Resistive Material trimming potentiometer for device interior or Printed circuit boards which adjustable the resistance less.Through hole DIP mounting type.Single turn design cermet potentiometer, squre linear

Specifications
