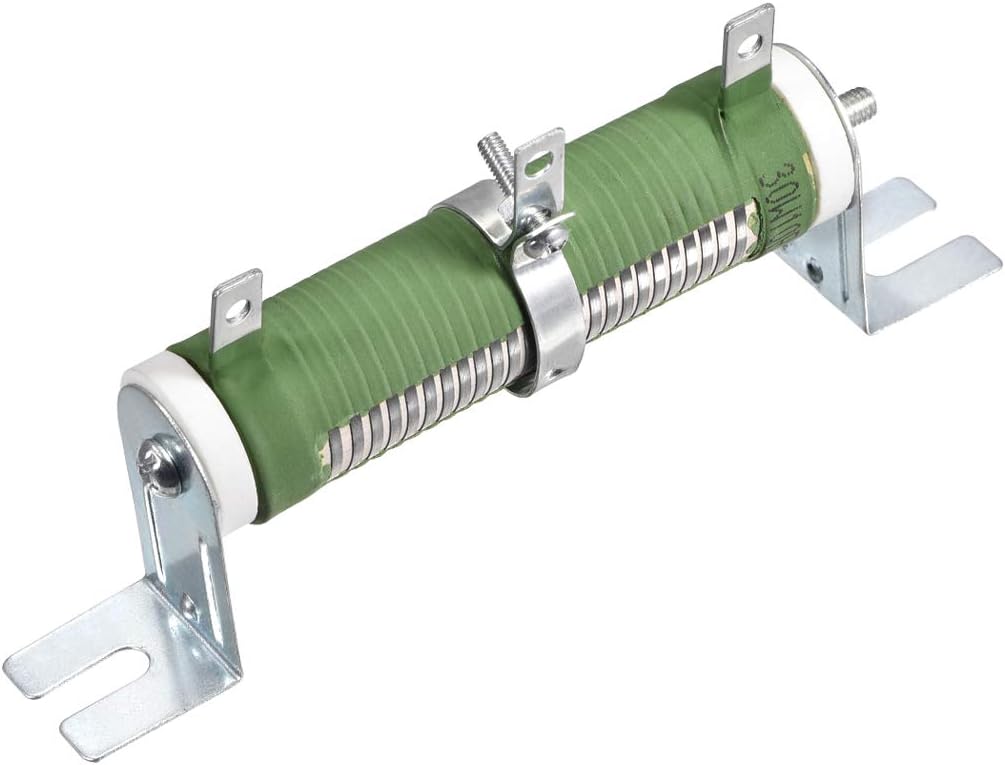

30W 10 Ohm Wire Wound Tubular Resistor Tube-Type Variable +/-5% Tolerance

Key Features

• [FEATURES] - Type Adjustable Type; With the compact structure and heat dissipation design, a capability of overload has been built.
• [SPECIFICATION]- Rated Power 30W; Resistance 10R Ohm; Resistance Tolerance +/-5%.
• [ADVANTAGE]- Metal wire is wound on the tube coated with non-flammable material, good dissipation, high stability and long life. Wire Wound Resistor owns high stability and accuracy. Moreover, it was used for various application because of the wide resistance range.
• [BEST CHOICE]High precision, high power, high precision of resistance, High temperature resistance, low noise during operation, stable and reliable, can withstand high temperature and long service life.
• [WIDELY - USED]- This variable wire wound resistor is widely used in power supply, transducer, elevators, arena audio and high requirement equipment industry. aging, load, simulation load test and inverter. Consumption of brakes, cranes, etc.

Product Description

Product description

Features

1. Metal wire is wound on the tube coated with non-flammable material, good dissipation, high stability and long life. 2. Applications of wirewound resistors are similar to those of composition resistors with the exception of the high frequency. Wide application:This variable wire wound resistor is widely used in power supply, transducer, elevator, arena audio and high requirement equipment industry.

Specifications

Product Name : Wire Wound ResistorType : Adjustable TypeRated Power : 30WResistance : 10 OhmResistance Tolerance : +/-5%Surface Temperature Rise : less than 275℃ (527℉)Tube Size : 20 x 70mm/0.78 x 2.75 inches(D*H)Groove Size : 13 x 5mm/0.51 x 0.19 inches (L*W)Mounting Groove Distance: 107mm/4.21 inchesHole Diameter : 3.5mm/0.14 inches, 3mm/0.11 inchesTotal Size : 120 x 20 x 53mm/4.72 x 0.78 x 2.08 inches (L*W*H)

Package Content

1PCS x Wire Wound Resistor

Note

Please allow 1-3mm differs due to manual measurement.
