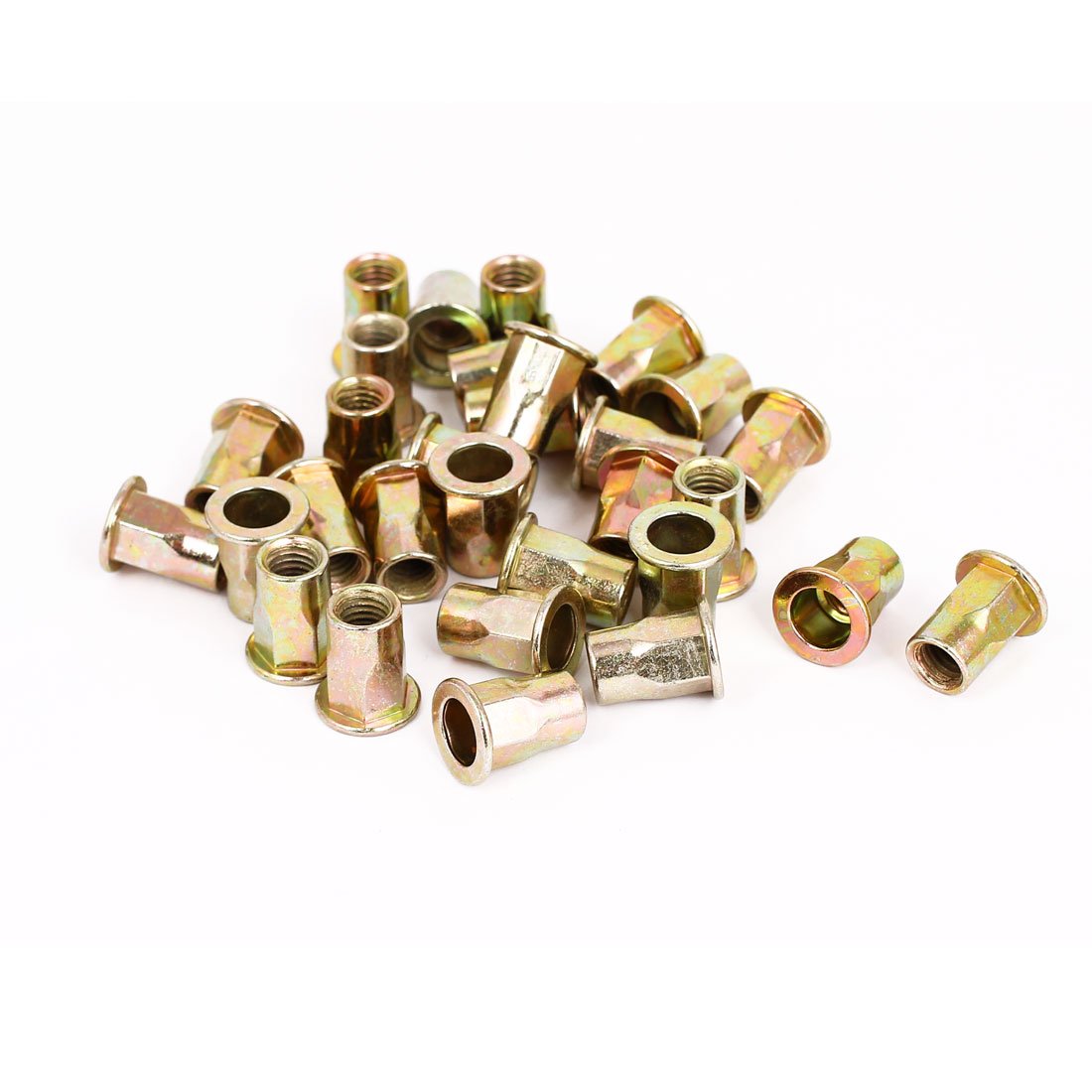

30pcs M8 Flat Head Open End Half Hex Body Blind Rivet Nuts Insert Nutserts

Key Features

• Thread Size (d) M8/ 0.3"; Product Name Rivet Nut; Material Carbon Steel, Zinc Plated
• Weight 189g; Package Content 30 x Rivet Nuts; Main Color Bronze Tone
• Flange Size (dk*k) 15 x 1.6mm/ 0.6" x 0.063" (D*Thickness); Thread Pitch 1.25mm
• Total Length (L) 18mm/ 0.7"; Hex Body Size (M) 11mm/0.43"
• Application Hole Size 9.5mm/ 0.37"; Round Body Diameter (D) 11mm/ 0.43"

Product Description

Description

Flat head cap screws, M8 female thread diameter, 18mm total length, zinc plated surface,carbon steel half hex body insert rivets nuts.These half hex body nutserts have large flange to provide increased strength in punched and drilled holes.Blind threaded inserts are designed to provide strong threads in thin panel sections. They are called blind because they can be installed from one side of the panel. Access to both sides is not required. That is why these fasteners are ideally suited for tubing, extrusion, and other similar types of applications.
