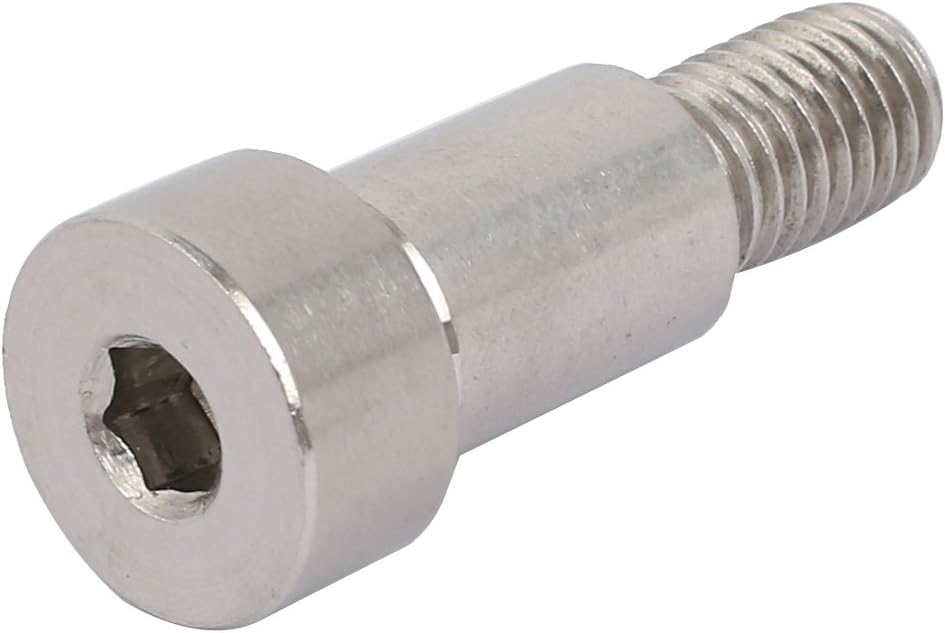

304 Stainless Steel Shoulder Bolt 13mm Shoulder Dia 20mm Shoulder Length M10 Thread

Key Features

• Product Name Shoulder Bolt; Package Content 1 x Shoulder Bolt; Main Color Silver Tone; Material 304 Stainless Steel
• Drive Type Hex Socket; Thread Coverage Fully Threaded; Shoulder Length 20mm / 0.8"; Shoulder Diameter 13mm / 0.5"
• Thread Size M10; Thread Length 16.4mm / 0.65"; Weight 47g
• Head Style Socket Cap; Head Size 9 x 18mm / 0.35" x 0.71" (T*D); Material Grade A2-70
• Specification Met ISO7379; Grade 4.8; Inner Hex Width 6mm / 0.24"

Product Description

Made of 304 stainless steel for maximum corrosion resistance and durability.Features socket cap head, hex socket drive.Shoulder Bolt can reduce rotation through lock.Widely used in textile, hydraulic, injection , machinery industry in different applications.Specially used for injection accessories.

Specifications
