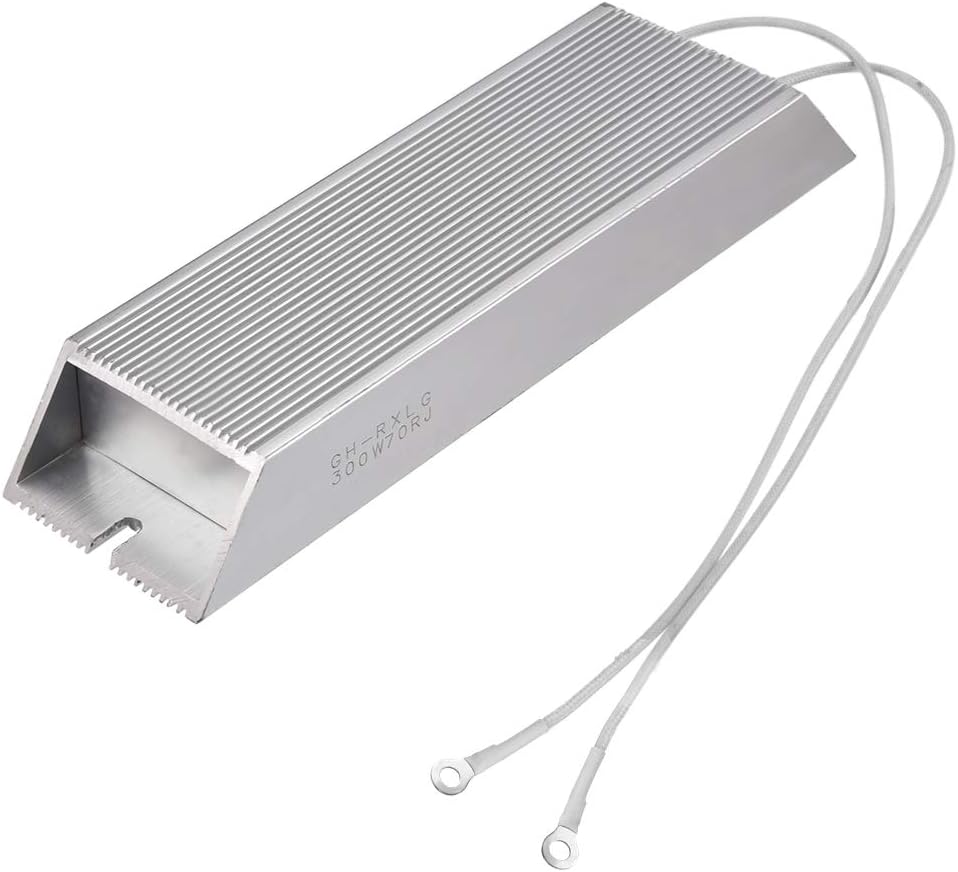

300W 70 Ohm Aluminum Housing Wirewound Braking Load Resistor for VFD Inverter

Key Features

• Power 300 Watt, Resistance 70 Ohm, Tolerance 5%.
• Cover with the corrugated aluminum case, which assures an optimization of heat dispersion.
• Reliable. Copper alloy resistance wires meet insulated ceramics, with the help of a compact wrap, form a high-grade wire wound resistor.
• Easy Connection. Two 30cm/11.8" leads with O-ring terminals.
• Trapezium Shape. The case was trapezium, and each size has a gap for screws fixing.

Product Description

Description

Power: 300 Watt, Resistance: 70 Ohm, Tolerance: 5%.Cover with the corrugated aluminum case, which assures an optimization of heat dispersion.Reliable. Copper alloy resistance wires meet insulated ceramics, with the help of a compact wrap, form a high-grade wire wound resistor.Easy Connection. Two 30cm/13.3" leads with O-ring terminals.Trapezium Shape. The case was trapezium, and each size has a gap for screws fixing.Specification:Power: 300WResistance: 70 ohmTolerance: J(5%)Length of lead: 34cm/11.8”Weight:602gWidth:60mm/2.36''Height:30mm/1.18''Board Length:215mm/8.46''Materials: Aluminum

Package Content

1 x 300W70RJ Aluminum Case Resistor
