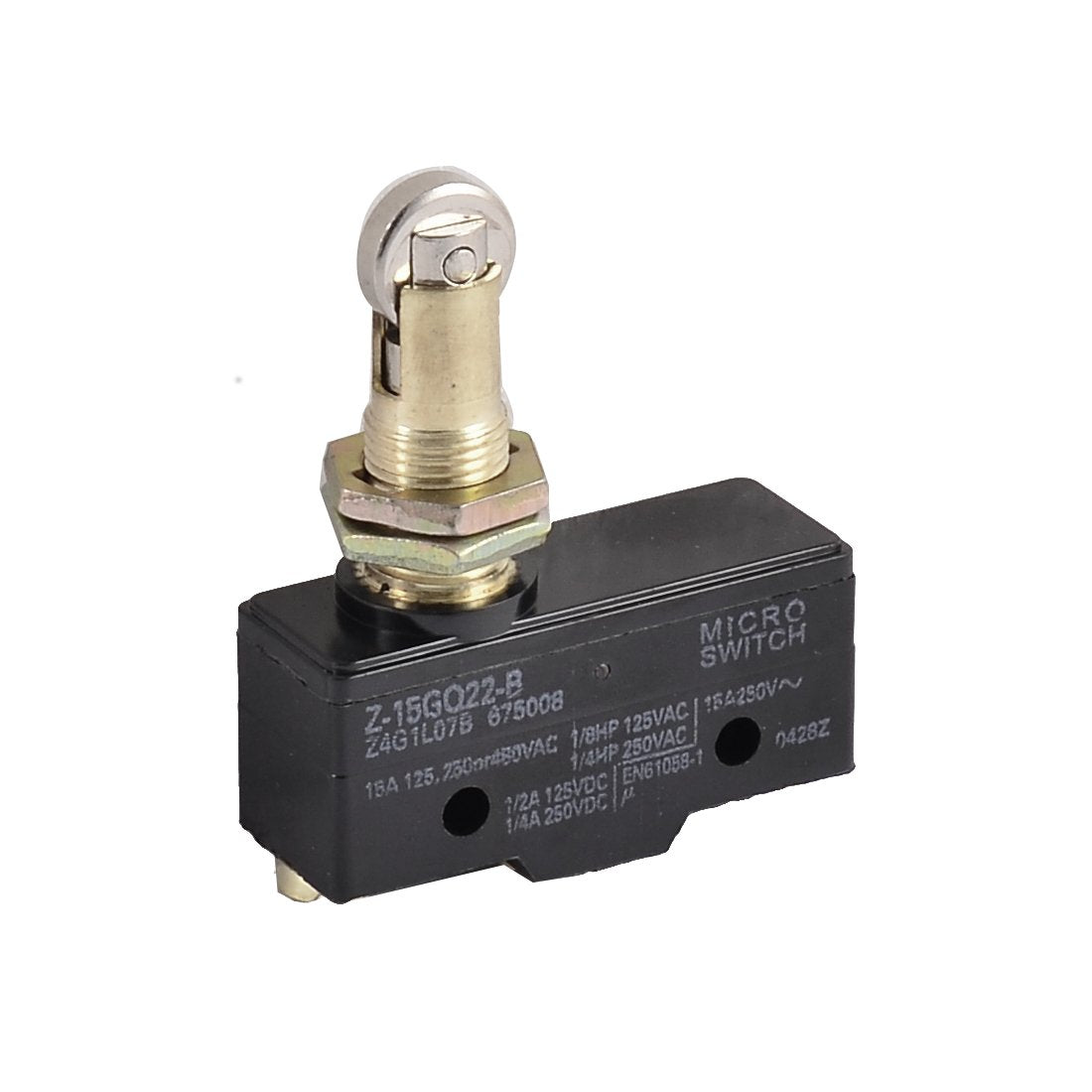

3 Screw Terminals Panel Mount Roller Plunger Basic Limit Switch

Key Features

• Product Name Limit Switch;Model No. Z-15GQ22-B;Mounting Type Panel Mount;Contact Configuration 1NO,1NC(SPDT)
• Terminals Screw Terminal;Actuator Type Parallel Roller Plunger;Rating & Voltage AC 125V 250V 15A;DC 125/250V, 0.5A/0.25A DC 125/250V, 0.5A/0.25A
• Switch Body Size ~5 x 1.8 x 2.7cm / 1.97"x 0.7" x 1.1"(L*W*H);Fixing Holes Dia. ~0.4cm / 0.16";Distance Between Centers of Fixing Holes ~2.5cm / 0.98"
• Roller Actuator Size Height from Body (open) ~3.4cm / 1.34";Height from body (closed) ~2.8cm / 1.1" Height from body (closed) ~2.8cm / 1.1";Thread ~1.2 x 1.6cm / 0.47" x 0.63"(D*H) Thread ~1.2 x 1.6cm / 0.47" x 0.63"(D*H)
• Color Black & Gold Tone;Net Weight 55g;Package Content 1 x Limit Switch

Product Description

Note

please pay attention to the working voltage and check with the voltage of your place to make sure this limit switch can successfully work. 3 screw terminal. Applicable to both AC control circuits and DC control circuits. Designed to control the movement of a mechanical part. Typically utilized in industrial control applications to automatically monitor and indicate whether the travel limits of a particular device have been exceeded. Non-oem product.

Specifications
