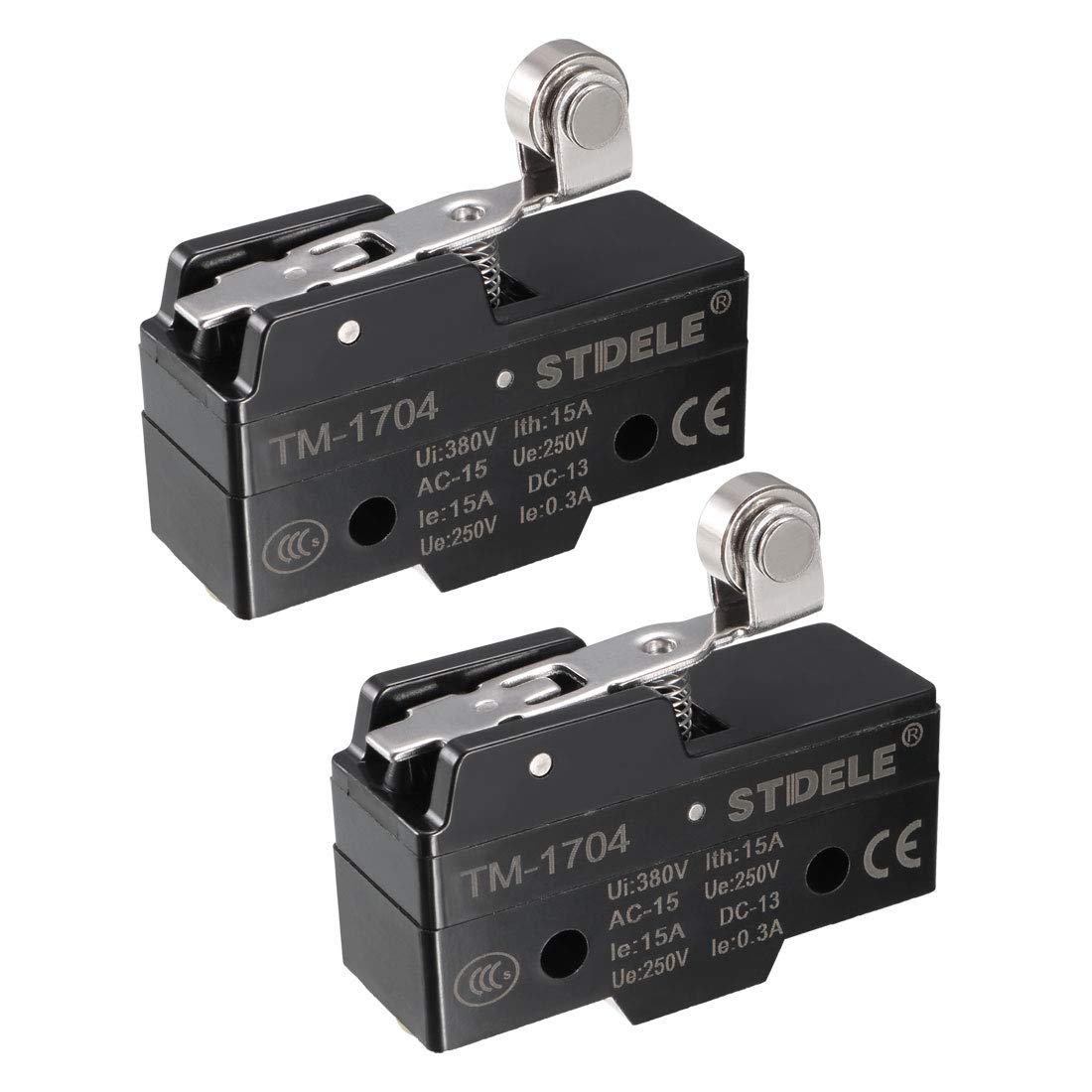

2PCS TM-1704 SPDT 1NO+1NC Panel Mount Short Hinge Roller Lever Type Micro Limit Switch Screw Terminals

Key Features

• Rating Ui 380V Ith15A. And the contact type is SPDT NO+NC
• Applicable to AC DC control circuits.Reliable for years
• High precision design, use easily.Designed to control the movement of a mechanical part.
• IP 40 Protection Degree. Which means this switch is available to tools & small wires (>1mm)
• Widly used in appliance, elctronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool etc...

Product Description

Features

Excellent accessibility, stable performance, practical and convenientThis Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and equipment.Also can be used in circuits, control circuit and auxiliary circuit for terminal limit protection. SpecificationProduct Name: Micro Switch;Model No.: TM-1704;Contact Form: SPDT NO+NCTermination Style: Screw Terminal;Terminal Number: 3Rating: Ui: 380V Ith:15A; AC-15 Ue: 250V Ie: 15A; DC-13 Ue: 250V Ie: 0.3A;Protection degree: IP62Overall Size: 50x45x18mm/1.97x1.77x0.71inch(L*W*H)Fixing Holes Dia.: 4mm/0.16inch;Net Weight : 76g; Package Content2 x Microswitch

Specifications
