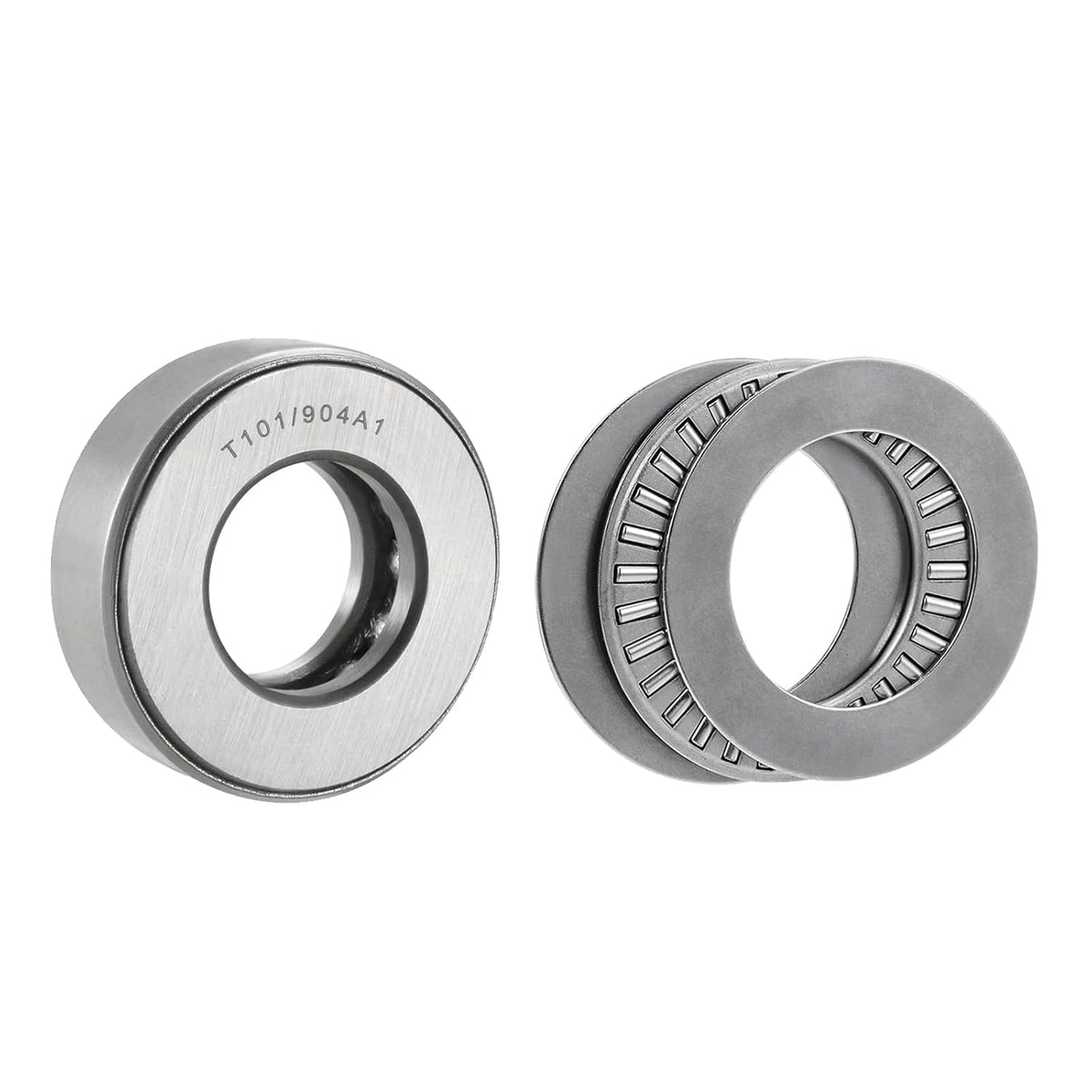

2pcs T101/904A1 Thrust Tapered Roller Bearings, TC1625+2TRA Needle Roller Thrust Bearings

Key Features

• Size - T101/904A1 (Bore 1.01", Outer Diameter 2", Width 5/8"); Bearing Model TC1625 (I.D.=1", O.D.=1-9/16", Thickness=5/64"), Washer Model TRA1625
• Material - Chromium steel rollers for heat tolerance and durability under heavy loads; Steel cage guides and evenly spaced rollers for reduced friction, vibration, and noise
• Features - Needle Roller Thrust Bearings can accommodate axial loads in one direction only
• Washers - Combined with 2 washers for applications where adjacent machine components cannot serve as raceways
• Package Content 1 x T101/904A1, 1 x TC1625+2TRA

Product Description

Description

These Needle Roller Thrust Bearings provide a high degree of stiffness within a minimum space. It has a smaller cross-section than a standard thrust bearing for use in restricted spaces.These bearings accommodate heavy peak loads due to the small diameter deviation of the rollers within one assembly.Thrust Bearings can be combined with washers in applications where adjacent components cannot serve as raceways.Tapered roller thrust bearings are designed to accommodate heavy axial loads and peak loads.The tapered roller thrust bearing is for use in high-load, moderate-speed applications that include conveyor systems.Specification:T101/904A1:Material: Chrome SteelBore Diameter: 1.01"Outside Diameter: 2"Total Thickness: 5/8"TC1625+2TRA:Needle Roller Material: Chromium Steel (GCr15)Cage Material: ST14 SteelBore Diameter (d): 1"Outside Diameter (D): 1-9/16"Bearing Thickness (T1): 5/64"Washer Thickness (T2): 0.8mmTotal Thickness: 3.584mmDynamic Load Capacity (Cr): 10.764kNStatic Load Capacity (Cor): 43.902kNMaximum Rotational Speed (Oil): 11000rpm

Package Content

1 x T101/904A11 x TC1625+2TRA
