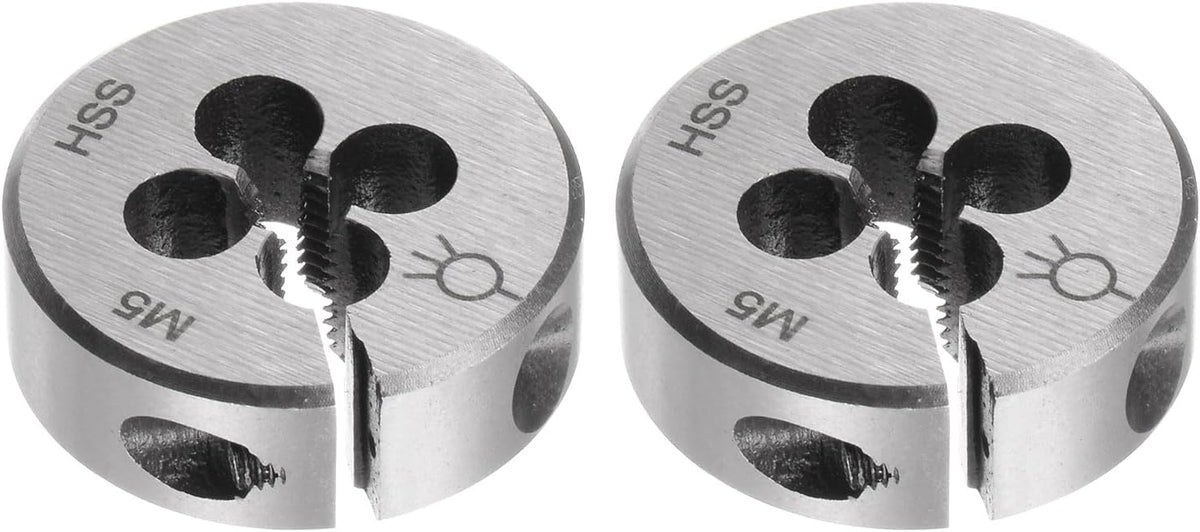

2pcs Round Threading Dies, Metric M5 x 0.8 Thread (Right Hand), Adjustable High Speed Steel (HSS) Screw Cutting Die Repair Tool

Key Features

• Round Threading Die Thread size M5 x 0.8 (right hand); outside diameter 25mm / 0.98"; thickness 10mm / 0.39"; accuracy class 6g. Made of M2 (6542) high-speed steel, it has high hardness, good toughness, wear resistance, and excellent cutting performance.
• Wide Applications Round dies can process, correct or clean the external threads, and is used for ordinary thread processing of stainless steel, aluminum alloy, cast iron, copper, iron, aluminum, plastic. Great for maintenance and repair work on pipes, boards and machinery.
• Features Conical locking hole, strong locking force, no loosening. Suitable for re-threading existing threads in hard materials like metal and making new threads in soft material such as plastic. The surface is lubricated with grease to prevent rust, the thread is clear and easy to repair.
• Easy to Use Threading die is used with die stock (also called die handle or die wrench). The positioning groove of the die should be aligned with the fastening screw in the middle of the wrench, and the screw should be inserted into the groove of the die and tightened. It needs to be reversed every 1/4~1/2 turn to facilitate the chip discharge from the chip hole.
• Tips Suitable lubricating oil should be added to the cutting edge of the die when tapping the thread. The end of the bar stock should be chamfered 1*45 degree, and the chamfer is too large to cut in. The bar diameter should be smaller ( about 0.05mm-0.15mm) than the nominal diameter of the required thread.

Product Description

Thread Size: M5 x 0.8 (Right Hand)Outside Diameter: 25mm / 0.98"Thickness: 10mm / 0.39"Accuracy Class: 6gMaterial: M2 (6542) High Speed Steel

Package Content

2pcs x Round Dies

Descriptions

The metric threading die is made of M2 (6542) high-speed steel, which has high hardness, good toughness, wear resistance, and excellent cutting performance.Round dies can process, correct or clean the external threads, and is used for ordinary thread processing of stainless steel, aluminum alloy, cast iron, copper, iron, aluminum, plastic. Great for maintenance and repair work on pipes, boards and machinery.Conical locking hole, strong locking force, no loosening. Suitable for re-threading existing threads in hard materials like metal and making new threads in soft material such as plastic. The surface is lubricated with grease to prevent rust, the thread is clear and easy to repair.The round threading die is used with die stock (also called die handle or die wrench). The positioning groove of the die should be aligned with the fastening screw in the middle of the wrench, and the screw should be inserted into the groove of the die and tightened. It needs to be reversed every 1/4~1/2 turn to facilitate the chip discharge from the chip hole.Suitable lubricating oil should be added to the cutting edge of the die when tapping the thread. The end of the bar stock should be chamfered 1*45 degree, and the chamfer is too large to cut in. The bar diameter should be smaller ( about 0.05mm-0.15mm) than the nominal diameter of the required thread. Excessive diameter can easily cause difficult cutting and cause damage to the die teeth.

Specifications
