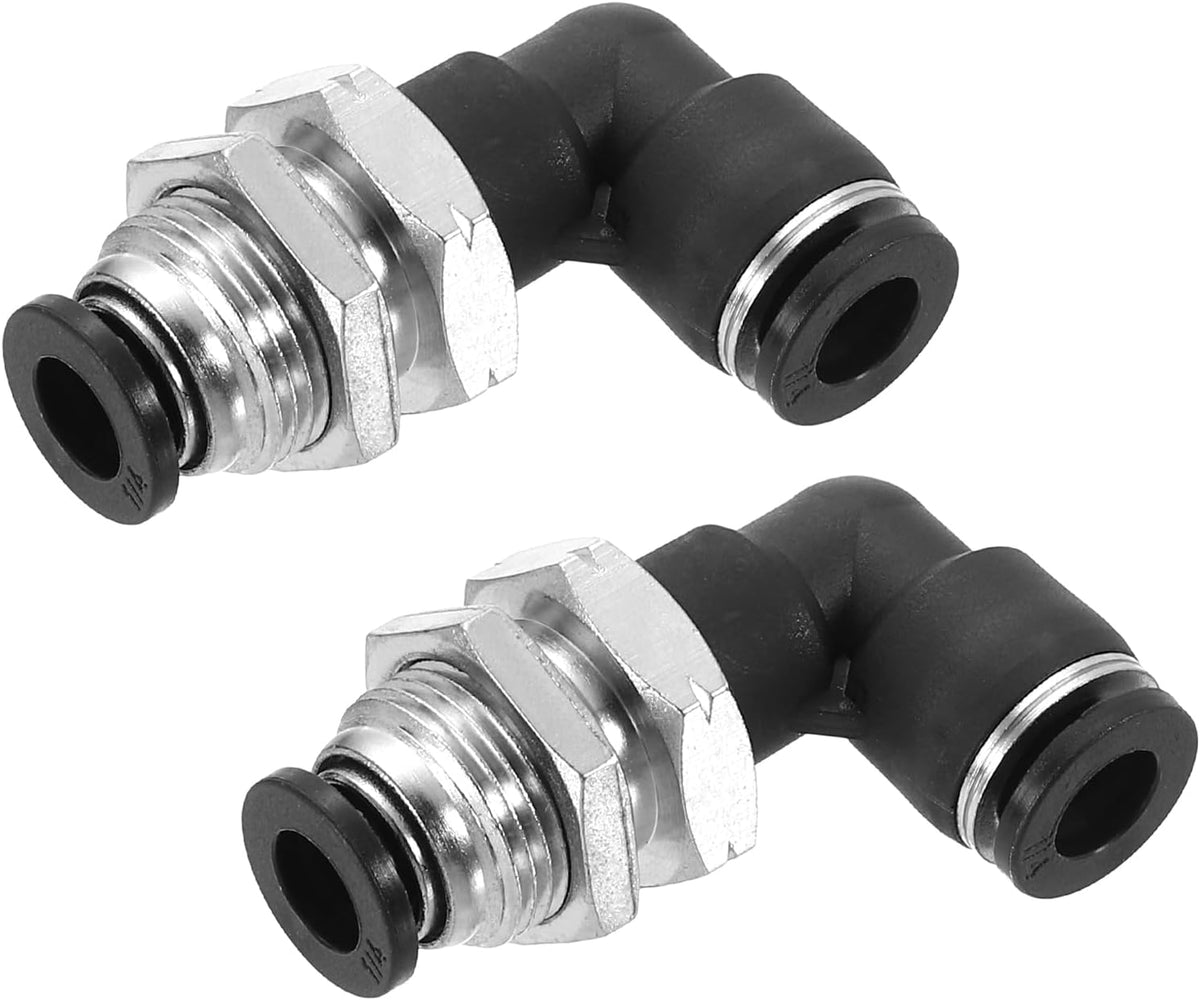

2Pcs Push to Connect Fittings, 1/4"x1/4" Tube OD Bulkhead 90 Degree Elbow Pneumatic Quick Connect Air Fitting for Hydraulic and Pneumatic Systems

Key Features

• [SIZE&PACKAGE] Operating Pressure 0-1.2 MPa; Operating Temperature 0-70 Degree Celsius; Thread Size 1/4"; Fit Tube OD 1/4"; Fitting Size 41 x 27.5 x 17mm/1.61" x 1.08" x 0.67"(L*W*H); Package 2Pcs x Elbow Push to Connect Fittings
• [MATERIAL] Pneumatic quick connectors are made of plastic and nickel-plated brass, and have the characteristics of flexibility, wear resistance, light weight, crack resistance, compression and corrosion resistance, good sealing performance, and long service life
• [DESIGN] The bulkhead elbow has a push-fit pipe fitting on one end and an external thread on the other. The cap of the fitting can be freely rotated 360 degrees to adjust the angle during installation
• [INSTALLATION] The push-in connection pipe fitting is easy to install. First, cut the pipe flat, then put the pipe into the end of the fitting to prevent leakage. After inserting the pipe, try to pull the pipe. If the pipe cannot be pulled, it means it is connected. When loosening the pipe, make sure there is no pressure in the pipe, and then press the end cap evenly to the bottom
• [WIDE APPLICATION] Bulkhead connectors can be used to connect polyethylene, nylon, and PU pipes. Commonly used in low-pressure hydraulic and pneumatic systems, such as aircraft control, air horns, automotive assembly, and maintenance, etc

Product Description

Description

Material - Pneumatic quick connectors are made of plastic and nickel-plated brass, and have the characteristics of flexibility, wear resistance, light weight, crack resistance, compression and corrosion resistance, good sealing performance, and long service life.Design - The bulkhead elbow has a push-fit pipe fitting on one end and an external thread on the other. The cap of the fitting can be freely rotated 360 degrees to adjust the angle during installation.Installation - The push-in connection pipe fitting is easy to install. First, cut the pipe flat, then put the pipe into the end of the fitting to prevent leakage. After inserting the pipe, try to pull the pipe. If the pipe cannot be pulled, it means it is connected. When loosening the pipe, make sure there is no pressure in the pipe, and then press the end cap evenly to the bottom.Wide Application - Bulkhead connectors can be used to connect polyethylene, nylon, and PU pipes. Commonly used in low-pressure hydraulic and pneumatic systems, such as aircraft control, air horns, automotive assembly, and maintenance, etc.Specification:Material: Plastic, BrassColor: Black, SilverOperating Pressure: 0-1.2 MPaOperating Temperature: 0-70 Degree CelsiusThread Size: 1/4"Fit Tube OD: 1/4"Fitting Size: 41 x 27.5 x 17mm/1.61" x 1.08" x 0.67"(L*W*H)Package: 2Pcs x Elbow Push to Connect Fittings
