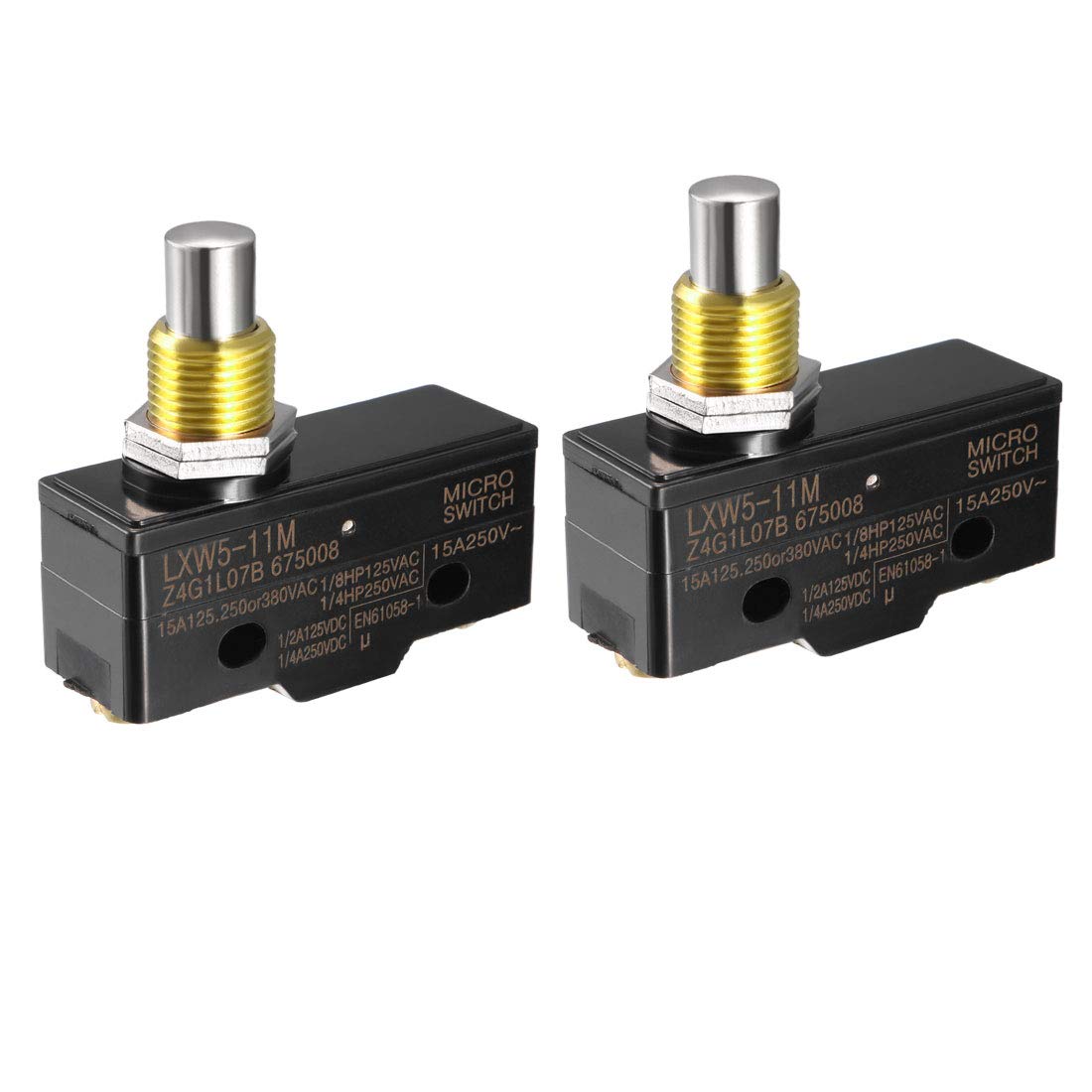

2PCS LXW5-11M 1NO + 1NC Panel Mount Snap Button Type Micro Limit Switches
Key Features
- Rating 15A 125.250or380VAV. And the contact type is 1NO, 1NC
- Applicable to AC DC control circuits.Reliable for years
- High precision design, use easily.Designed to control the movement of a mechanical part.
- IP 62 Protection Degree. Which means this switch is available to total dust ingress protection and water spray < 15 degrees from vertical.
- Widly used in appliance, elctronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool etc...
Product Description
Features
Excellent accessibility, stable performance, practical and convenientThis Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and equipment.Also can be used in circuits, control circuit and auxiliary circuit for terminal limit protection. SpecificationProduct Name: Micro Switch;Model No.: LXW5-11M;Contact Type: 1NO, 1NCMounting Type: Panel Mount;Actuator Type: Push Button ActionTermination Style: Screw Terminal;Terminal Number: 3Rating: 15A 125.250or380VAV; 1/8HP125VAC 1/4HP250VAC; 1/2A125VDC 1/4A250VDCProtection degree: IP62Overall Size: 50x50x18mm/1.97x1.97x0.71inch(L*W*H)Thread Diameter: 12mm/0.47inch;Net Weight : 86g; Package Content2 x Microswitch
Specifications
| Product Dimensions | 2.76 x 1.97 x 1.57 inches |
