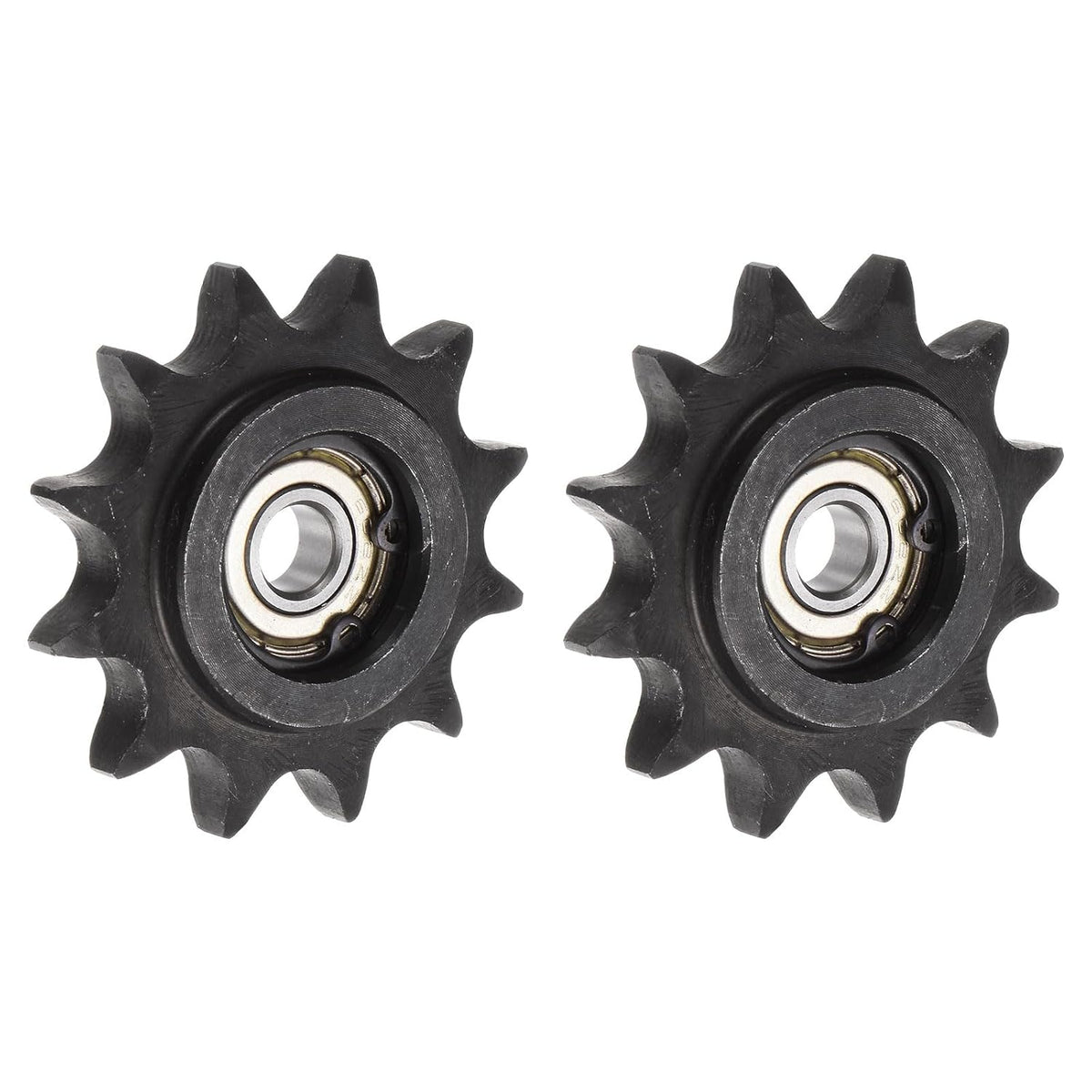

2pcs DIN(ISO) 08B Roller Chain Idler Sprocket 8mm Bore, 1/2" Pitch, Hardened 12 Tooth Tensioner Sprocket, Insert Single Bearing
Key Features
- Model For DIN(ISO) 08B Chain. Size 8mm Bore Idler Tensioner Sprocket 12 Tooth, 12.7mm (1/2") Pitch, 54mm Outside Diameter.
- Idler sprocket is a flat sprocket, with a precision bearing (608ZZ) that allows the sprocket to rotate freely. Idler sprockets are normally mounted in a fixed position on a fixed shaft.
- Made of quality #45 steel, which goes through a quenching process to harden the teeth. This enhances durability and reduces friction, resulting in a sprocket with high hardness, excellent wear resistance, and a long service life.
- The idler sprocket should not rotate at a greater speed than is allowable for drive sprockets of the same size. Every roller chain idler sprocket comes with strong teeth that can latch onto the chain. It is suggested that idler sprockets have at least three teeth in mesh with the chain.
- Suitable for a wide range of applications, including conveyor systems, agricultural machinery, industrial equipment, and more.
Product Description
Features1. Idler sprocket is a flat sprocket, with a precision bearing that allows the sprocket to rotate freely. Idler sprockets are normally mounted in a fixed position on a fixed shaft.2. The Idler sprocket should not rotate at a greater speed than is allowable for drive sprockets of the same size. Every roller chain idler sprocket comes with strong teeth that can latch onto the chain. It is suggested that idler sprockets have at least three teeth in mesh with the chain.3. The idler sprocket is made of quality #45 steel, which goes through a quenching process to harden the teeth. This enhances durability and reduces friction, resulting in a sprocket with high hardness, excellent wear resistance, and a long service life.4. Suitable for a wide range of applications, including conveyor systems, agricultural machinery, industrial equipment, and more..SpecificationsMaterial: #45 steelFinish: Quenching Tooth
Specifications
| Item Weight | 7.4 ounces |
| Product Dimensions | 0.5 x 0.31 x 2.13 inches |
